UNIMIG
UNIMIG VIPER 135 MULTI 3-IN-1 MIG TIG STICK WELDER + WELDING TORCH, MMA U11005K
UNIMIG VIPER 135 MULTI 3-IN-1 MIG TIG STICK WELDER + WELDING TORCH, MMA U11005K
Couldn't load pickup availability

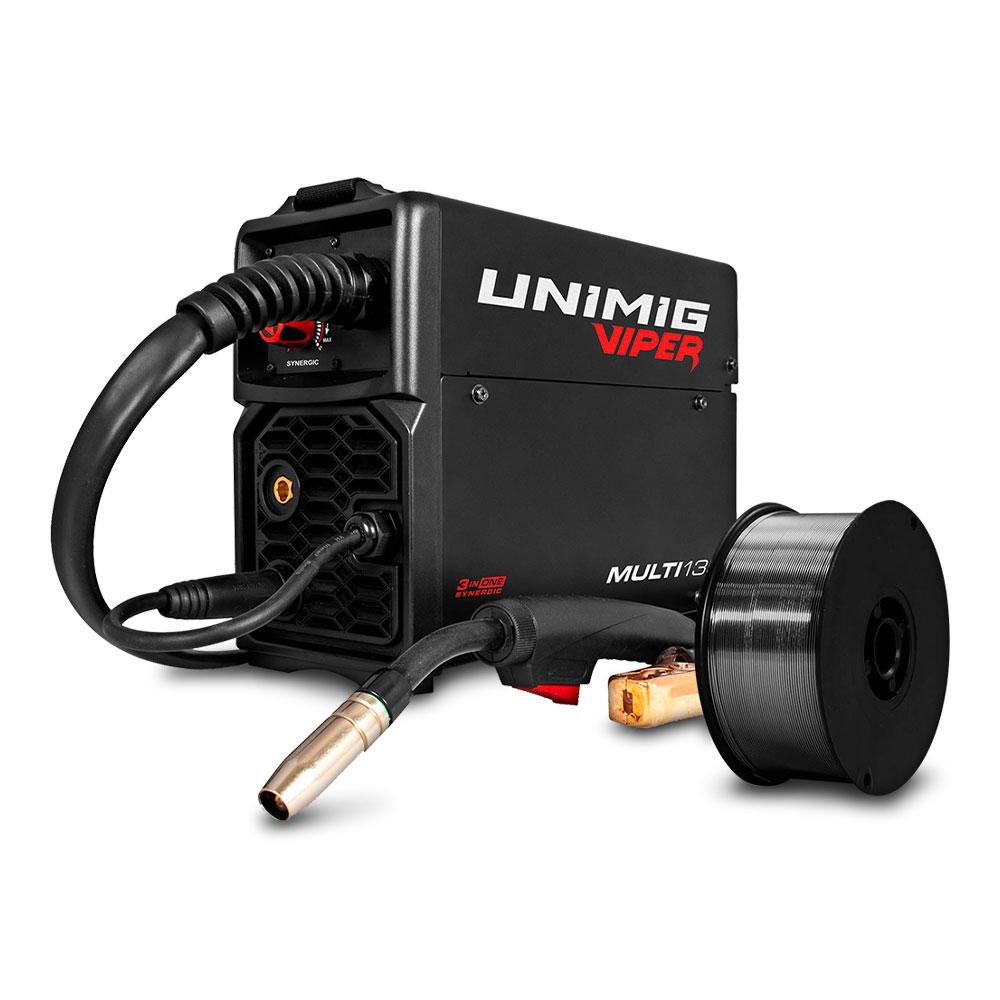

UNIMIG U11005K Viper 3-in-1 Multi 135 MIG/TIG/STICK Welder
The UNIMIG Viper 3-in-1 Multi 135 MIG/TIG/STICK Welder, featuresc clever Synergic MIG control takes the guesswork out of your settings. Simply select your wire size and adjust the Synergic power knob to the thickness of your material. The program works with 0.6, 0.8 and 0.9mm mild steel, stainless steel & flux-cored wires. Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere. This machine supports both gas-shielded MIG and gasless MIG wire, meaning you can easily run mild steel, stainless steel &  flux-cored MIG wire. Weighing just over 5kg, the VIPER MULTI 135 is ready to go anywhere you need it. Also included is a shoulder strap for extra comfort and portability. This three-in-one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is no need to swap between machines, saving you time and setup.
Includes:
- VIPER MULTI 135 MIG/TIG/STICK Welder
- 2m Direct Connect MIG Torch
- 2m Earth Clamp & Lead
- Electrode Holder
- 1kg E71T-GS 0.8mm Gasless Wire
Features:
- Synergic MIG controls for quick and easy weld setups
- 3-in-1 multi-process machine so you can MIG, TIG & STICK
- 10 amp plug, for use with any domestic outlet
- Supports both gas-shielded MIG and gasless MIG wire
- Light weight and portable
Suitable Materials:
- Mild Steel
- Stainless Steel
- Cast Iron
- Silicon Bronze
- Copper
Specifications:
- Primary Input Voltage: 240V Single Phase
- No Load Voltage: 68V
- Supply Plug: 10 Amp
- Rated Input Power: 4.15kVA
- Rated Output: 40/16V - 135A/21V
- Minimum Generator: 8.0kVA
- Effective Current (Ieff): 8.4A
- Protection Class: IP21S
- Insulation Class: H
- Power Factor: 0.68
- Dinse Connector: 10/25
- MIG Specifications:
- MIG Welding Current Range: 40-135A
- MIG Duty Cycle @ 40ºC: 15% @ 135A, 60% @ 65A, 100% @ 50A
- MIG Wire Size Range: 0.6-0.9mm
- MIG Wire Spool Size: 1kg
- MIG Welding Thickness Range: 1-6mm
- TIG Specifications:
- TIG Function Type: DC Lift Arc
- TIG Welding Current Range: 20-120A
- TIG Duty Cycle @ 40ºC: 15% @ 120A, 60% @ 60A, 100% @ 45A
- TIG Welding Thickness Range: 1-6mm
- STICK Specifications:
- STICK Welding Current Range: 20-120A
- STICK Duty Cyle @ 40ºC: 15% @ 120A, 60% @ 60A, 100% @ 45A
- STICK Electrode Range: 2.5-3.2mm
- STICK Welding Thickness Range: 1-6mm
- Dimensions (L x W x H): 353mm x 132mm x 250mm
- Weight: 5.2kg
Warranty:
- 2 Years Warranty Covered by UNIMIG
