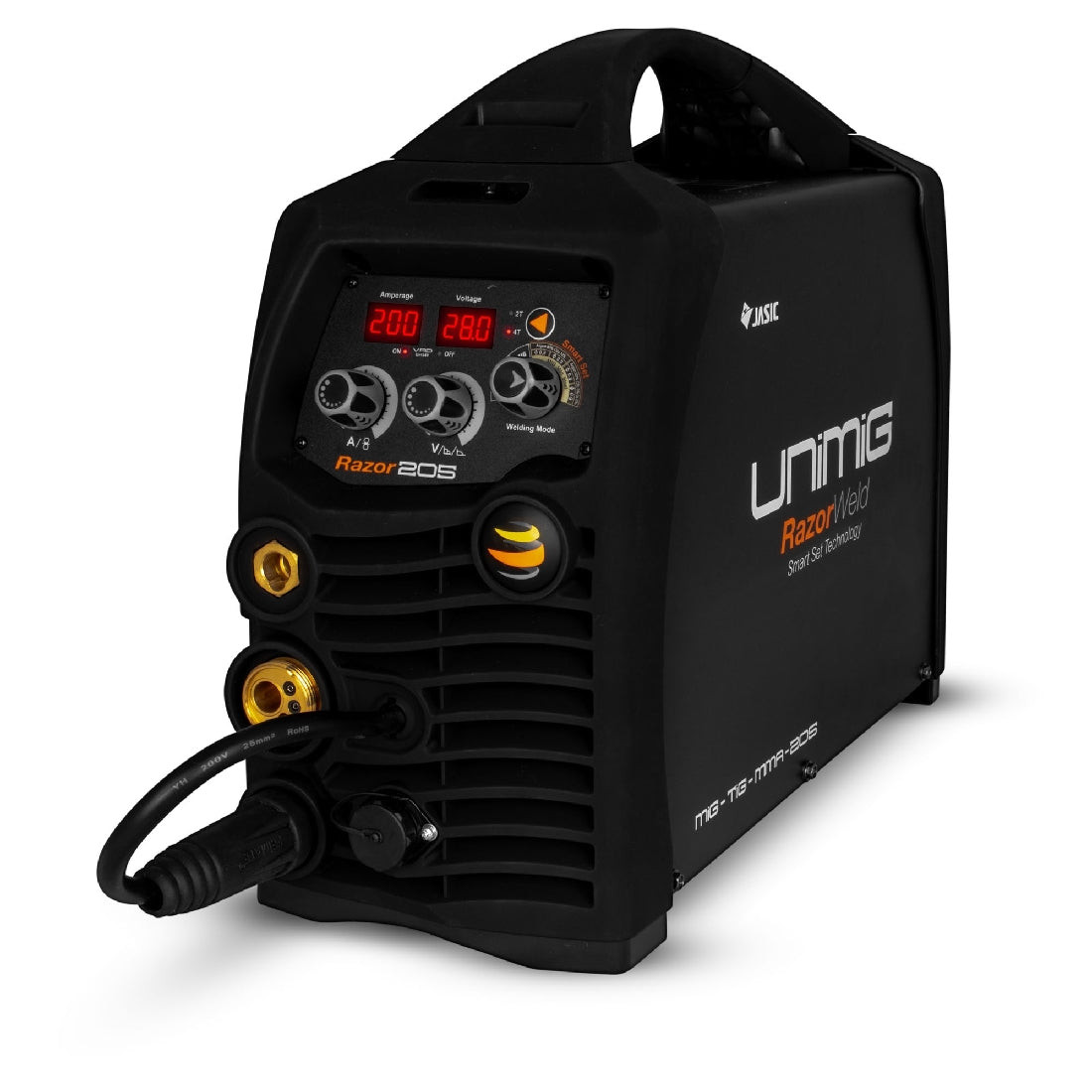

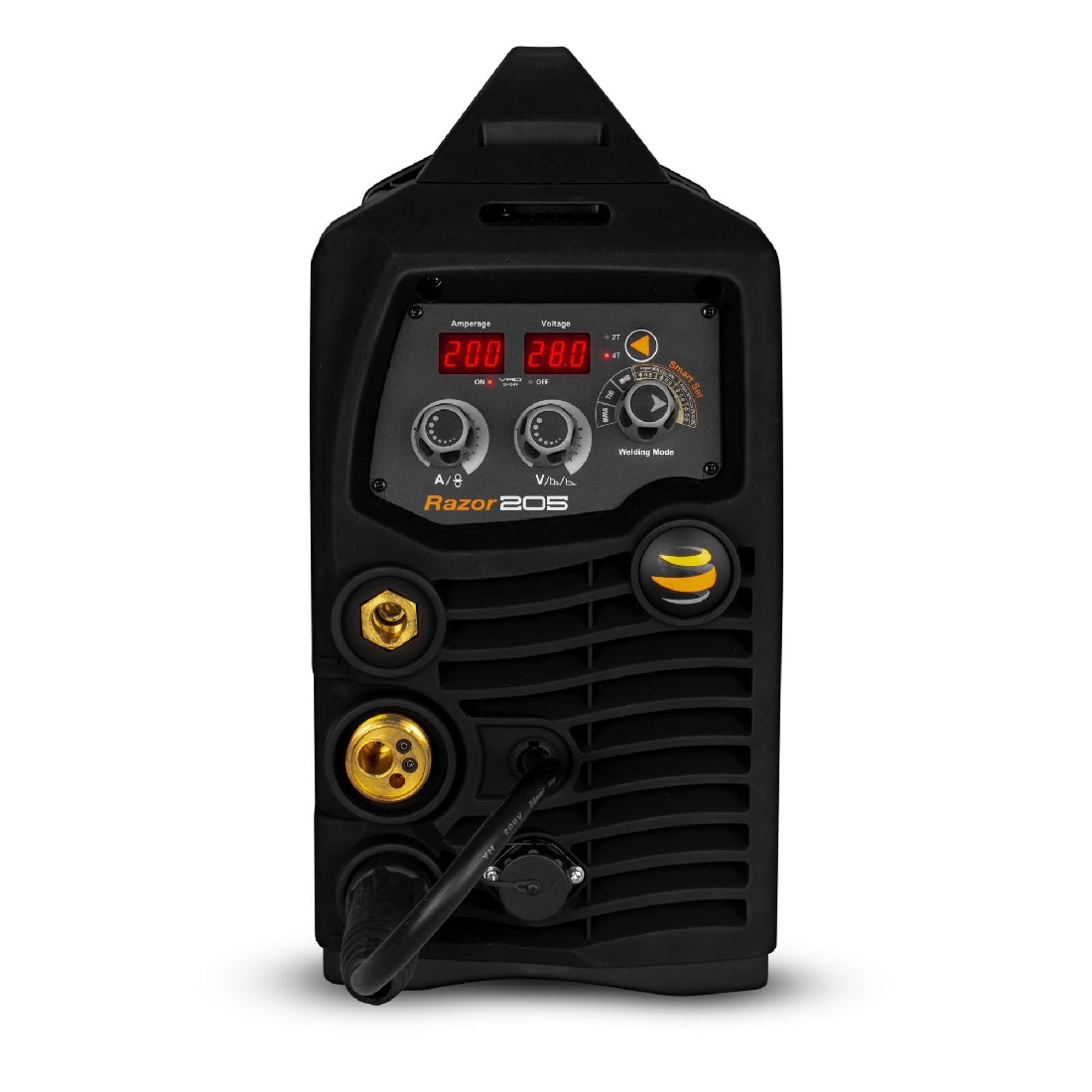

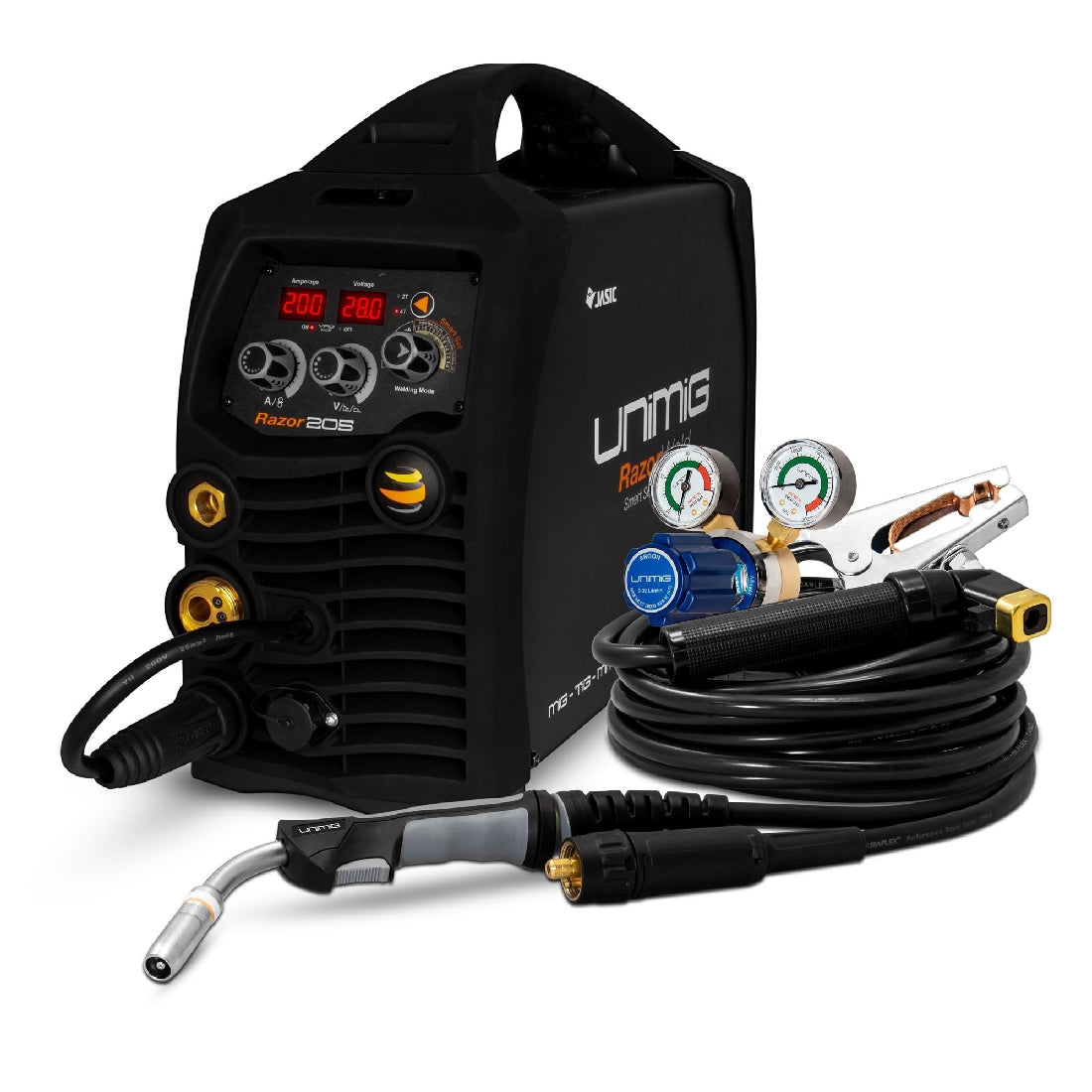

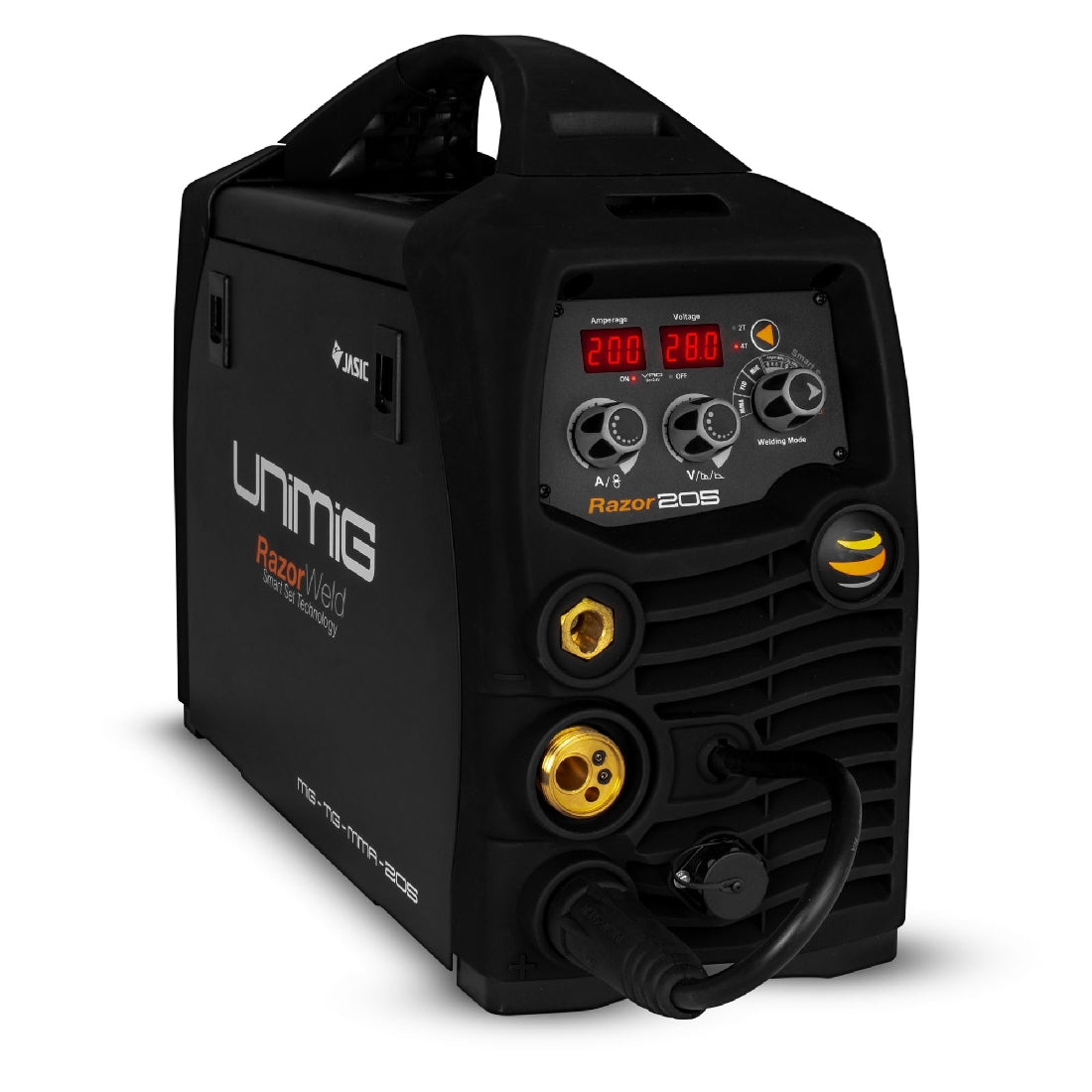

Unimig Razor 205 Smart Set Welder

The RAZOR™ 205 SMART SET™ is one of the easiest multi-process welders available, offering MIG, TIG and STICK welding functions. The SMART SET™ Synergic MIG technology takes the guesswork out of MIG welding, so you get more done in less time. With the inclusion of a Spool Gun connection and lightweight construction, the RAZOR™ 205 SMART SET™ goes from worksite to workshop with ease.

KUMJRRW205SSMIG





15 AMP PLUG

CONNECT TO A 15 AMP OUTLET.

SPOOL GUN READY

FOR SOFTER WIRES, SUCH AS ALUMINIUM.

SMART SET™ TECHNOLOGY

FOUR SYNERGIC MILD STEEL WELDING PROGRAMS.

GEARED WIRE DRIVE

FOR SMOOTHER WIRE FEEDING.

SMART SET TECHNOLOGY



The clever SMART SET™ Synergic MIG programs take the guesswork out of your settings. Simply select your wire size and gas mixture and the machine does the rest. The program works with both 0.8mm and 0.9mm mild steel wires.



MULTI PROCESS WELDING



This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.



GEARED WIRE DRIVE



This machine features a four geared roller drive unit, providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.



SPOOL GUN READY



This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.



PRODUCT WALKTHROUGH



Check out all of the features of the RAZOR 205 SMART SET in this product walkthrough.



• SPECIFICATIONS
• PACKAGE CONTENTS
• MANUALS & DOWNLOADS
• WARRANTY INFORMATION

Product No: KUMJRRW205SSMIG

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

9.4

Ieff (A)

15.0

RATED OUTPUT

30A/15.5V - 200A/24.0V

NO LOAD VOLTAGE (V)

53

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.7

MINIMUM GENERATOR (kVA)

11.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

3

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

30-200A

MIG DUTY CYCLE @ 40°C

20% @ 200A

MIG WIRE SIZE RANGE

0.6-1.0mm

MIG WIRE SPOOL SIZE

1kg / 5kg

MIG WELDING THICKNESS RANGE

1-10mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-200A

TIG DUTY CYCLE @ 40°C

35% @ 200A

TIG WELDING THICKNESS RANGE

1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-200A

STICK DUTY CYCLE @ 40°C

15% @ 200A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2mm - 12mm

SIZE & WEIGHT

DIMENSIONS (mm)

470x190x380mm

WEIGHT (kg)

12.5kg

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning
