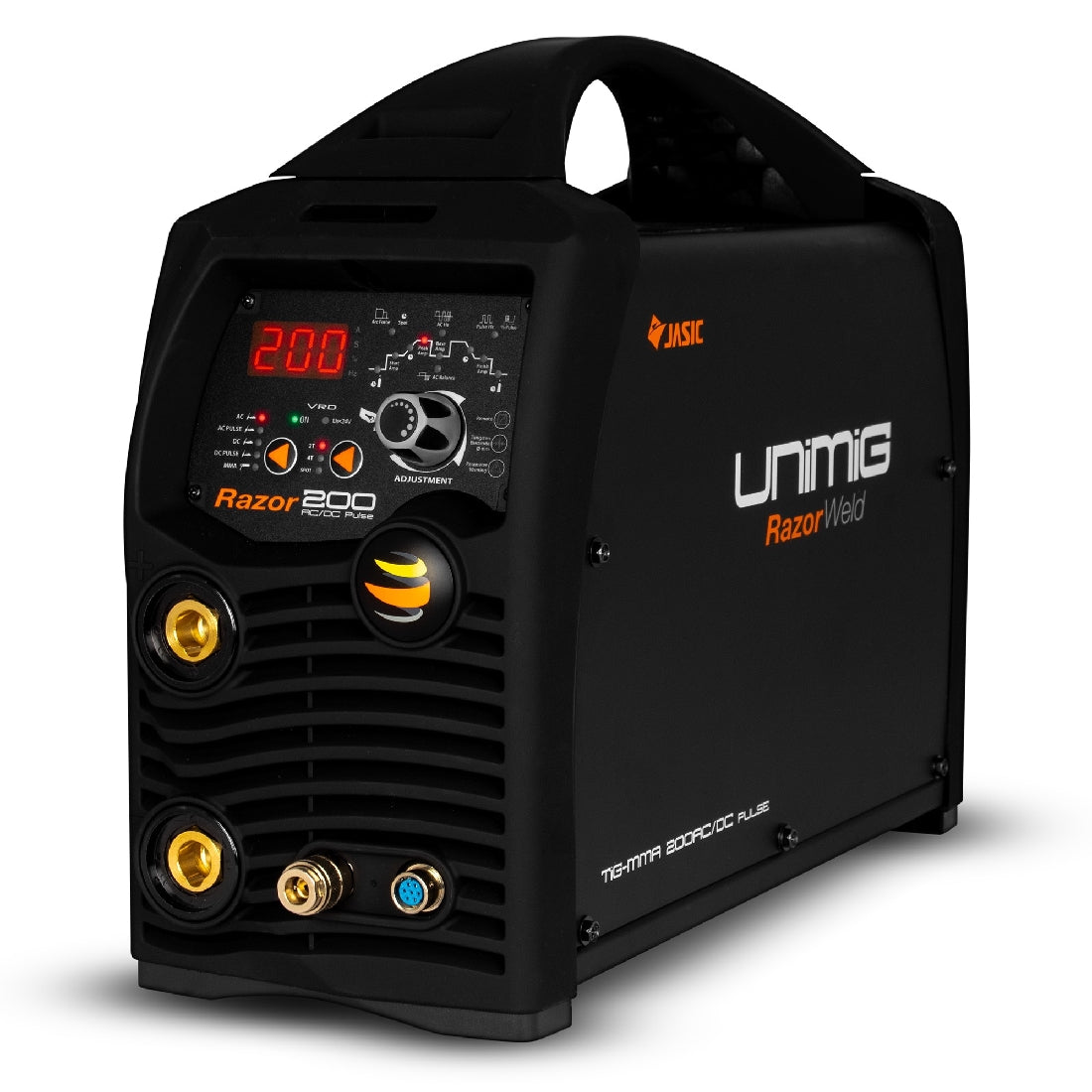

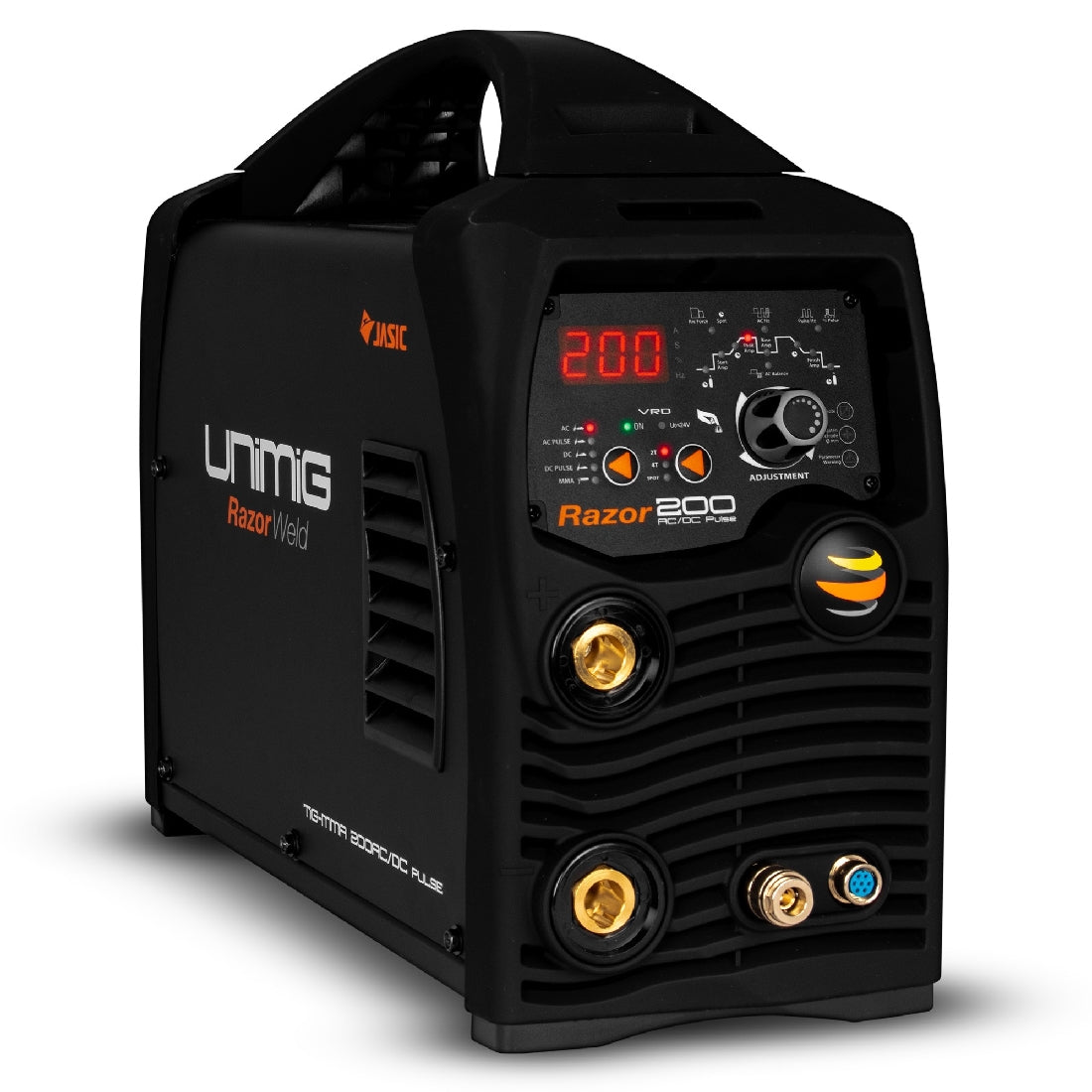

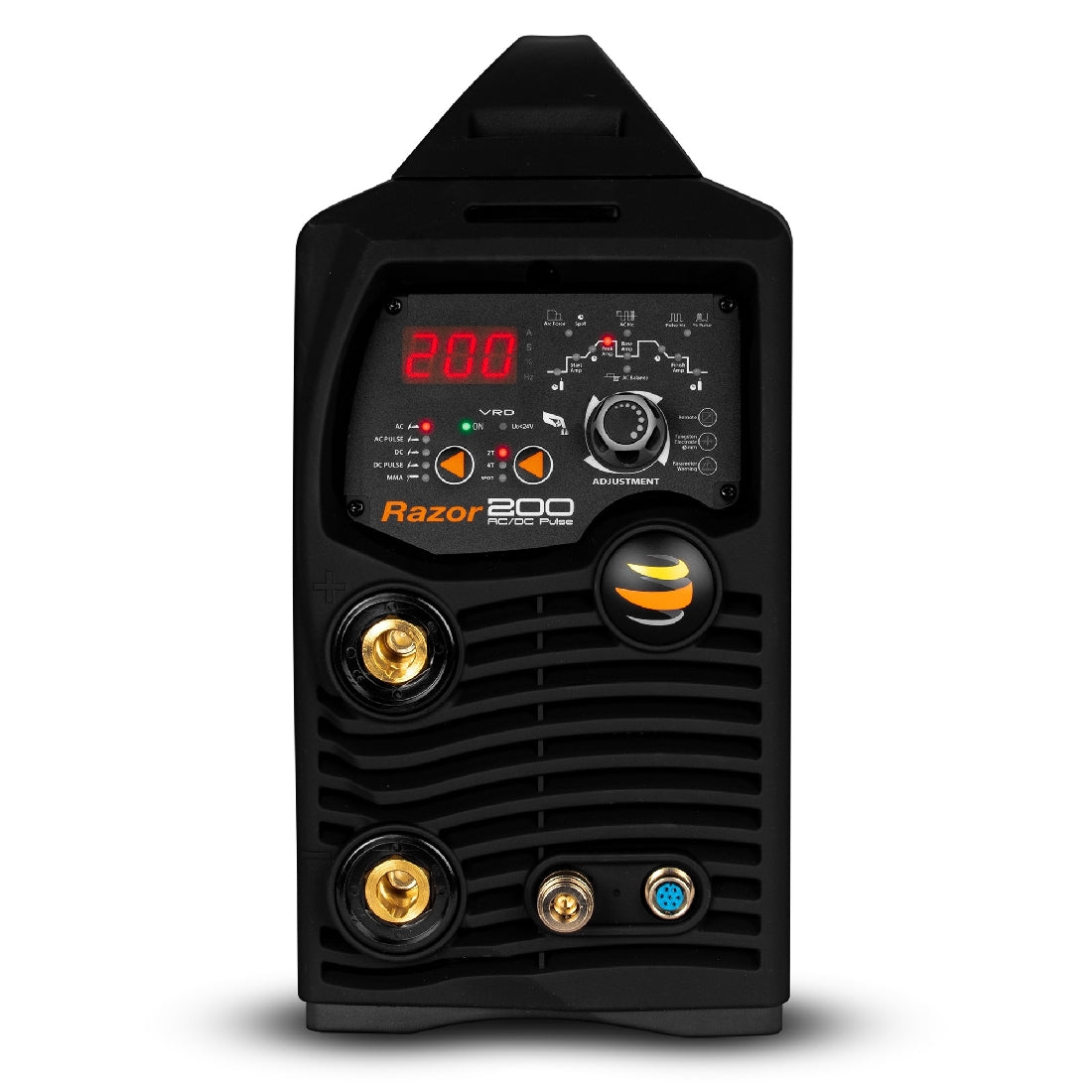

Unimig Razor Tig 200 Ac/dc With T2 Flex Torch

The RAZOR™ 200 AC/DC gives you full control over High Frequency AC/DC TIG welding for incredible results from start to finish. Fitted with a portable 15 AMP plug and Pulse TIG functions, this is your go-to professional unit that works a treat on any worksite.

Tailor your TIG settings with a wide range of controllable parameters including Pre Gas Time, Start Current, Up Slope and Down Slope Time, Finish Current Level and Post Gas Time.

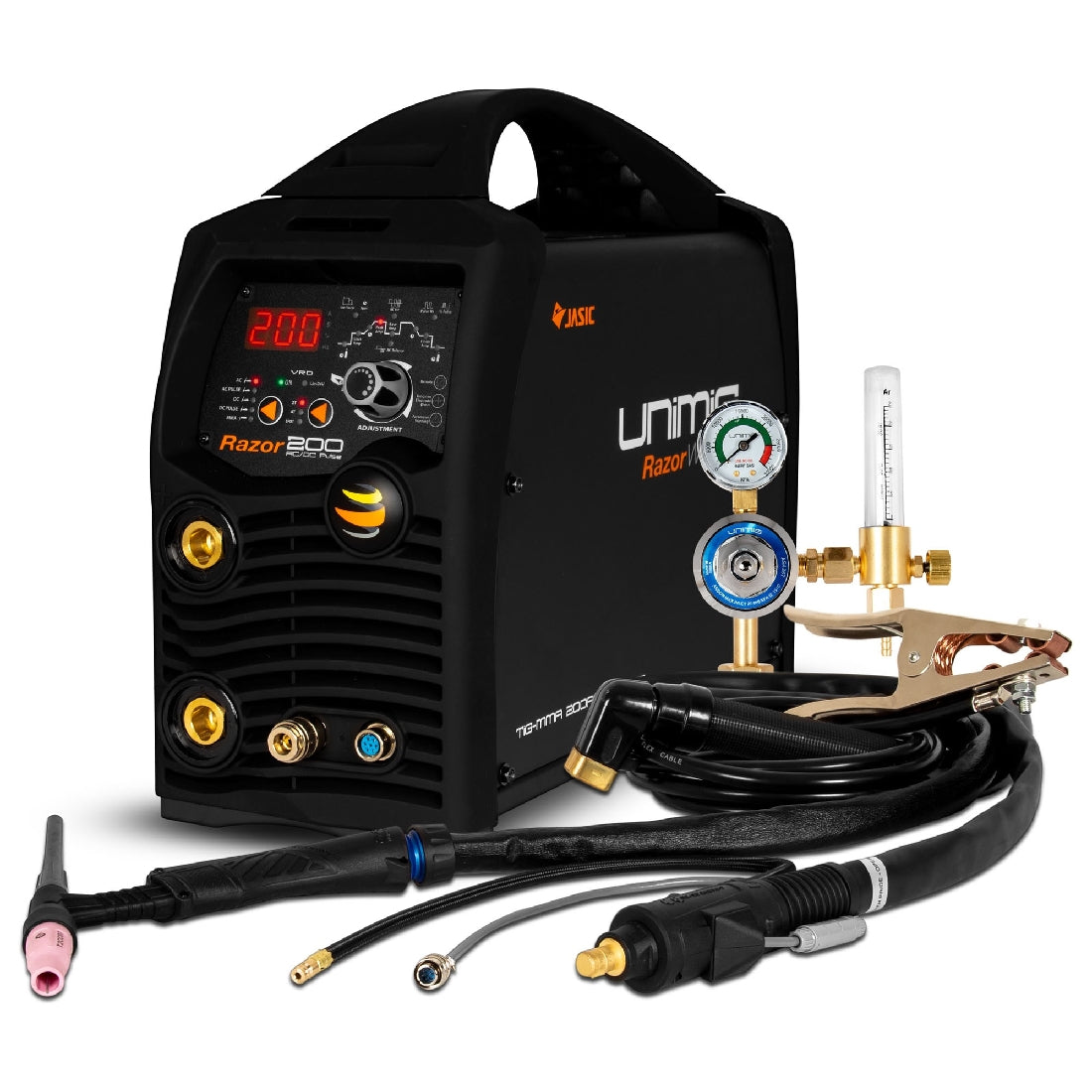

The all-new ARC TORCHOLOGY T2 TIG Torch comes standard with the RAZOR™ 200 AC/DC, offering up to 30% better power-to-weight ratio and longer consumable lifecycles. A Remote Foot Control can also be plugged into the machine for even more versatility.

KUM-M-RTIG200ACDC





15 AMP PLUG

CONNECT TO A 15 AMP OUTLET.

AC/DC HIGH FREQUENCY TIG

PERFECT FOR ALUMINIUM.

PULSE FUNCTION

MINIMISE DISTORTION ON THE WELDED MATERIAL.

FOOT CONTROL READY

EXTRA VERSATILITY AND CONVENIENCE.

ProductReview 2021 Award Winner



In case you hadn’t heard, our RAZOR 200 AC/DC is ProductReview’s 2021 Welding Category Award Winner. That’s right, our machine has everything you need. So if you’re looking to get into TIG but not sure which machine would be best? Maybe you’re thinking about upgrading from an older model, or need something more powerful? Then look no further. UNIMIG has the welder for you!



AC/DC HIGH-FREQUENCY TIG



High Frequency TIG (H/F TIG) gives you more control when starting and stopping the arc. The arc can be started without contacting the work piece reducing the risk of contaminating the tungsten or the weld.



PULSE TIG FUNCTION



Pulse TIG function allows you to control the heat, which in turn helps minimise distortion in the parent material. This is exceptionally useful on thin gauge materials.



FOOT CONTROL READY



This machine supports the connection of an external foot control for extra versatility and convenience while welding. This allows you to adjust your amperage hands-free to avoid disrupting your torch movement.



FEATURE VIDEO



Check out all the features on the RAZOR™ 200 AC/DC TIG Welder.



WELDING SETUP GUIDES



Need a hand setting up the RAZOR 200 AC/DC? Check out our helpful welding guide covering:

AC Welding Setup Guide

AC PULSE Welding Setup Guide

DC Welding Setup Guide

DC PULSE Welding Setup Guide

STICK Welding Setup Guide



RAZOR 200 AC/DC In-Depth Review



Little Aussie Rockets takes an in-depth tour of the RAZOR 200 AC/DC, and covers its features, performance and more.





• SPECIFICATIONS
• PACKAGE CONTENTS
• MANUALS & DOWNLOADS
• WARRANTY INFORMATION

Product No: KUM-M-RTIG200ACDC

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

6.0

Ieff (A)

15.0

RATED OUTPUT

5-200A

NO LOAD VOLTAGE (V)

9-68

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.7

MINIMUM GENERATOR (kVA)

9.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper, Aluminium, Zinc Alloys

WARRANTY (Years)

3

TIG SPECIFICATIONS

TIG FUNCTION TYPE

AC/DC HF TIG & AC/DC Pulse

TIG WELDING CURRENT RANGE

5-200A

TIG DUTY CYCLE @ 40°C

25% @ 200A

TIG WELDING THICKNESS RANGE

1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-160A

STICK DUTY CYCLE @ 40°C

30% @ 160A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

ARC FORCE

0-40

SIZE & WEIGHT

DIMENSIONS (mm)

426x162x326mm

WEIGHT (kg)

10kg
