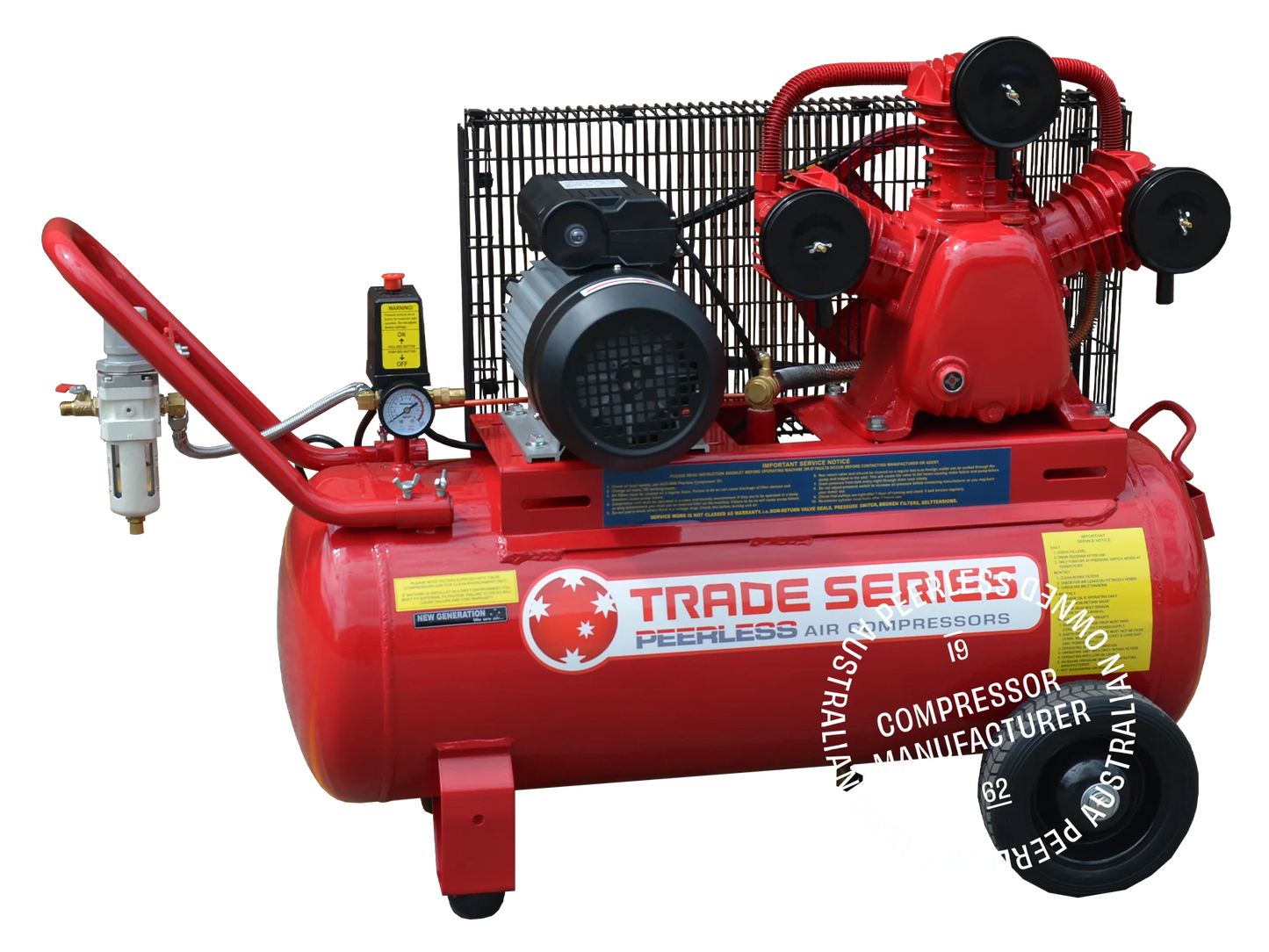

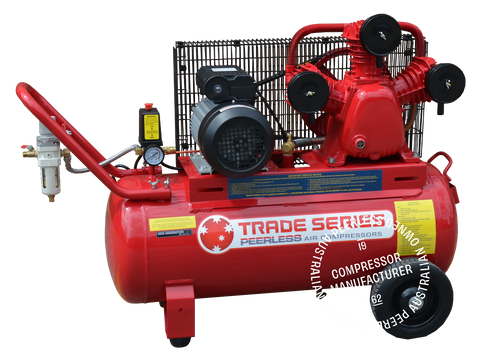

Trade Series 17 Belt Drive 70ltr Compressor
Trade Series 17 Belt Drive 70ltr Compressor
Couldn't load pickup availability
The "Trade Series" TS17W is a mid tier 3HP single phase air compressor when you put it up against the Peerless P17 model. But in saying so, it does deliver 300 litres of air per minute at 100PSI, fitted on a 70L pressure vessel. Removable handle makes it easy to store in a confined space, with a regulator mounting point on the handle. Solid wheels and a wire belt guard compared to metal cased, makes this the mid tier in comparison.
If you're looking at just mounting to the ground, it will sit flat without the wheels. Standard metal intake filters with replicable element cartridges.
| Code | Model | Pump Displacement (CFM) | Free Air Delivery (LPM) | Max PSI | Motor HP | Warranty Pump |
Warranty Motor |
Tank Capacity (L) | ||
|---|---|---|---|---|---|---|---|---|---|---|
| TS17W | TS17W | 17 CFM | 300 LPM | 145 | 3 | 3 Years | 1 Year | 70L |
Technical Data
| Cooling method |
Pump type | Cylinders | Pump head tension |
Oil capacity | Pump RPM | Outlet thread | Electricity | Amps draw |
|---|---|---|---|---|---|---|---|---|
| Air cooled | PB40 | 3 | 16 FT LB 22.4NM |
1.35L | 880 | 1/4"BSP | 240V / 15A | 13 |
