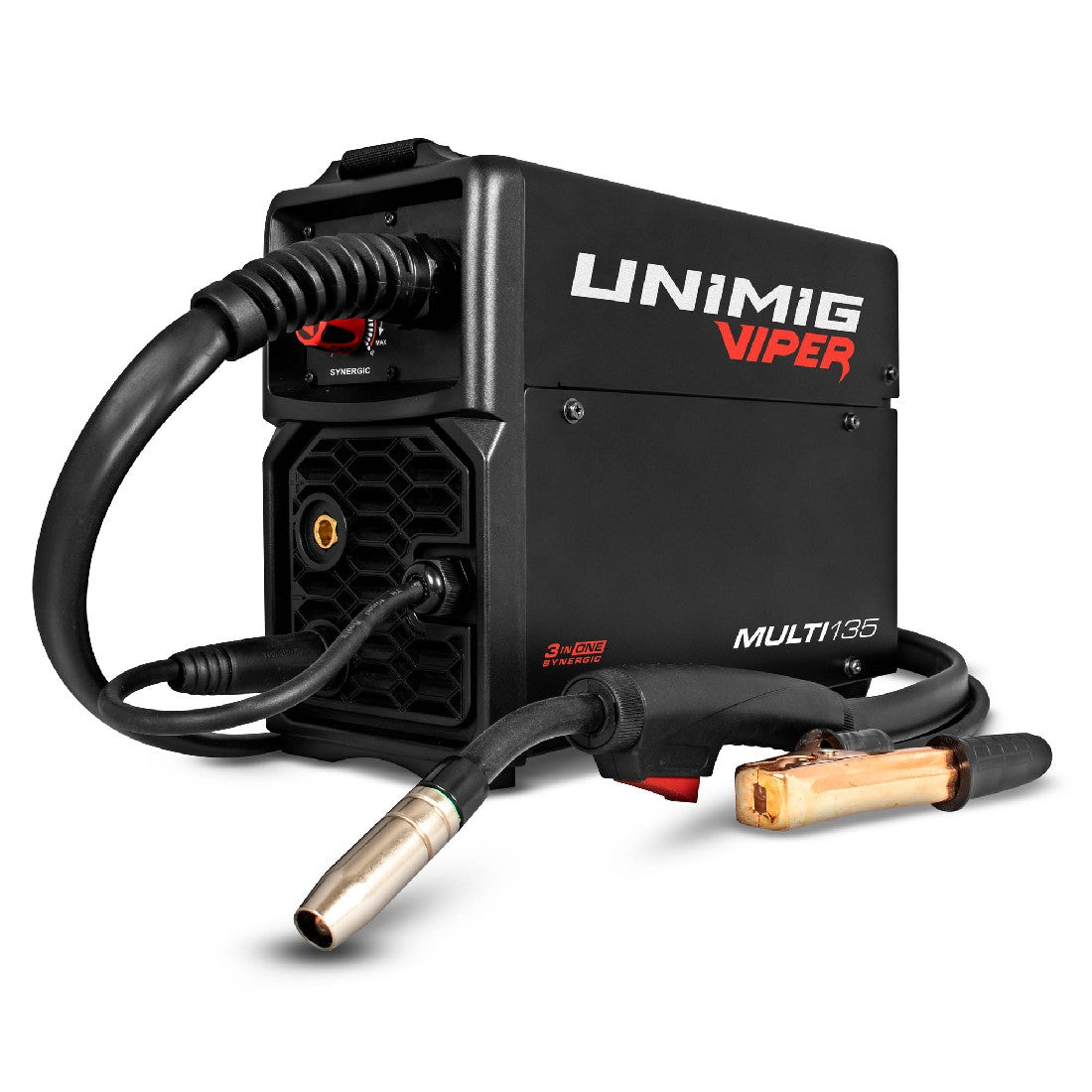

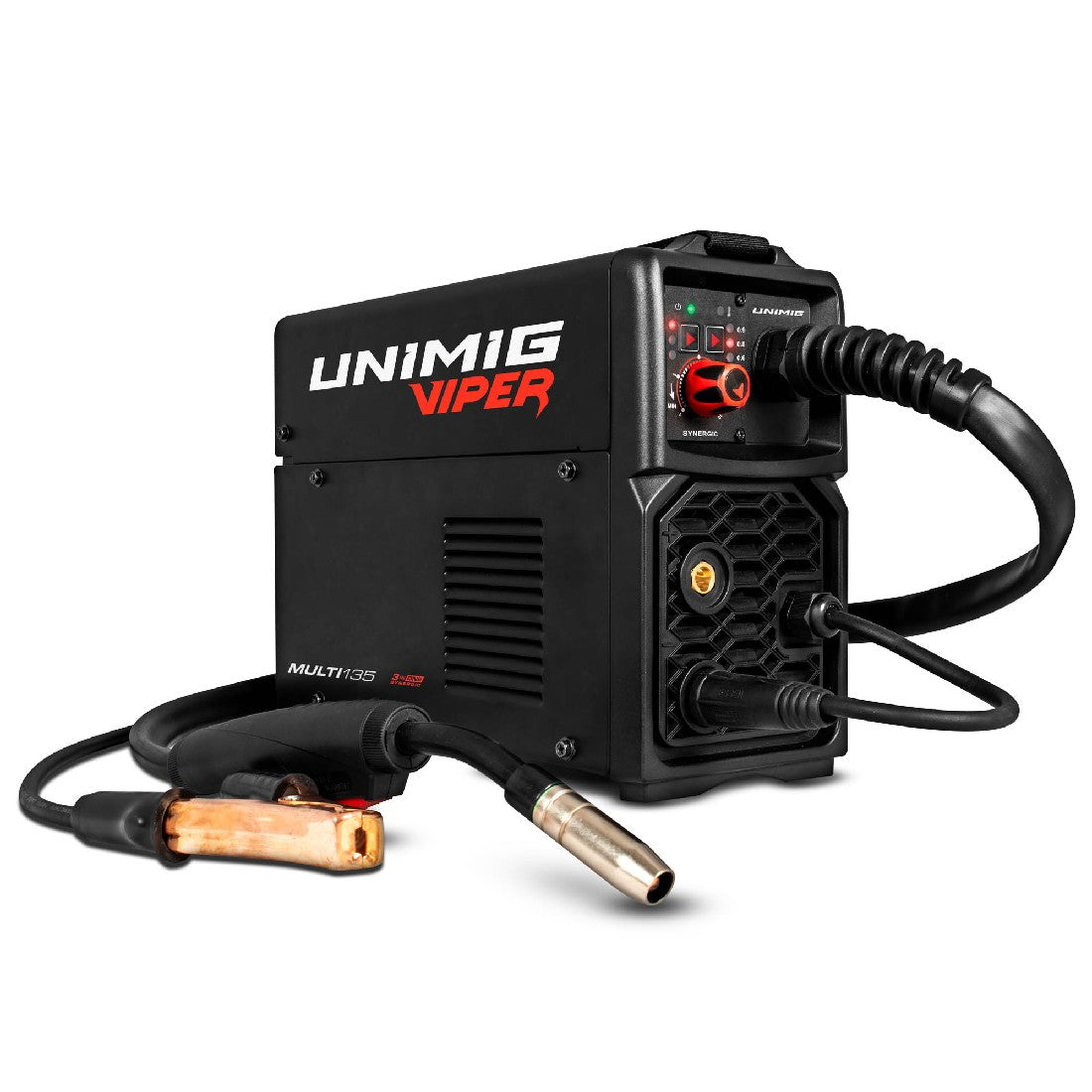

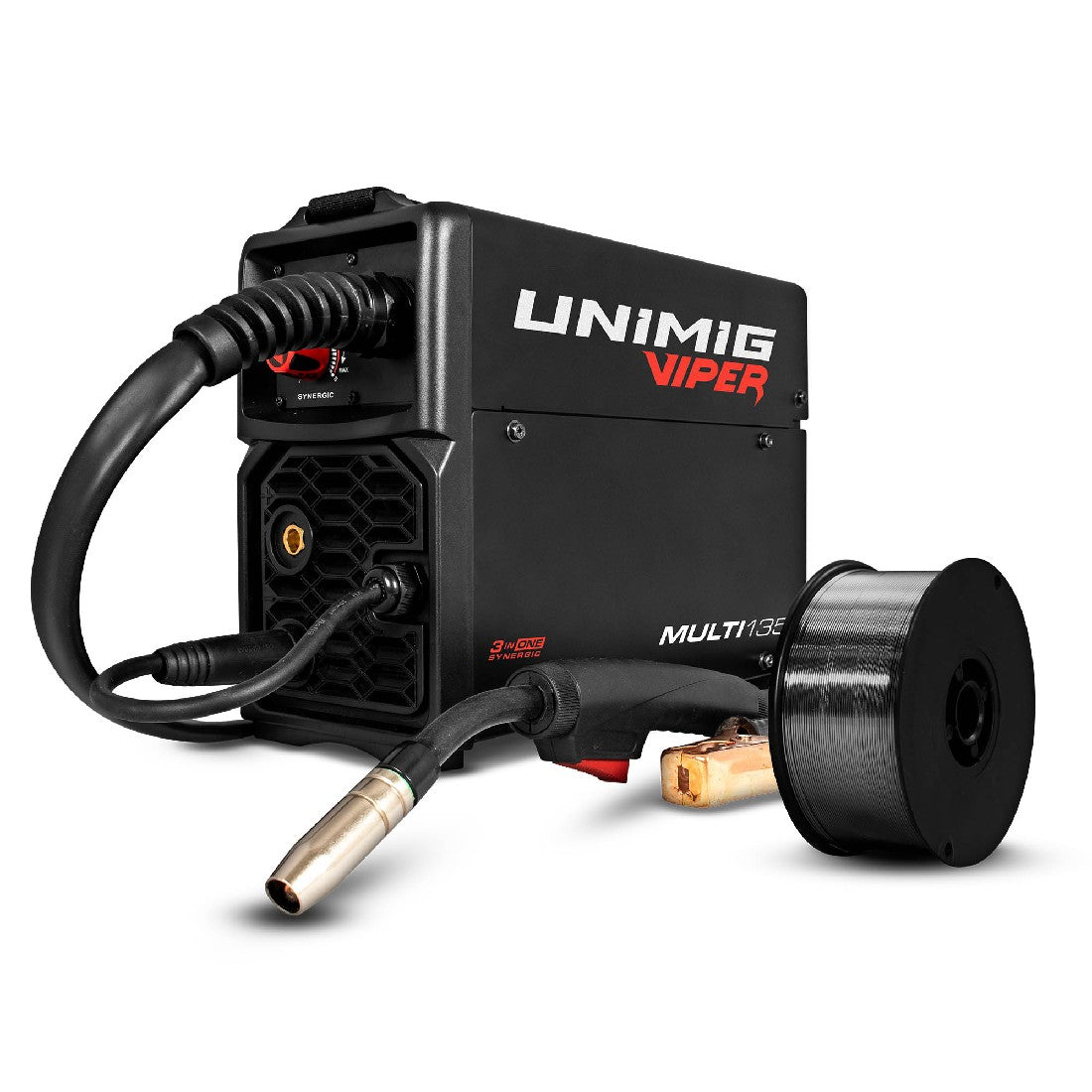

Viper Multi 135 Mig/tig/stick Welder

Welding has never been easier with the VIPER™ 135 SYNERGIC. Simply set your wire size, adjust the Synergic power knob and the VIPER™ does the rest! Running off a 10 AMP plug, this machine is perfect for small repairs and DIY welding projects.

The VIPER™ 135 SYNERGIC features MIG programs for 0.6mm, 0.8mm and 0.9mm wire. It can take Flux-Cored, Mild Steel and Stainless Steel MIG wires.

An improvement on the Viper 120, this welder is capable of Stick welding and DC Lift Arc Tig.

The built-in 10 AMP Plug makes this the perfect welder for your home workshop or out on the field. Weighing just 5.2kg, you’ll be able to take the VIPER™ 135 SYNERGIC anywhere you need.

U11005K

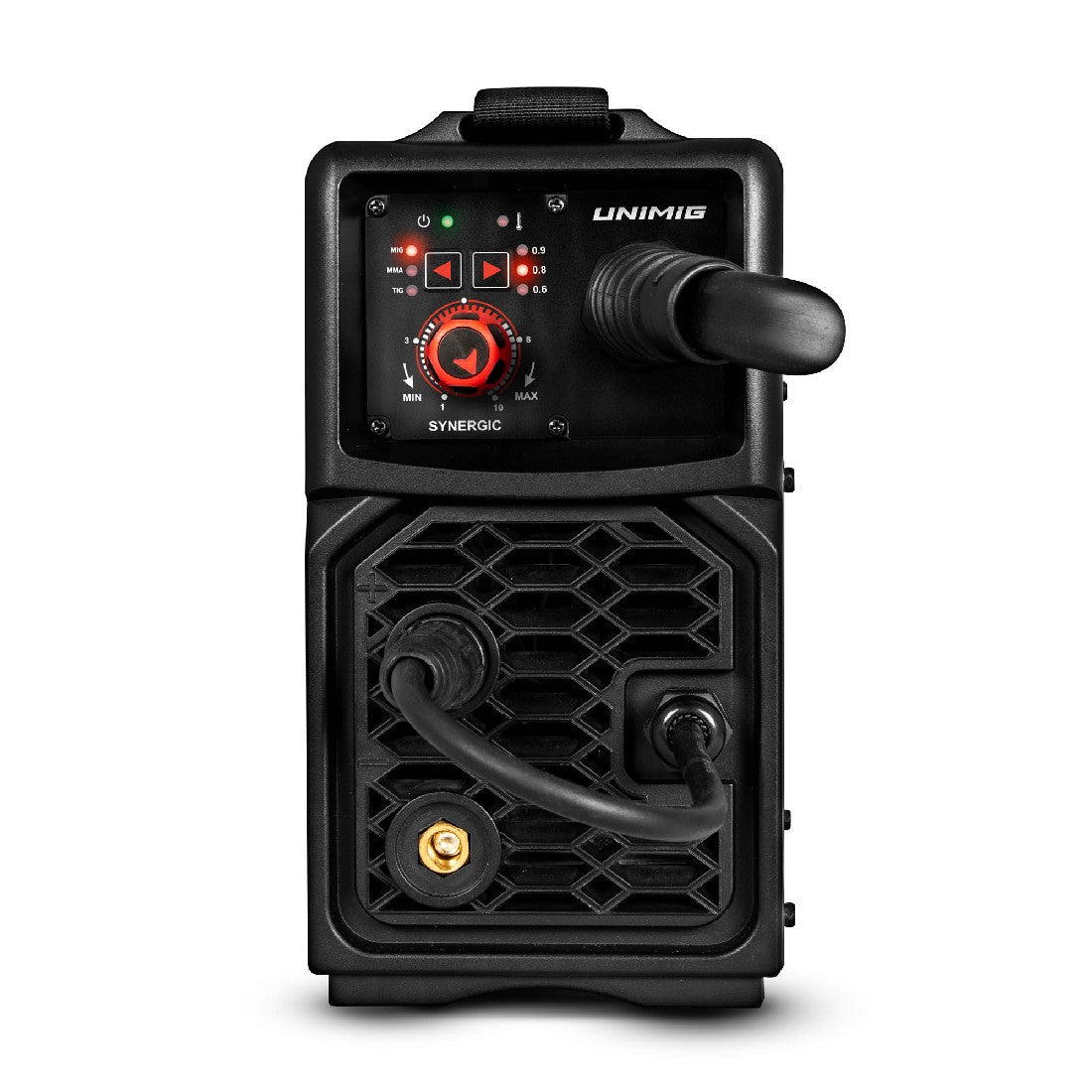

SYNERGIC MIG CONTROL



The clever Synergic MIG control takes the guesswork out of your settings. Simply select your wire size and adjust the Synergic power knob to the thickness of your material. The program works with 0.6, 0.8 and 0.9mm mild steel, stainless steel & flux-cored wires.



10 AMP PLUG



Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.



GAS & GASLESS MIG



This machine supports both gas-shielded MIG and gasless MIG wire, meaning you can easily run mild steel, stainless steel &  flux-cored MIG wire.



LIGHTWEIGHT & PORTABLE



Weighing just over 5kg, the VIPER MULTI 135 is ready to go anywhere you need it. Also included is a shoulder strap for extra comfort and portability.



Multi-Process Welding



This three-in-one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is no need to swap between machines, saving you time and setup.



• SPECIFICATIONS
• PACKAGE CONTENTS
• MANUALS & DOWNLOADS
• WARRANTY INFORMATION

Product No: U11005K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

RATED INPUT POWER (kVA)

4.15

Ieff (A)

8.4

RATED OUTPUT

40/16V-135A/21V

NO LOAD VOLTAGE (V)

68

PROTECTION CLASS

IP21S

INSULATION CLASS

H

POWER FACTOR

0.68

MINIMUM GENERATOR (kVA)

8.0

DINSE CONNECTOR

10/25

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper

WARRANTY (Years)

2

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

40-135A

MIG DUTY CYCLE @ 40°C

15% @ 135A, 60% @ 65A, 100% @ 50A

MIG WIRE SIZE RANGE

0.6-0.9mm

MIG WIRE SPOOL SIZE

1kg

MIG WELDING THICKNESS RANGE

1-6mm

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

20-120A

TIG DUTY CYCLE @ 40°C

15% @ 120A, 60% @ 60A, 100% @ 45A

TIG WELDING THICKNESS RANGE

1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-120A

STICK DUTY CYCLE @ 40°C

15% @ 120A, 60% @ 60A, 100% @ 45A

STICK ELECTRODE RANGE

2.5-3.2mm

STICK WELDING THICKNESS RANGE

1-6mm

SIZE & WEIGHT

DIMENSIONS (mm)

353x132x250mm

WEIGHT (kg)

5.2kg

MACHINE FEATURES

WIRE DRIVE

Standard

VRD

YES

THERMAL OVERLOAD PROTECTION

Over Temperature Warning
