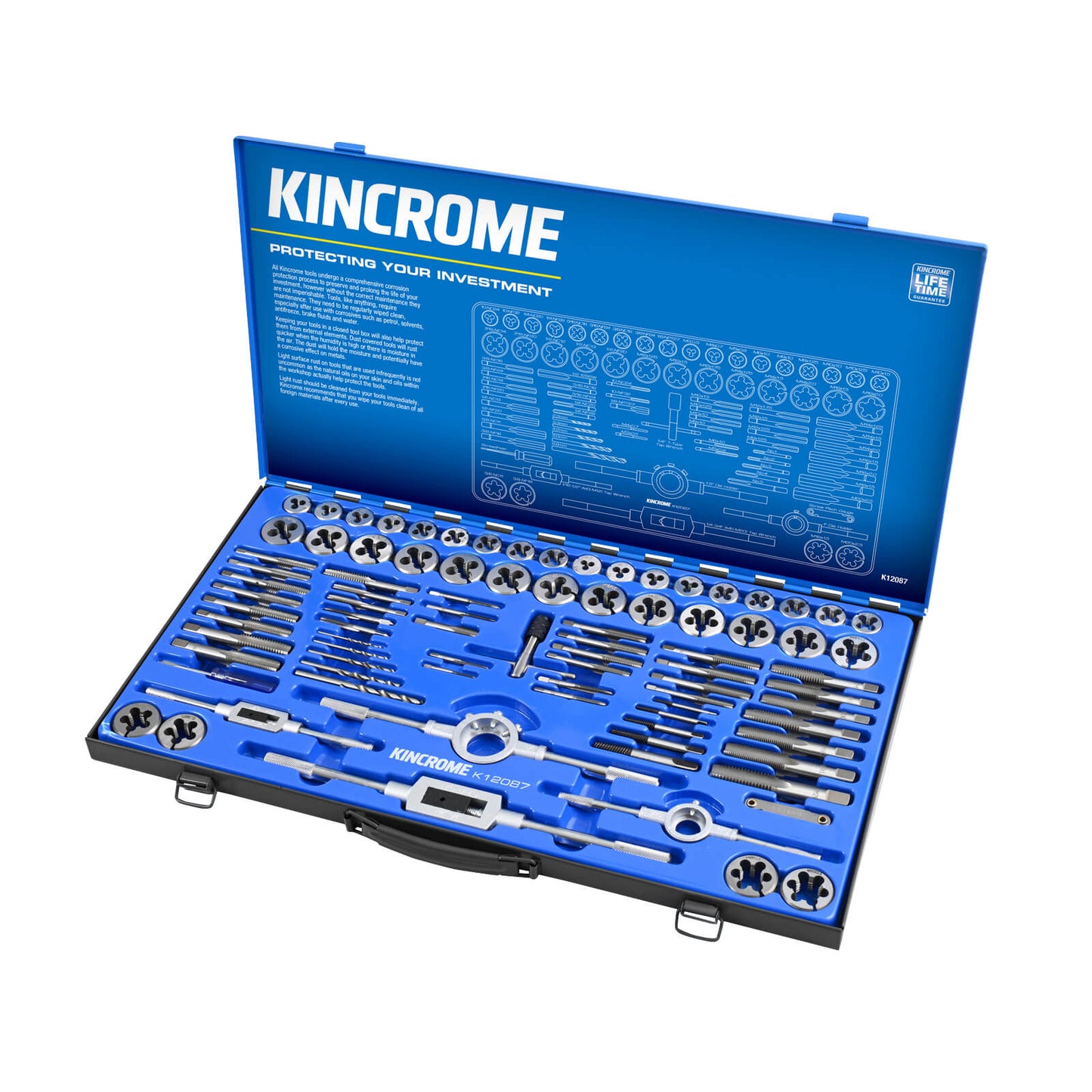

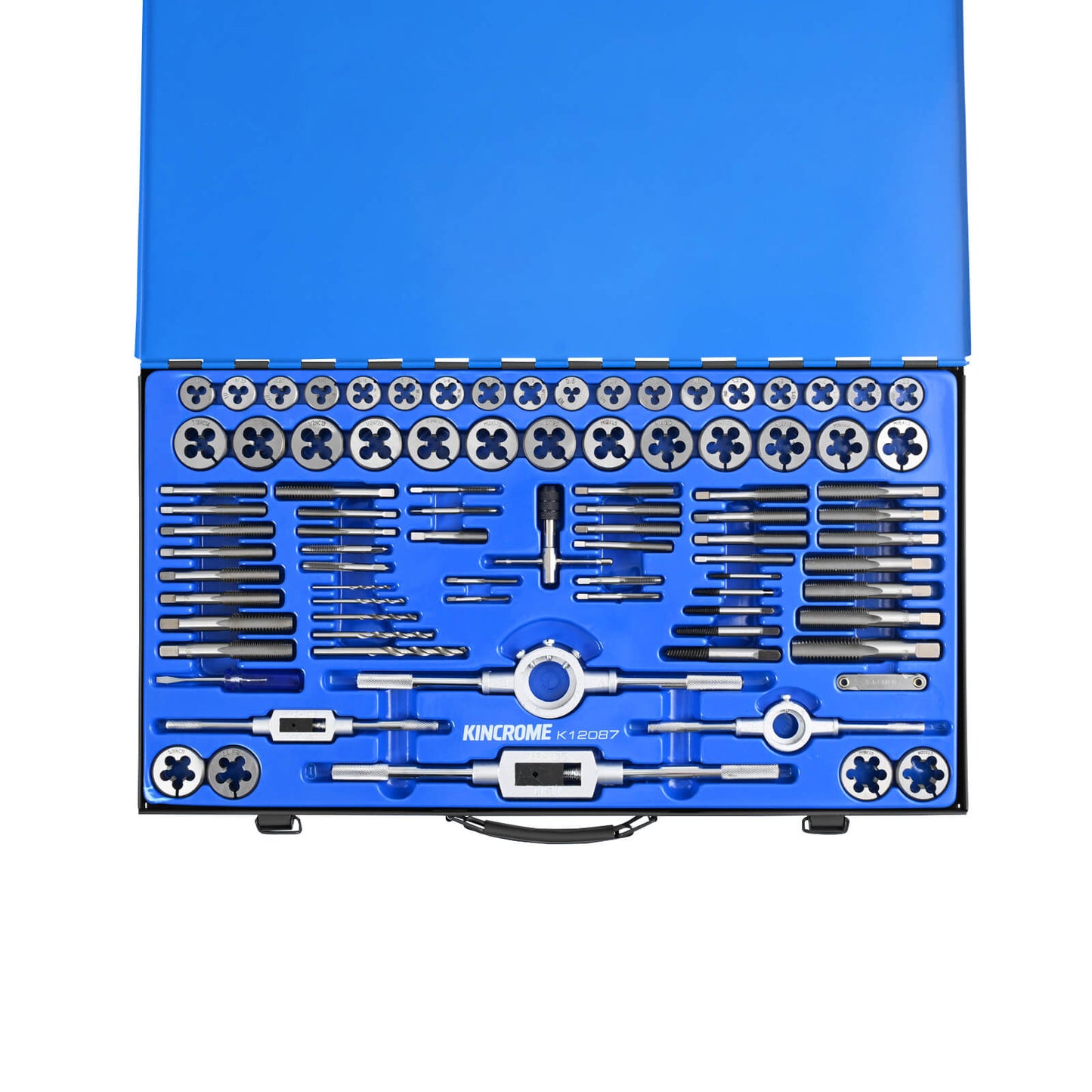

KINCROME TAP & DIE ENGINEER SET 87 PIECE

KINCROME TAP & DIE ENGINEER SET 87 PIECE

Regular price $330.00 AUD
Regular price Sale price $330.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Kincrome Tap and Die Sets have contents hand picked to ensure they offer the best value for money and have contents that make cleaning and cutting threads a smooth process. These sets are ideal for cleaning and cutting threads on mild steel and aluminium for a wide variety of applications. The taps and dies themselves are precision machined from alloy steel and are hardened to 58-62 HRC to ensure maximum durability and strength.

Specifications

Brand KINCROME
Hardness Rating HRC 58-63
Pieces 87
Warranty Lifetime Guarantee
Material Alloy Steel
Length (mm) 595
Width (mm) 342
Height (mm) 30
Weight (kg) 6.93

Features

 Manufactured from Tungsten Steel

Contents

• 19 Metric Dies: M3x0.5, M4x0.7, M5x0.8, M6x1.0, M8x1.0, M8x1.25, M10x1.0, M10x1.25, M10x1.5, M12x1.25, M12x1.5, M12x1.75, M14x1.25, M14x1.5, M14x2.0, M16x1.5, M16x2.0, M18x1.5, M20x2.5

• 16 Imperial Dies 10-NC24, 10-NF32, 1/4-NC20, 1/4-NF28, 5/16-NC18, 5/16-NF24, 3/8-NC16, 3/8-NF24, 7/16-NC14, 7/16-NF20, 1/2-NC13, 1/2-NF20, 5/8-NC11, 5/8-NF18, 1/8-NPT27, 1/2-12BSW

• 19 Metric Taps: M3x0.5, M4x0.7, M5x0.8, M6x1.0, M8x1.0, M8 x 1.25, M10x1.0, M10x1.25, M10x1.5, M12x1.25, M12x1.5, M12x1.75, M14x1.25, M14x1.5, M14x2.0, M16x1.5, M16x2.0, M18x1.5, M20x2.5

• 16 Imperial Taps: 10-NC24, 10-NF32, 1/4-NC20, 1/4-NF28, 5/16-NF24, 5/16-NC18, 3/8-NC16, 3/8-NF24, 7/16-NC14, 7/16-NF20, 1/2-NC13, 1/2-NF20, 5/8-NC11, 5/8-NF18, 1/2-12BSW, 1/8-NPT27

• 5 Drill Bits: 2.5mm, 3.3mm, 4.2mm, 5.0mm, 6.8mm

• 5 Screw Extractors: No.1, No.2, No.3, No.4, No.5

• 2 Die Handles: 1" & 1.5”

• 1 x Adjustable Tap Wrench:  M3-M12 (1/16"-1/2")

• 1 x Adjustable Tap Wrench:  M6-M20 (1/4"-3/4")

• 1 T-Type Tap Wrench 1/4"

• 1 Screw Pitch Gauge

• 1 Screwdriver


 HRC Hardness: 58

 63

 Supplied in sturdy metal case
