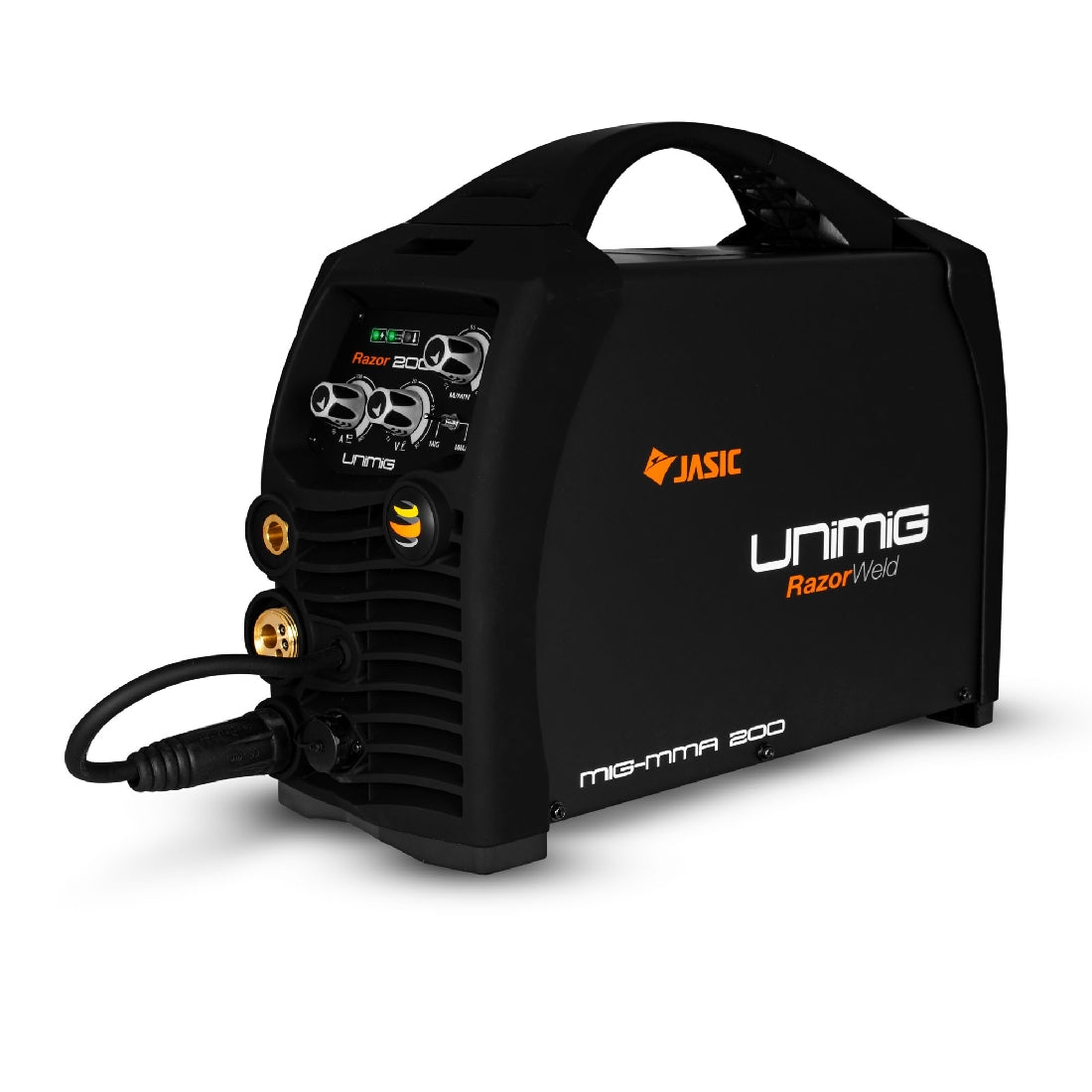

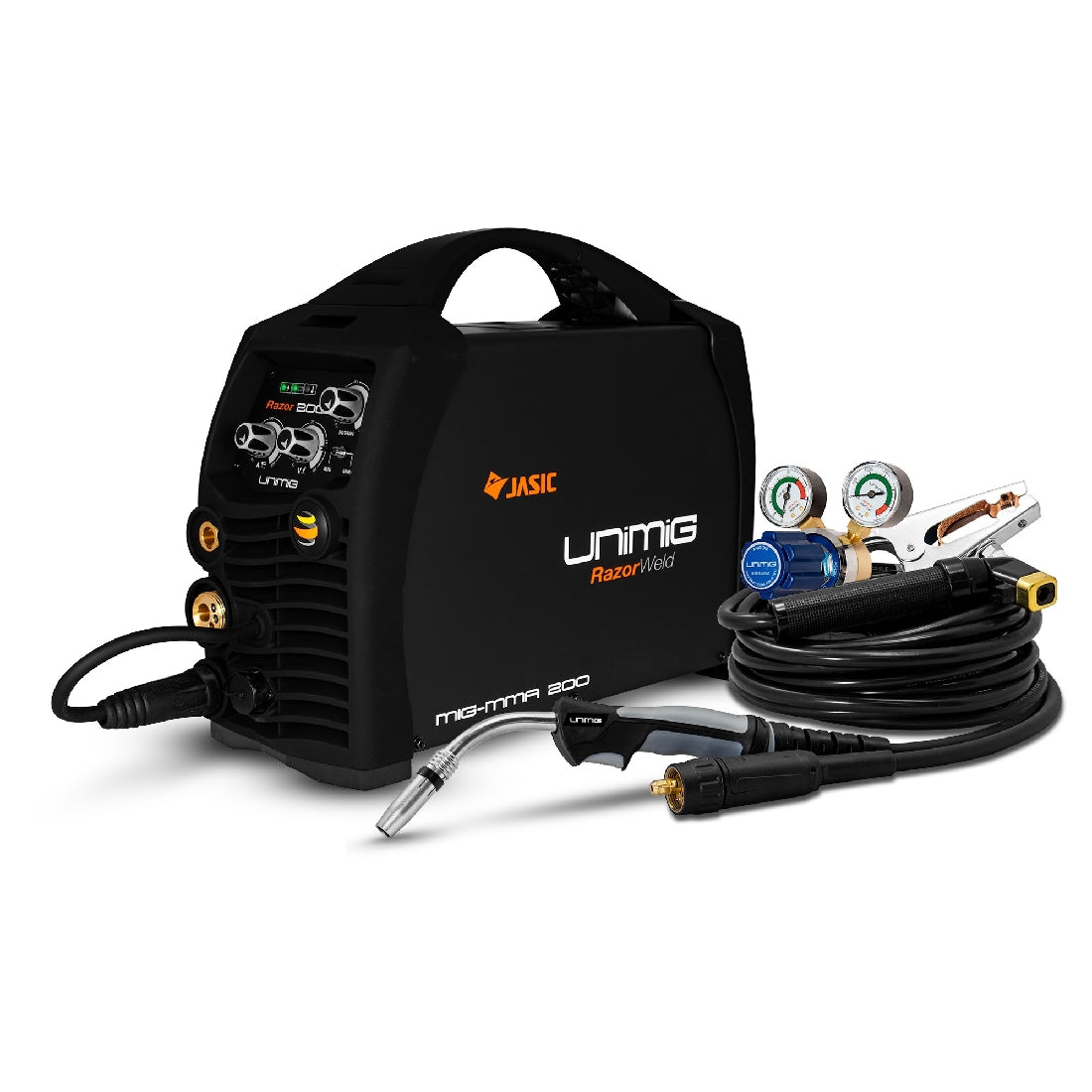

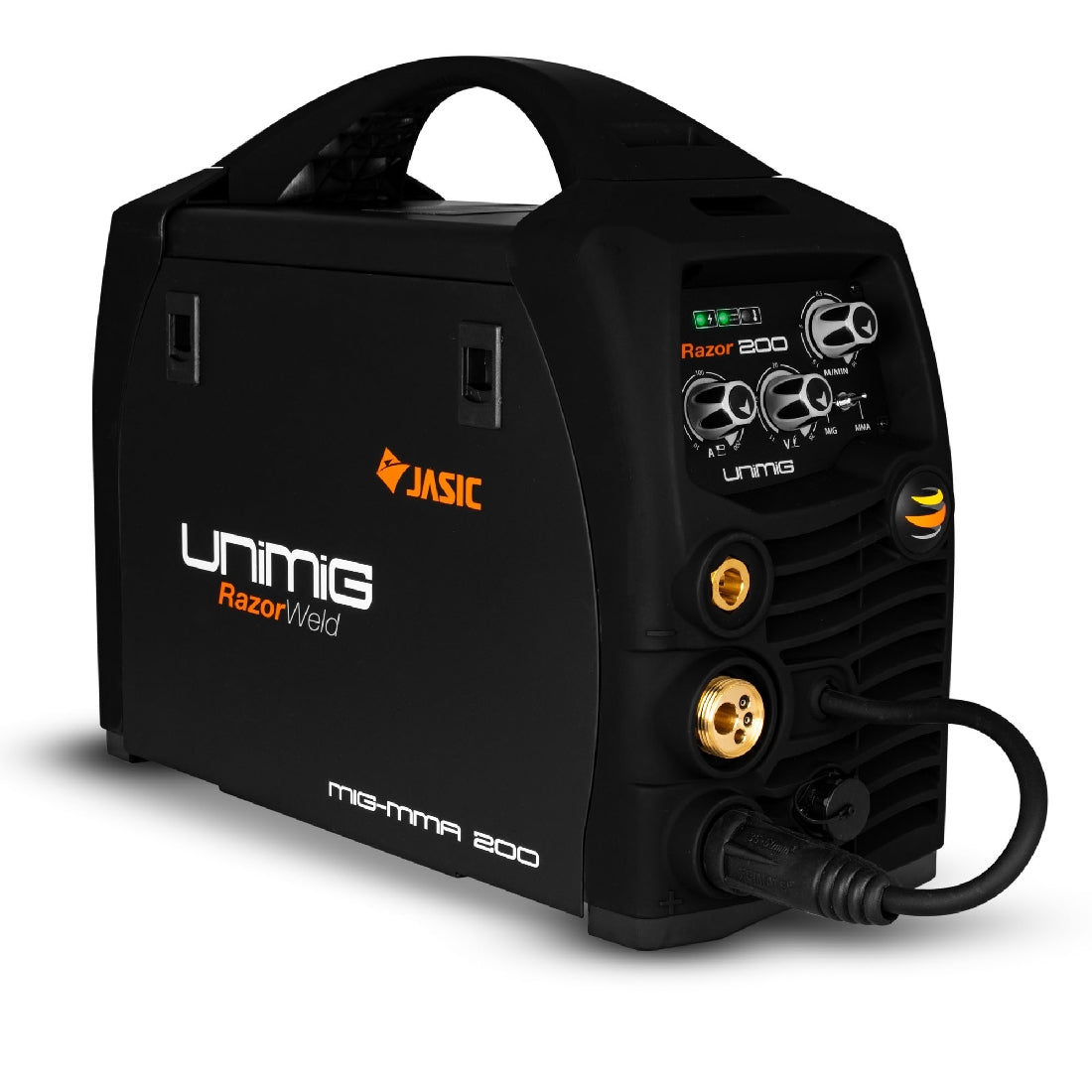

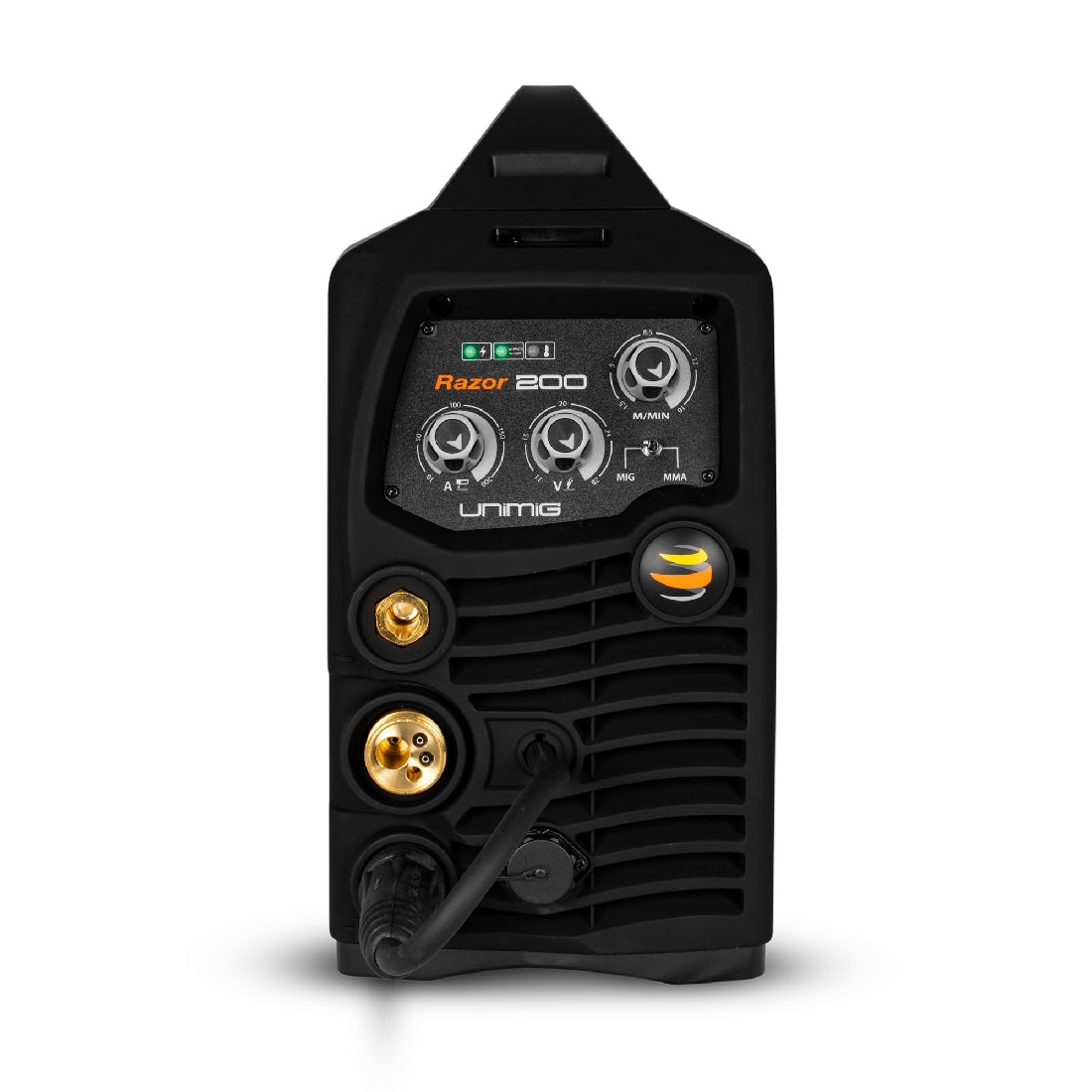

Unimig Razor Weld Mig 200

The RAZOR™ 200 is the perfect MIG and STICK welder for the professional welder wanting a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is designed for the workshop and for site work. The Spool Gun connection gives you the added flexibility of using softer wires and smaller spools, giving you all the features you need in a lightweight machine.

KUM-M-RW200MIG





15 AMP PLUG

CONNECT TO ANY 15 AMP OUTLET.

GAS & GASLESS MIG

MILD STEEL, ALUMINIUM, FLUX-CORED, STAINLESS STEEL.

SPOOL GUN READY

FOR SOFTER WIRES, SUCH AS ALUMINIUM.

GEARED WIRE DRIVE

FOR SMOOTHER WIRE FEEDING.

GEARED WIRE DRIVE



This machine features a geared roller drive unit, providing consistent and smooth wire feed. This also assists with using longer MIG Torches.



GAS & GASLESS MIG



This machine supports both gas shielded MIG and gasless MIG wire, meaning you can easily run mild steel, aluminium, flux-cored, silicon bronze and stainless steel MIG wire.



SPOOL GUN READY



This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire (0.6-1.0mm diameter). The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.



• SPECIFICATIONS
• MANUALS & DOWNLOADS
• WARRANTY INFORMATION

Product No: KUM-M-RW200MIG

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

9.4

Ieff (A)

15.0

RATED OUTPUT

30A/15.5V - 200A/24.0V

NO LOAD VOLTAGE (V)

53

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.7

MINIMUM GENERATOR (kVA)

11.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium

WARRANTY (Years)

3

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

30-200A

MIG DUTY CYCLE @ 40°C

20% @ 200A

MIG WIRE SIZE RANGE

0.6-1.0mm

MIG WIRE SPOOL SIZE

1kg / 5kg

MIG WELDING THICKNESS RANGE

1-10mm

DRIVE ROLLER SIZE

30/22

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-200A

STICK DUTY CYCLE @ 40°C

15% @ 200A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

SIZE & WEIGHT

DIMENSIONS (mm)

470x190x380mm

WEIGHT (kg)

12.5kg

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

THERMAL OVERLOAD PROTECTION

Over Temperature Warning
