Unimig 250k Bundle Kit

Razor 250 Compact Mig/Tig/Stick Welder Bundle Unimig PK11027

The RAZOR™ 250 Compact is a powerful workshop machine with MIG, TIG and STICK welding functions. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZOR™ 250 Compact is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

The RAZOR™ Compact series is designed for superior performance, offering the highest quality of welds from UNIMIG’s range.

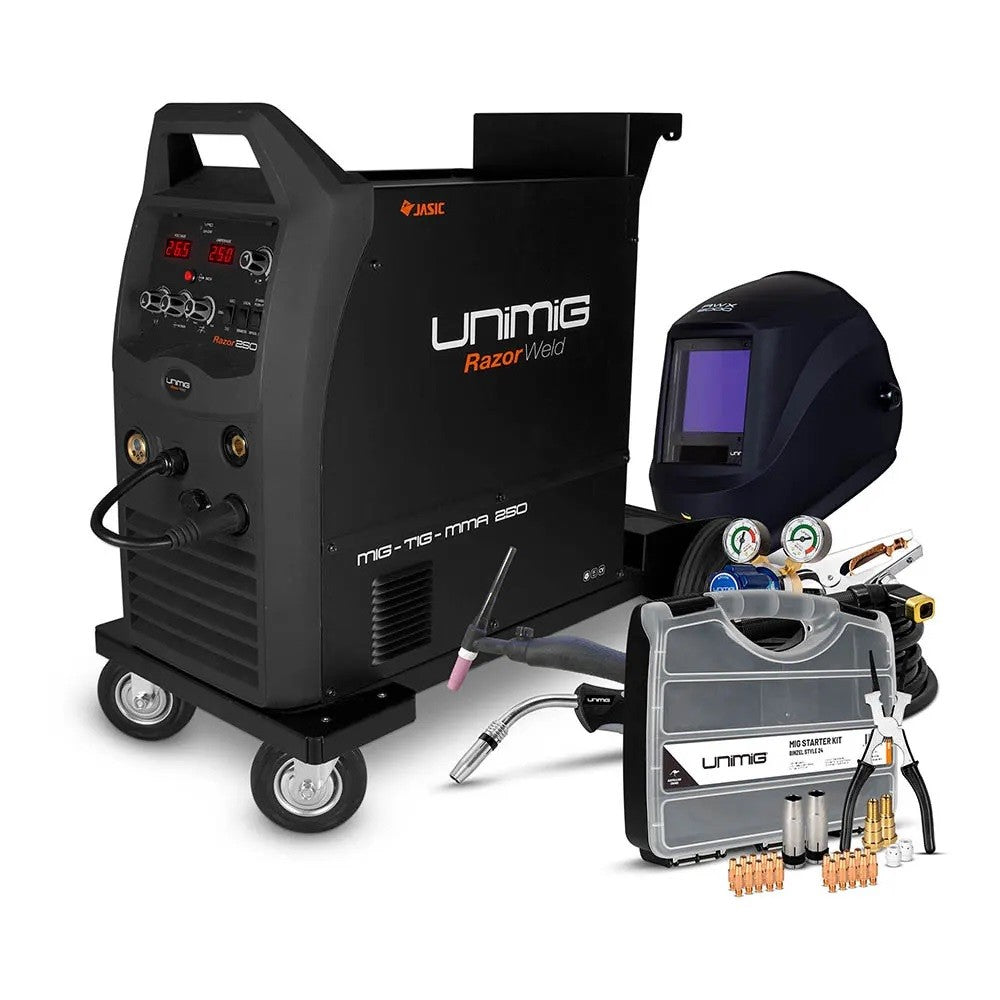

Bundle Contents

1. RAZOR™ 250 COMPACT MIG/TIG/STICK Welder (KUMJR250K-SG)
2. RWX6000 Welding Helmet (UMRWXWH)
3. 26V TIG Torch (26V-4MCP50)
4. Binzel Style 24 Consumable Starter Kit (UMSK24)

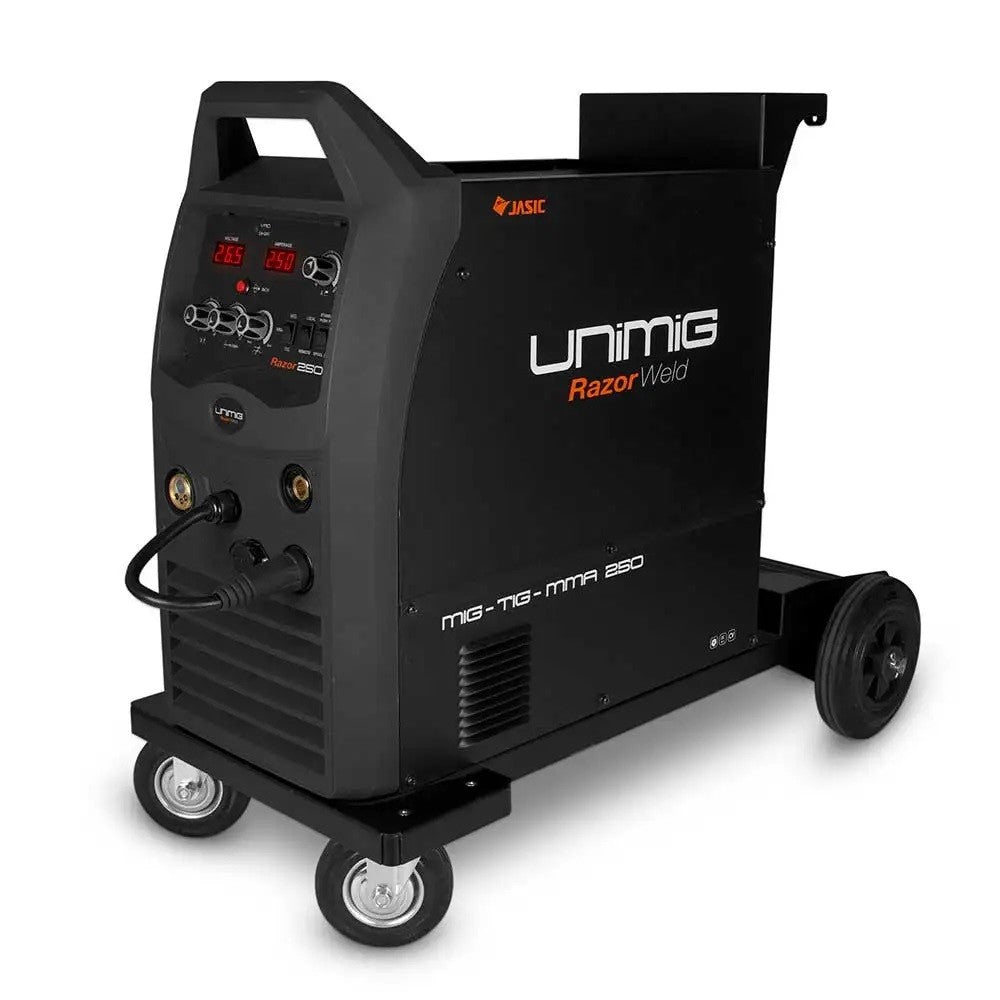

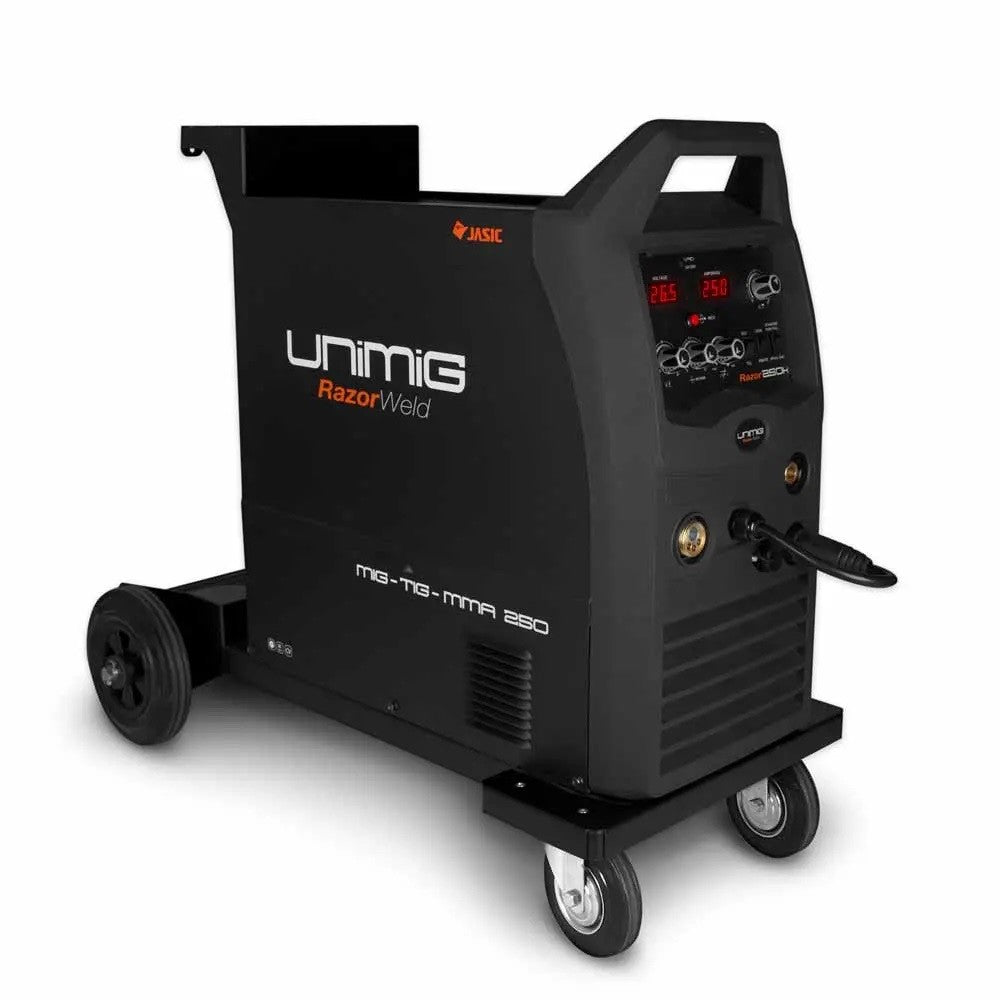

RAZOR™ 250 COMPACT MIG/TIG/STICK 3 in 1 Compact Inverter Welder (KUMJR250K-SG)

The RAZOR™ 250 Compact is a powerful workshop machine with MIG, TIG and STICK welding functions. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZOR™ 250 Compact is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

The RAZOR™ Compact series is designed for superior performance, offering the highest quality of welds from UNIMIG’s range.

Includes:

• 1 x UNIMIG Compact 250 Power Source
• 1 x 4 metre SB24 MIG Torch
• 1 x 4 metre Arc Welding lead set including twist lock electrode holder & 300 Amp earth clamp
• 1 x UNIMIG Twin Gauge Argon Regulator
• 1 x 2 metre Gas Hose with connections
• 1 x Instruction Manual

Features:

• Latest IGBT inverter technology
• MIG/MAG with Gas and Gasless wire function
• Spool Gun connection
• MMA
• DC TIG welding with Lift Arc start
• VRD (Voltage Reduction Device)
• Wire Inch & Burn Back control
• Industrial application
• Internal wire feeder, gear driven
• 5Kg to 15Kg Spools
• Euro style MIG torch connection
• IP21S rating for environmental/safety protection
• Stepless voltage and wire feed control
• Excellent MIG welding with CO2 gas & mixed gas
• Excellent arc stability for MIG/TIG/MMA welding

Specifications:

• Voltage: 240V Single Phase
• Power: 10.4 KVA MIG / 11.8 KVA MMA
• ieff AMPS: 25.4A MIG / 29.0A MMA
• Rated Output MIG: 30A/15.5V - 250A/26.5V
• Rated Output MMA: 10A/20.4V - 250A/30.0V
• Welding Current Range: 10 - 250 Amps
• Duty Cycle 40 Deg C - MIG: 35% @ 250 Amps
• Duty Cycle 40 Deg C - MMA: 35% @ 250 Amps
• Dimensions (L x W x H): 900mm x 400mm x 670mm
• Weight: 58kg

RWX6000 Welding  Automatic Welding Helmet (UMRWXWH)

Featrues:
4 Arc Sensors - Maintain constant sensing and automatically switches the helmet from light to dark and back again.
Enhanced - Viewing Area Offers a larger viewing area for the operator. This larger viewing area enhances the operators view of the welding area
True Colour - High Definition Filter Technology is a feature that greatly improves the optics allowing the user to see a full spectrum of colours. It also helps to alleviate eye fatigue making it safer for extended periods of welding.
Operator Comfort - Lightweight Design makes wearing the welding helmet more comfortable for the operator.
Memory Function - Allows the operator to store different shade, sensitivity and delay options into three easily accessible pre-sets.
Grind Mode - Allows the operator to switch the helmet from the welding mode into a fixed shade for grinding. This function removes the need for the operator to change visors and to simply use the welding helmet for grinding when required.
Shade Control - Automatic Welding Lens allows the operator to switch between variable welding shades from 5-9 and 9-13. The switching speed of the lens is a very fast 0.04m/s from light to dark.
Specifications:

• Filter dimension: 133mm x 114mm x 10mm
• View size: 100mm x 83.4mm
• Classification: 1/2/1/1
• Sensors: 4
• Light state: 4
• Dark state: Variable shade 5-9/9-13
• Power control: Fully automatic
• Shade control: Internal
• Switching time at 23˚C: 0.08ms
• Sensitivity & Delay time control: Adjustable (Internal)
• Time from dark to light: 0.1-0.9s adjustable
• Grinding function: Yes
• Grinding warning flash: Yes
• Low battery warning indicator: Yes
• Operation temperature: -10˚C - 65˚C
• Storing temperature: -20˚C - 85˚C
• Power supply: Solar cell, replaceable battery (CR2450*1PCS)
• Certifications approved: CE, ANSI , CSA, AS/NZS

Warranty:

• 2 Years Warranty Covered By Unimig Australia

Unimig 26V TIG Torch (26V-4MCP50)

The 26V TIG Torch has been engineered for trouble-free and superior performance during DC Lift Arc TIG welding. The ergonomically designed handle includes soft grips and knuckle joints. Rubber cable materials guarantee optimal cable performance, whilst the shielded switch leads ensure minimal tracking and maximum machine protection. This torch is also ‘flex-head’ compatible.

Specifications:

• Quantity:  1 pce
• Dinse/Connector: 35/50
• Max Output: 180A
• Length: 4m

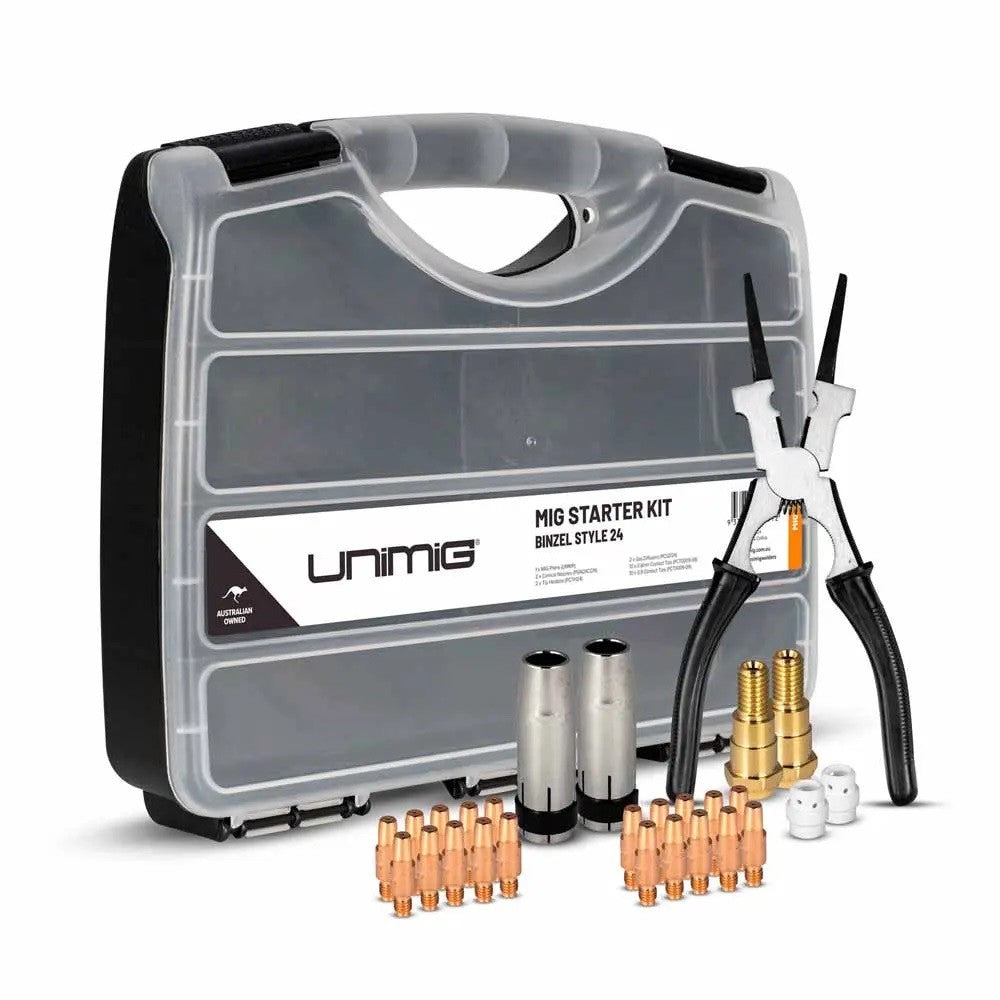

UNIMIG UMSK24 27pce MIG Starter Kit Suit Binzel Style 24

The Binzel Style 24 Starter Kit contains all the essential consumables for a Binzel Style 24 Mig Torch & is conveniently packaged together in a sturdy carry case for storing alongside your machine! Other consumable starter kits are available for some of UNIMIG’s most popular MIG, TIG & Plasma torches.

Includes:

• 1 x MIG Pliers (UMMP)
• 2 x Conical Nozzles (PGN24CON)
• 2 x Tip Holders (PCTH24)
• 2 x Gas Diffusers (PCGD24)
• 10 x 0.8mm Contact Tips (PCT0009-08)
• 10 x 0.9 Contact Tips (PCT0009-09)

Part Number/SKU: PK11027
