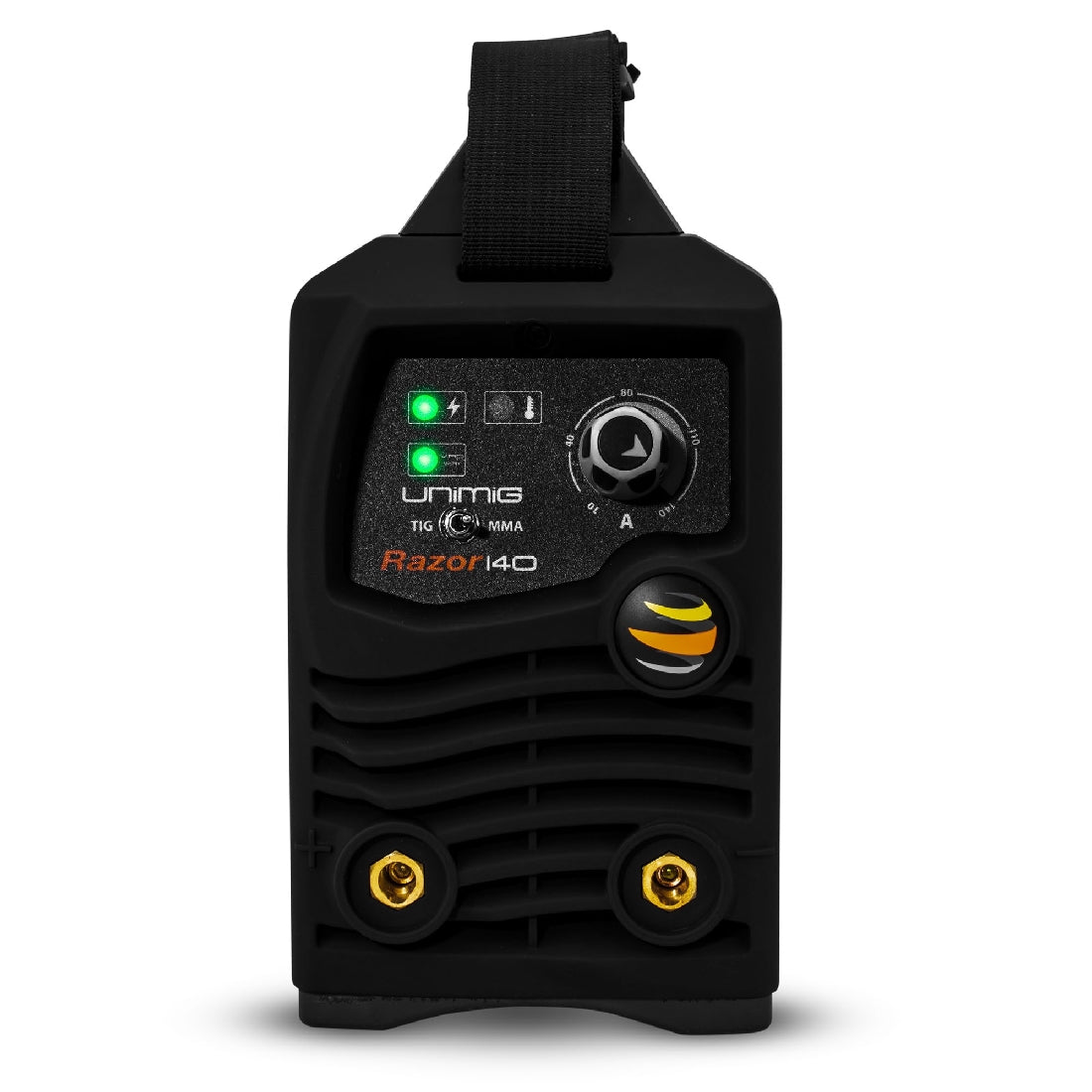

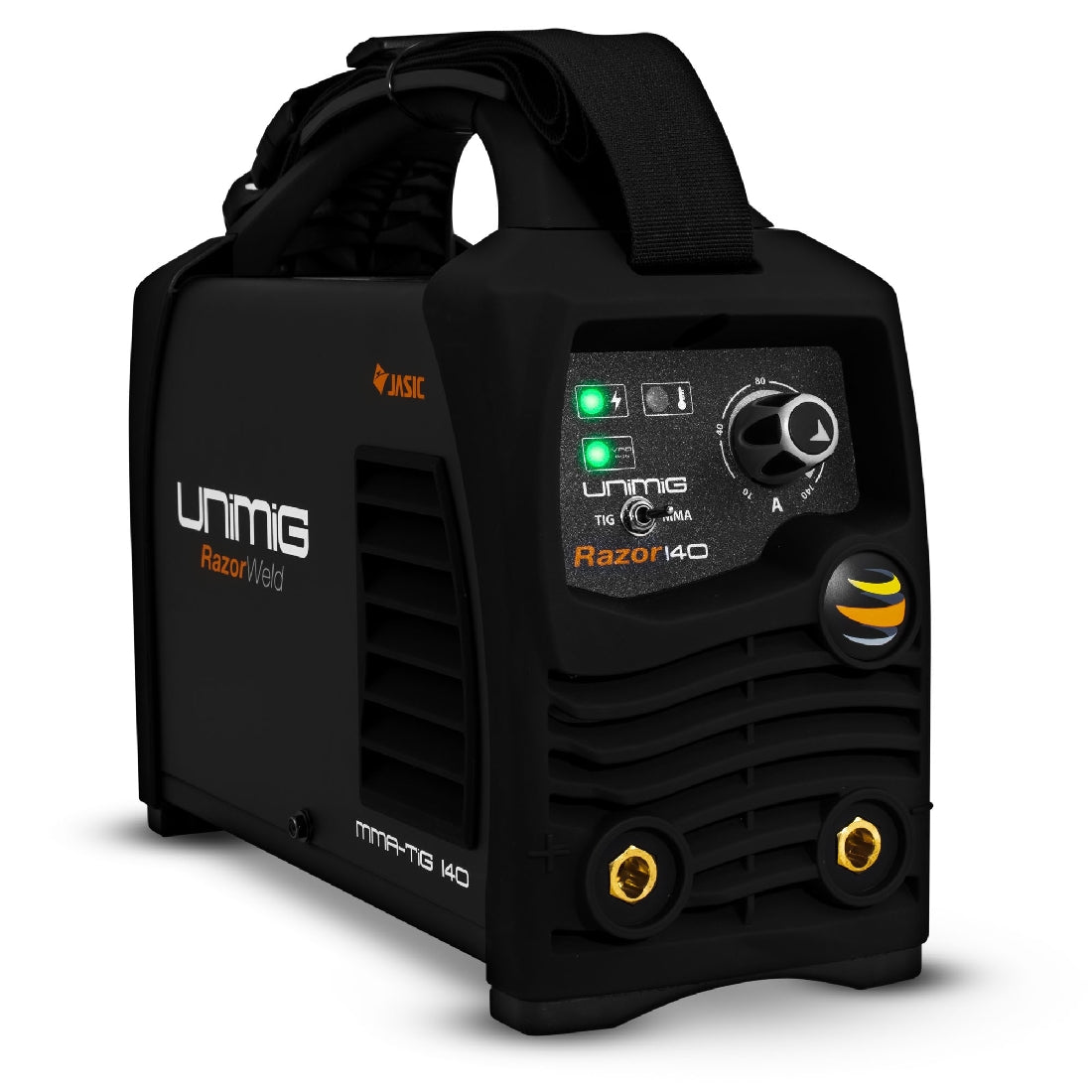

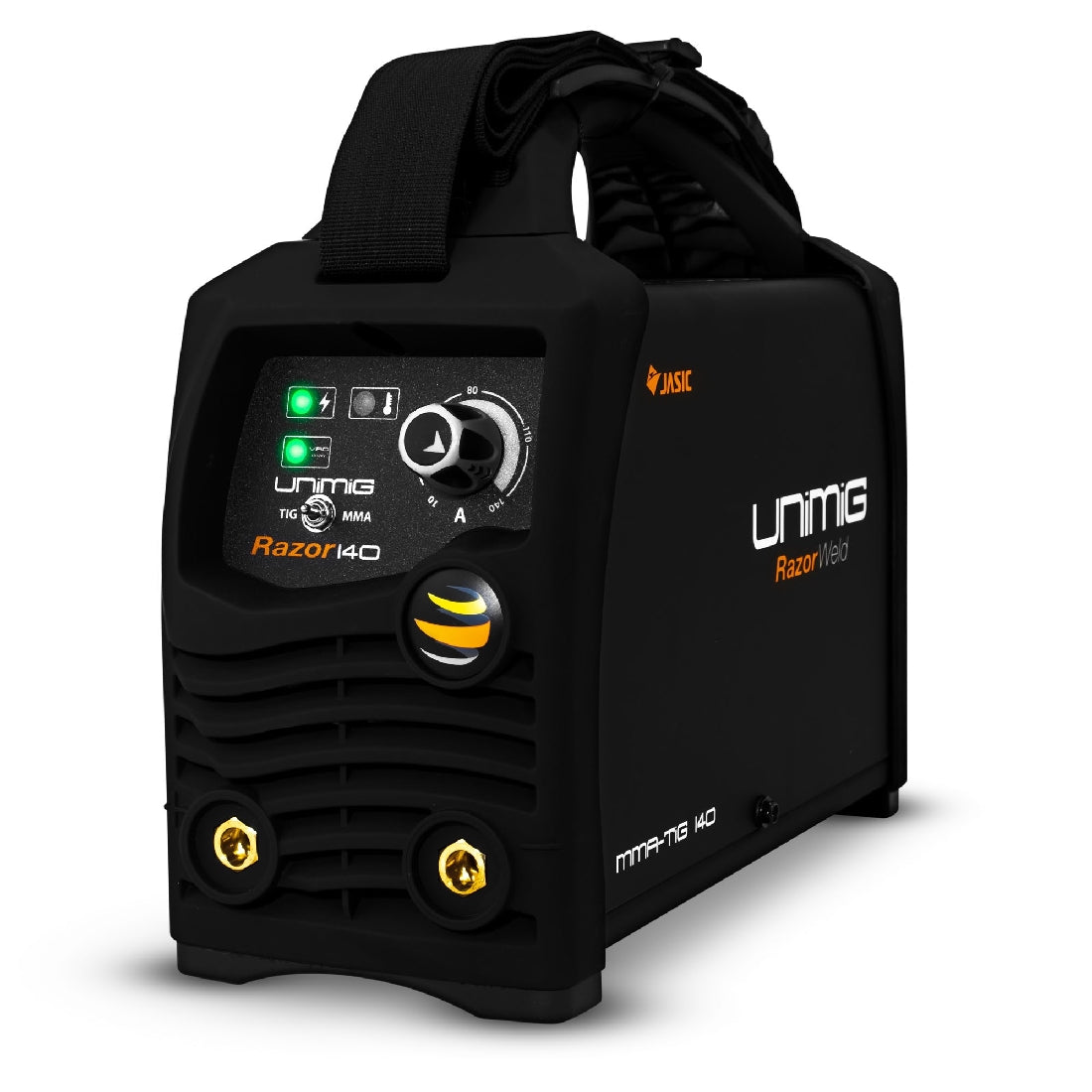

Unimig Razor Arc 140

The RAZOR™ ARC 140 is the perfect STICK and TIG welder for the professional welder wanting a powerful machine with a portable body. Fitted with a 10 AMP plug, this machine is designed to be taken between the workshop and worksites with ease. Connecting a 17V TIG Torch provides DC Lift Arc TIG functionality.

KUMJRRW140CA



10 AMP PLUG

CONNECT TO ANY STANDARD OUTLET.

DC LIFT ARC TIG

TIG WELDING FUNCTIONALITY.

KEYABLE VRD SWITCH

PREVENTS VOLTAGE OVERLOADING, PROTECTING YOURSELF AND THE MACHINE.

THERMAL OVERLOAD PROTECTION

PREVENTS MACHINE FROM EXCEEDING A SAFE OPERATING TEMPERATURE.

DC LIFT ARC TIG



Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the work piece and lifting it up to start the arc. This stops the tungsten tip sticking to the work piece and breaking the tip from the tungsten electrode.



KEYABLE VRD SWITCH



A Voltage Reduction Device can be turned on and off with the supplied key to suit your application. If you’re running electrodes that are hard to start, the VRD can be turned off to help with striking an arc.



• SPECIFICATIONS

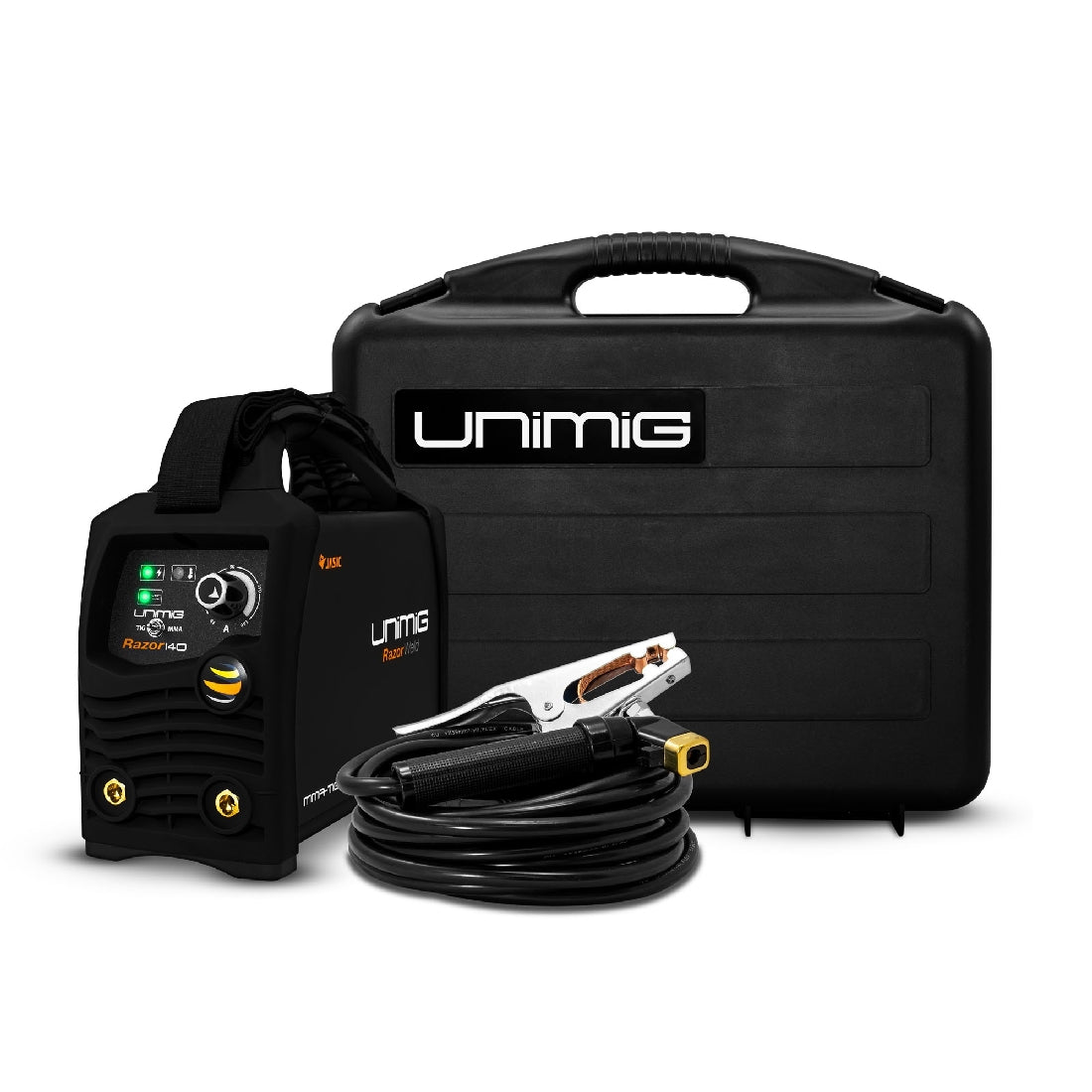

• PACKAGE CONTENTS
• MANUALS & DOWNLOADS
• WARRANTY INFORMATION

Product No: KUMJRRW140CA

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

RATED INPUT POWER (kVA)

7.0

Ieff (A)

7.9

RATED OUTPUT

10-140A

NO LOAD VOLTAGE (V)

78

PROTECTION CLASS

IP21S

INSULATION CLASS

F

MINIMUM GENERATOR (kVA)

8.0

DINSE CONNECTOR

10/25

STANDARD

AS/NZ60974-6

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Copper, Cast Iron

WARRANTY (Years)

3

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-140A

TIG DUTY CYCLE @ 40°C

20% @ 140A

TIG WELDING THICKNESS RANGE

1-5mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-140A

STICK DUTY CYCLE @ 40°C

15% @ 140A

STICK ELECTRODE RANGE

2.5-3.2mm

STICK WELDING THICKNESS RANGE

8mm

SIZE & WEIGHT

DIMENSIONS (mm)

313x250x130mm

WEIGHT (kg)

4.7kg

MACHINE FEATURES

VRD

Yes (Keyable)

THERMAL OVERLOAD PROTECTION

Over Temperature Warning
