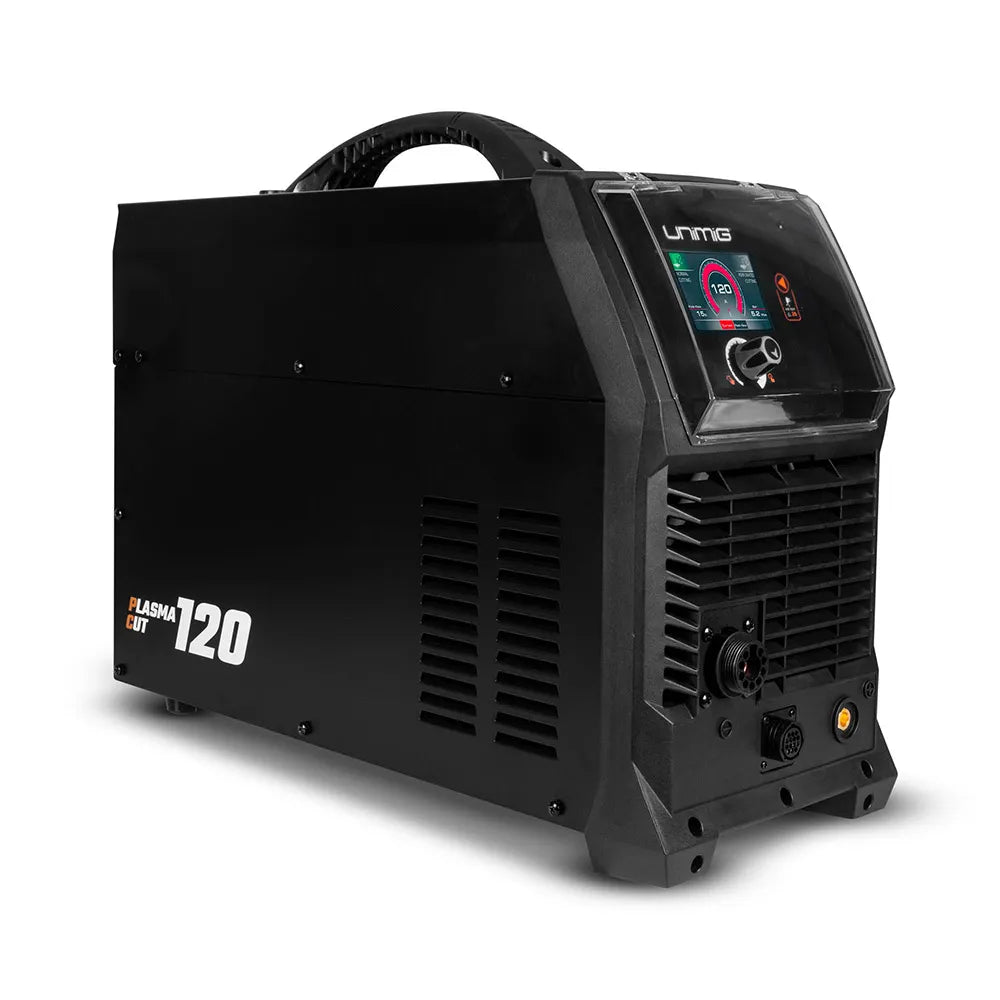

UNIMIG RAZOR CUT 120 PLASMA CUTTER U14002K
UNIMIG RAZOR CUT 120 PLASMA CUTTER U14002K
Regular price
$4,209.00 AUD
Regular price
Sale price
$4,209.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The RAZOR™ CUT 120 is designed for maximum performance, offering the highest level of cutting performance from UNIMIG’s range. Capable of clean cutting 45mm and severing 60mm, this machine is for the professional needing maximum power from a portable machine.
- Three Phase - 415V Power
- 45mm Clean Cut - Mild Steel.
- Pilot Arc Start - Start Cut without direct contact.
- 2T/4T Torch Controls - More comfort when cutting.
Machine Specifications
- Primary Input Voltage: 415V Three Phase
- Supply Plug: No plug supplied (32 AMP Recommended)
- Ieff (A): 26
- No Load Voltage (V): 420
- Protection Class: IP21
- Insulation Class: F
- Dinse Connector: 10/25
- Standard: AS/NZ60974-1
- Thermal Overload Protection: Over Temperature Warning
Plasma Cut Specifications
- Plasma Cut Current Range: 20-120A
- Plasma Cut Duty Cycle @ 40°C: 60% @ 120A, 100% @ 100A
- Mild Steel Cut Thickness: 45mm
- Mild Steel Severance Thickness: 60mm
- Aluminium Cut Thickness: 36mm
- Stainless Steel Cut Thickness: 45mm
- Air Flow Draw Off (L/min): 189
- Air Flow Pressure (Bar): 5.17 (75 psi)
- Plasma Arc Start: Pilot Arc
Specifications:
Part No | U14002K |
---|---|
Barcode | 9333521007144 |
Brand | UNIMIG |
Warranty | 3 Year |
