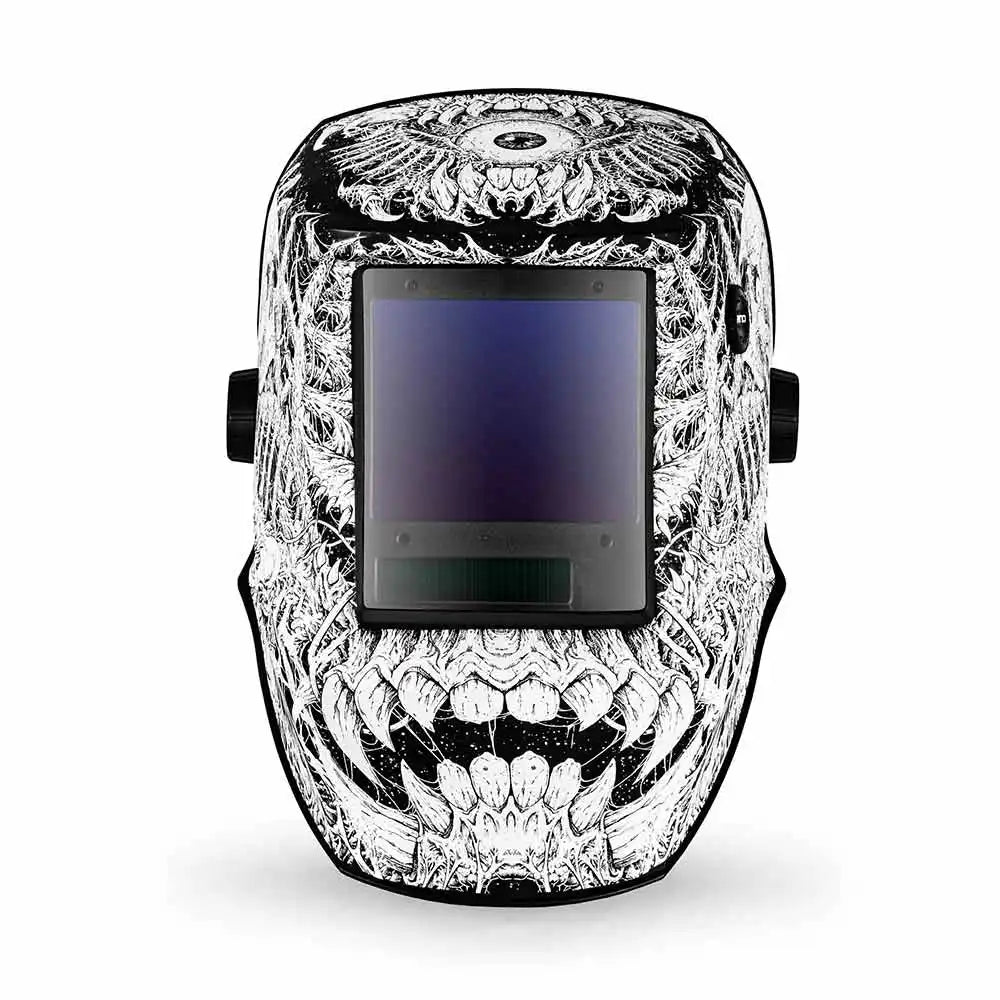

UNIMIG TRADE CARNAGE – AUTO DARKENING WELDING HELMET, RWX8000 REPLACEMENT U21021

Includes

• Trade Series Welding Helmet
• Operating Manual
• Carry Bag
• Spare Inner/Outer Lens Cover
• UNIMIG Sticker Pack

Trade Series Helmet - Carnage

Keep your eyes and face protected during every weld with our Trade Series welding helmets. The 1/1/1/1 optical classification combined with the large 100x83.4mm viewing lens means you get superior visibility in every situation. You'll also be able to save your favourite shade settings with the memory states, so your setup is instant. Choose from a sleek, clean professional black or pick from one of the eye-catching graphics.

• ELITEVISION‚Ñ¢ Lens Technology
  ELITEVISION‚Ñ¢ Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.
• 1/1/1/1 Classification
  Superior optical clarity with a 1/1/1/1 classification. Get an Auto-Darkening Filter (ADF) that’s scored top marks across the board for a crystal-clear view of your weld at every angle.
• Memory States
  Store up to three of your most frequently used shade settings with the memory state buttons and have your helmet ready to go in an instant.
• 100x83.4mm View Size
  Superior visibility in every situation. The 100x83.4mm viewing area lets you see every weld with complete clarity.
• External Grind Button
  Seamlessly switch to grind mode with the click of a button. When the helmet is in grind mode a small LED will illuminate, so you don’t need to take the helmet off to check.
• 4 Arc Sensors
  Detect every arc instantly. The four optimally positioned arc sensors trigger the lens, darkening it and keeping your eyes shielded from the start, even when you’re out of position.
• Backup Battery
  A CR2450 backup battery improves the performance and reliability of the auto-darkening filter.
• 4 Point Harness
  Get the perfect fit and stay comfortable for hours. Adjust all 4 points of contact to suit you, and have the weight spread more evenly, minimising neck strain.

Specifications

• Filter Dimensions: 114x133x9.5mm
• View Size: 100x83.4mm
• Arc Sensors: 4
• Classification: 1/1/1/1
• Light State: 4
• Dark State: 5-13
• UV/IR Protection: DIN15
• Time from Light to Dark: 0.04ms
• Time from Dark to Light: 0.1-0.9s
• Sensitivity Delay: Adjustable (1-5 for low-high)
• Power Supply: Solar Cells & CR2450 Replaceable Battery
• Operating Temperature: -10?C to 65?C
• Storage Temperature: -20?C to 85?C
• Shade Control: Yes
• Grind Mode: Yes (External)
• Minimum TIG Amperage: 3A
• Standards: AS/NZS 1337.1 B (High Impact) / AS/NZS 1338.1 (Auto-Darkening)
