UNIMIG

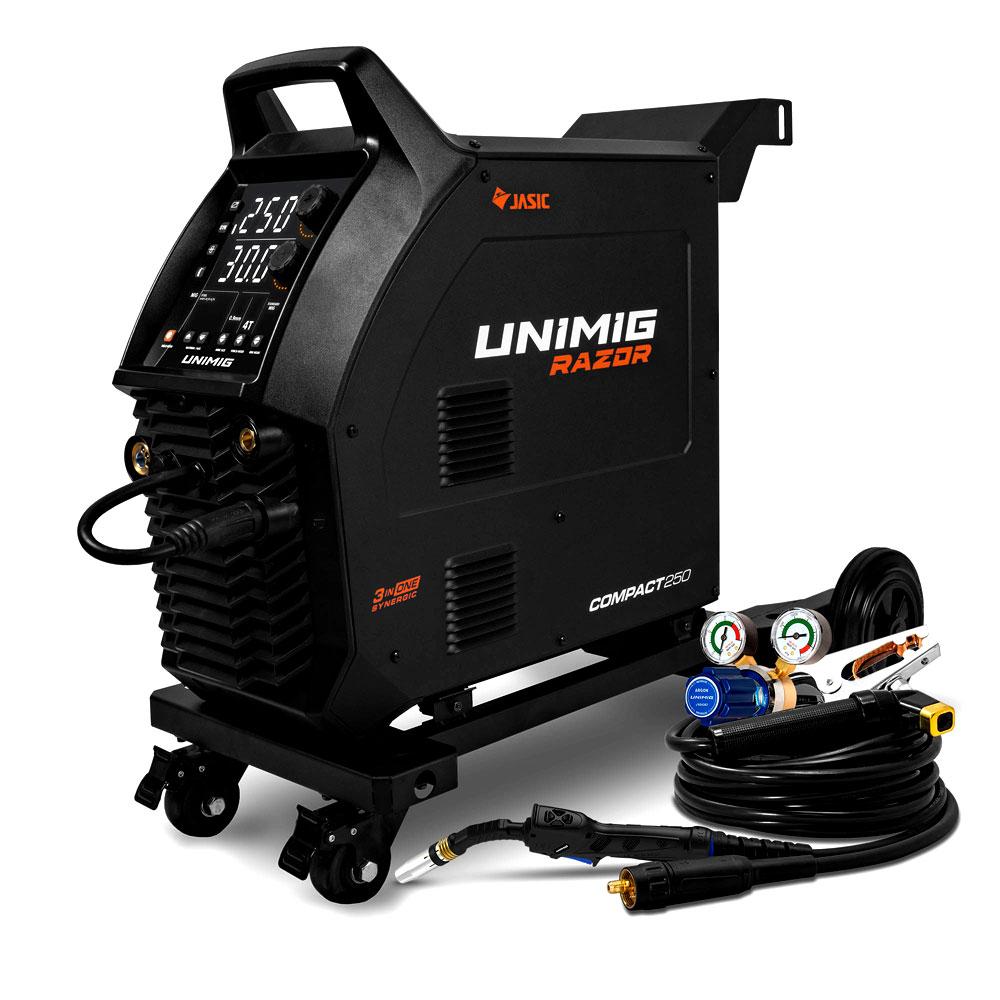

UNIMIG U11010K 240V RAZOR COMPACT 3-IN-1 MULTI 250 MIG/TIG/STICK WELDER

UNIMIG U11010K 240V RAZOR COMPACT 3-IN-1 MULTI 250 MIG/TIG/STICK WELDER

Regular price $2,599.00 AUD
Regular price Sale price $2,599.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

UNIMIG U11010K 240V RAZOR Compact 3-in-1 Multi 250 MIG/TIG/STICK Welder

Get superior MIG, TIG & STICK performance even in the toughest conditions with the professional machine in a compact case.

Includes:

  • 4m M24 Digital MIG Torch
  • 4m Twist Lock Electrode Holder
  • 4m 300 Amp Earth Clamp & Lead
  • Twin Gauge Argon Regulator
  • 1.8m Gas Hose with fittings
  • Operating Manual
  • 0.8-0.9mm V Groove Roller
  • 0.8-0.9mm F Groove Roller
  • ¬†1.0-1.2mm U Groove Roller
Suitable Material:
  • MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
  • MMA: Mild Steel, Stainless Steel, Cast Iron
  • TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze

Features:

  • Quick and easy setup with synergic MIG programs
  • 3-in-1 multi-process machine so you can MIG, TIG & STICK
  • Geared wire drive system for smooth wire feeding
  • HD Backlit Interface - This next generation interface panel is bright and easy to read in any environment.
  • Synergic MIG Control: Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire type, wire size, gas type and material thickness, and the machine does the rest. It‚Äôll pick the optimal settings for your weld.
  • Multi-Process Welding: Get the job done quickly and efficiently with our versatile three-in-one welding machine. With the ability to perform MIG, TIG, and STICK welding all in one unit, you can save valuable time and effort without sacrificing quality.
  • Digital Control MIG Torch: Our digital MIG torch allows you to adjust your settings on the fly. No more hassle of constantly adjusting your settings on a separate control panel. With our leading technology, you can easily fine-tune the amps, current and voltage at the touch of a torch button.
  • Spool Gun Ready: Make welding aluminium even easier. No need to change your existing setup. The spool gun lets you quickly switch over and get any job done with no downtime.
  • Gas & Gasless MIG: Capable of running both gas-shielded and gasless MIG wire, you can to tackle a wide variety of welding projects with ease. Whether you‚Äôre working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered.
  • Geared Wire Drive: For a consistent and smooth wire-feeding experience. The geared wire drive unit gives more power pushing to the wire, improving the wire feeding, especially in longer torches.
  • Trigger Controlled DC Lift Arc TIG: The Trigger Controlled DC Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.
  • Advanced MMA Features: This machine features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.
  • Smart Fan: Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
  • Power Factor Correction (PFC): Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
  • Push-Pull Gun Ready: Achieve smooth and steady wire feeding, especially when using softer wires such as aluminium. With a ‚ÄòPull‚Äô motor built into the torch, the wire can be fed over a greater distance, granting you the freedom to move and manoeuvre with ease while MIG welding.

Specifications:

  • Primary Input Voltage: 240V Single Phase
  • Supply Plug: 15 AMP
  • Ieff (A): 15.0
  • Rated Output: 30A/15.5V - 250A/26.5V
  • No Load Voltage (V): 65
  • Protection Class: IP23S
  • Insulation Class: H
  • Minimum Generator (kVA): 11.0
  • Dinse Connector: 35/50
  • Standard: AS/NZ60974-1
  • Wired Drive: 4 Geared
  • VRD: Yes
  • Spool Gun Connection: Yes
  • Foot Control Connection: Yes
  • Burnback Adjustment: Yes
  • Wire Inch: Yes
  • Inductance Control: Yes
  • Thermal Overload Protection: Yes
  • MIG:
    • MIG Welding Current Range: 30-250A
    • MIG Duty Cycle @ 40¬∞C:
      • 20% @ 250A
      • 60% @ 144A
      • 100% @ 112A
    • MIG Wire Size Range: 0.6-1.2mm
    • MIG Wire Spool Size: 1kg / 15kg
    • MIG Welding Thickness Range: 1-12mm
    • Drive Roller Size: 30/22 (x2)
  • TIG:
    • TIG Function Type: Trigger Controlled DC Lift Arc
    • TIG Welding Current Range: 5-250A
    • TIG Duty Cycle @ 40¬∞C:
      • 20% @ 250A
      • 60% @ 144A
      • 100% @112A
    • TIG Welding Thickness Range: 1-10mm
  • STICK:
    • STICK Welding Current Range: 20-220A
    • STICK Duty Cycle @ 40¬∞C:
      • 20% @ 220A
      • 60% @ 127A
      • 100% @ 98A
    • STICK Electrode Range: 2.5-4.0mm
    • STICK Welding Thickness Range: 2-12mm
  • Dimensions: 900mm √ó 480mm √ó 760mm
  • Weight (kg): 41.3kg

Warranty:

  • 5-Year Warranty Covered by Unimig
