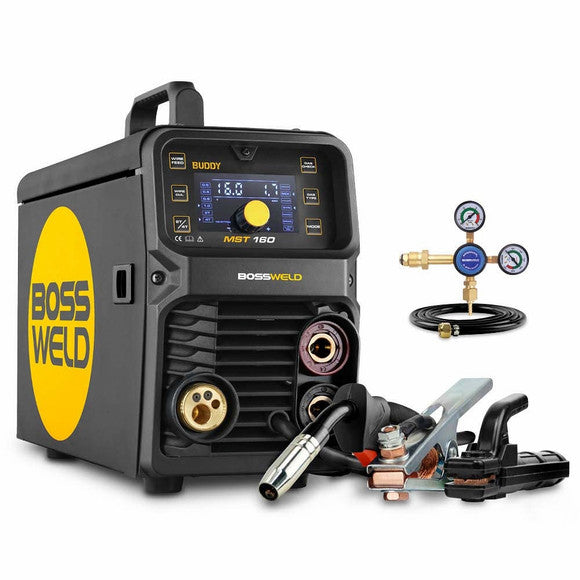

BOSSWELD BUDDY MST160 10AMP 240V

The Bossweld Buddy MST 160 is the latest in IGBT Inverter welder technology. This portable gas/gasless Synergic MIG and Stick welder is easy to set up and use. The manual and synergic welding modes makes welding easy. It enables the user to complete smooth welds with both gas and gasless MIG wire. Ideal for around the home, DIY workshops and rural applications.

Features

• DUTY CYCLE: 15% @ 160A
• GENERATOR: 9 kVA
• PLATE THICKNESS: MAX 6mm
• MATERIALS
  • Mild Steel
  • Stainless Steel
  • Cast Iron
  • Galvanised Iron

• 160A Output, 10A plug
• Digital LED Display
• MIG / Stick / TIG Welder
• Lightweight & Portable
• Suits D100 (1 kg) & D200 (5 kg) Spools
• Runs 0.6 — 0.9mm Wires
• Up to 3.2mm Electrodes
• 2T / 4T
• IGBT Technology
• Generator Safe
• VRD - Increased Safety
• Australian Standard AS 60974-6

Specifications

• Primary Input Power: Single Phase 240V 50-60 HZ +/-10%
• Duty Cycle @ 40°C
  • MIG / TIG 15% @ 160A
  • MMA 15%@150A
• Open Circuit Voltage: 57V
• Current Range
  • MIG 50–160A
  • TIG 10–160A
  • MMA 10–150A
• IMax
  • MIG 28A
  • TIG 22A
  • MMA 29A
• Ieff
  • MIG 10A
  • TIG 9A
  • MMA 10A
• Protection/Insulation Class: IP21S / S
• Wire Diameter Range: 0.6mm to 1.0mm
• Electrode Diameter Range: 1.6mm to 3.2mm
• Thermal Overload: Yes
• Minimum KVA: 9
• Dimensions/Weight: 443x161x281mm / 8kg

Application

• General Repairs & Maintenance
• Sheetmetal & Car Repair
• Rural Applications
• DIY & Home Workshops
• Light Trade Applications

Includes

• Bossweld Buddy MST 160 Inverter Welder 240V
• BZ15 MIG Torch 3Mt
• Tong Electrode Holder 200Amp 3Mt
• Earth Clamp 200Amp 2.5Mt
• Argon Twin Gauge Regulator
• Gas Hose
• Drive Roller 0.8/0.9mm Knurled Groove (Fitted)
• Drive Roller 0.8/0.9mm V Groove Spare
