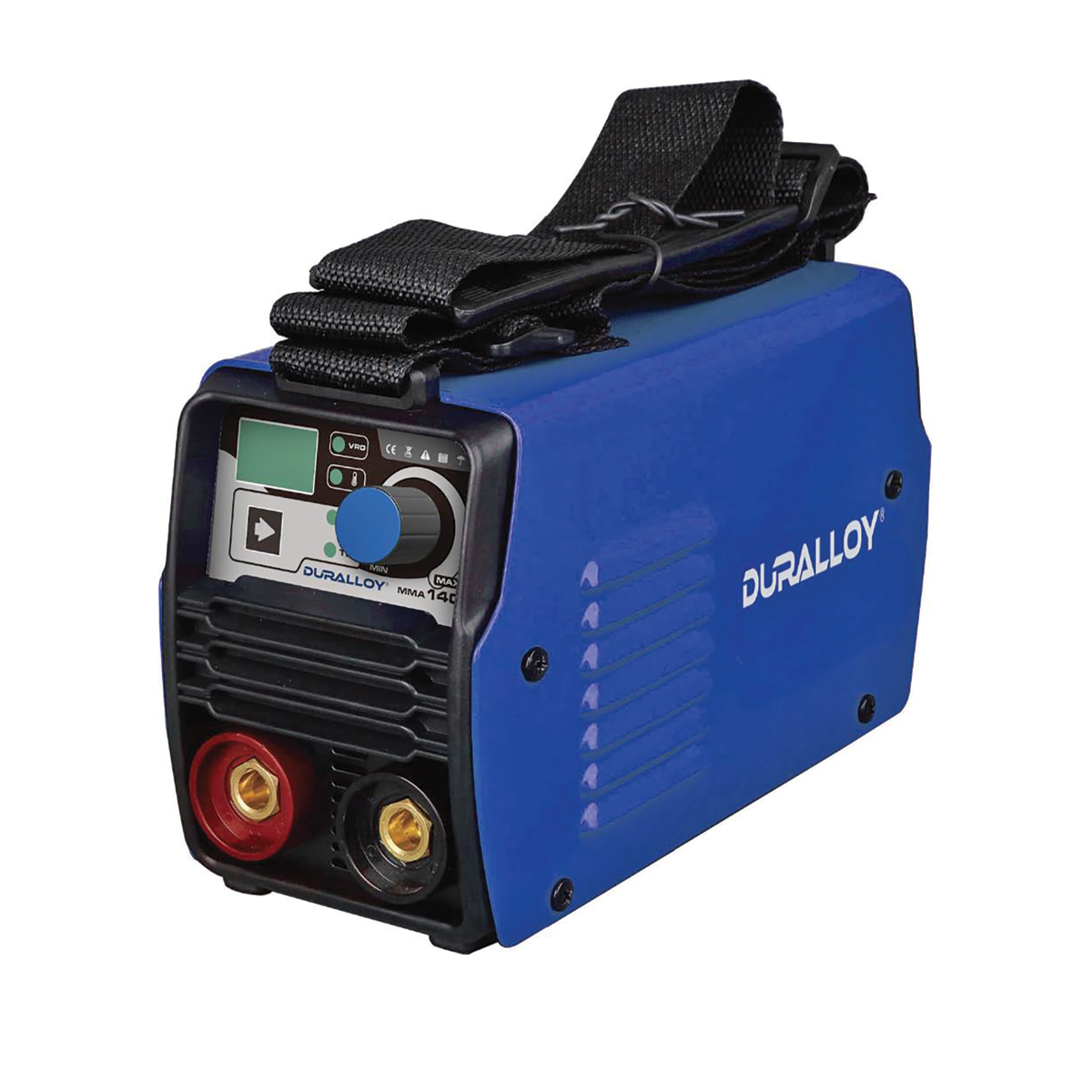

Duralloy 140A MMA/TIG Welder
Duralloy 140A MMA/TIG Welder
Regular price
$270.00 AUD
Regular price
Sale price
$270.00 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
PORTABLE
The machine weighs just 2kg ensuring ease of portability.
DIGITAL DISPLAY
Variable amperage control with digital meter.
PROTECTIONS
Equipped with temperature, voltage and current sensors for greater protection.
FEATURES
- Highly portable
- 10 Amp primary plug
- IP21S rating
- Arc Force, Hot Start, Anti Stick & VRD all built-in
- MMA & LIFT TIG functions
- Exceptional smooth Arc characteristics
APPLICATIONS
- Farm & rural maintenance
- Portable on-site repair & maintenance
- Stainless steel fabrication
MATERIALS
- Mild steel
- Stainless steel
- Cast Iron
- Dissimilar metals
SPECIFICATIONS
| Power Supply | 1-240kW ± 10% |
| Supply Plug | 10 Amps |
| Frequency | 50/60Hz |
| Input Current | 30/10 Amps |
|
Duty Cycle 40oC 10min |
140A @ 15% 70A @ 60% 54A @ 100% |
|
No Load Voltage |
64V |
| Welding Current | 10 - 140A |
| Efficiency | ≥ 85% |
| Net Weight | 2kg |
| Dimensions | 225mm x 95mm x 130mm |
| Insulation Class | H |
|
Protection Class |
IP21S |
| Cooling | Fan |
|
Electrode Diameter |
Ø1.6 - Ø3.2 |
|
Power Factor |
0.76 |
