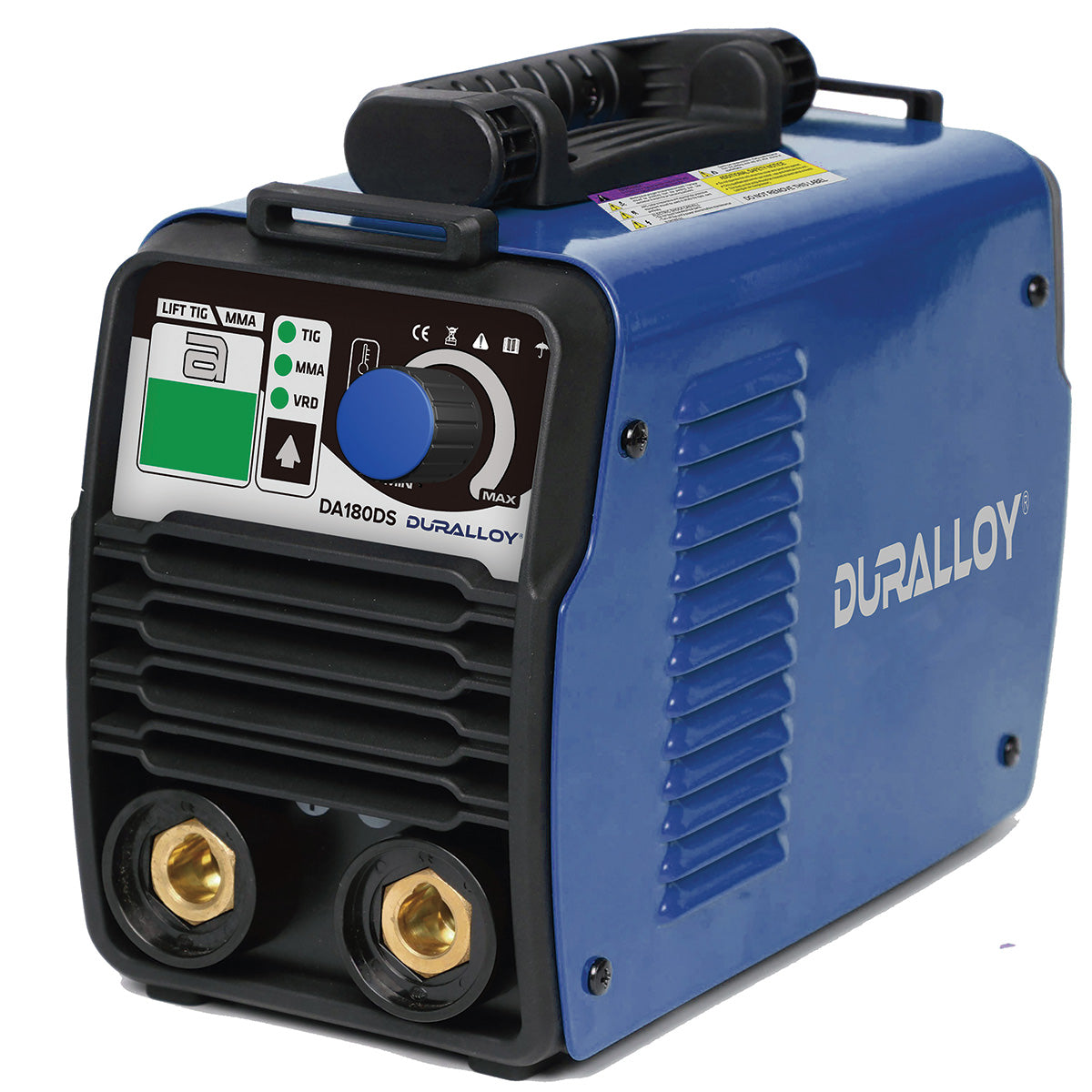

Duralloy 180A MMA/TIG Welder
Duralloy 180A MMA/TIG Welder
Couldn't load pickup availability
PORTABLE
The machine weighs just 3.5kg ensuring ease of portability.
DIGITAL DISPLAY
Variable amperage control with digital meter.
PROTECTIONS
Equipped with temperature, voltage and current sensors for greater protection.
GENERATOR FRIENDLY
Designed to work from power generators (10Kva).
FEATURES
- Highly portable
- High Duty Cycle 80Amps @ 100%
- IP21S Rating
- Generator-friendly
- VRD
- Exceptional smooth Arc characteristics
- TIG process with optional TIG torch and regulator
APPLICATIONS
- General Fabrication
- Stainless Fabrication
- On-site Fabrication
- Farm maintenance
MATERIALS
- Mild Steel
- Stainless Steel
SPECIFICATIONS
|
Power Supply |
1-220/230/240kW ± 10% |
|
Supply Plug |
15 Amp |
|
Frequency |
50/60Hz |
|
Input Power |
5.8kW |
|
Input Current |
15/34A |
|
Duty Cycle 40oC 10min |
180A 20% 104A 60% 80A 100% |
|
No Load Voltage |
80V |
|
Welding Current |
10 - 180A |
|
Efficiency |
≥ 85% |
|
Net Weight |
3.5kg |
|
Dimensions |
265mm x 120mm x 218mm |
|
Insulation Class |
H |
|
Protection Class |
IP23 |
|
Cooling |
Auto Fan |
|
Electrode Diameter |
Ø1.6 - Ø4.0 |
|
Electrode Type |
6013, 7018, etc |
|
Power Factor |
0.76 |
