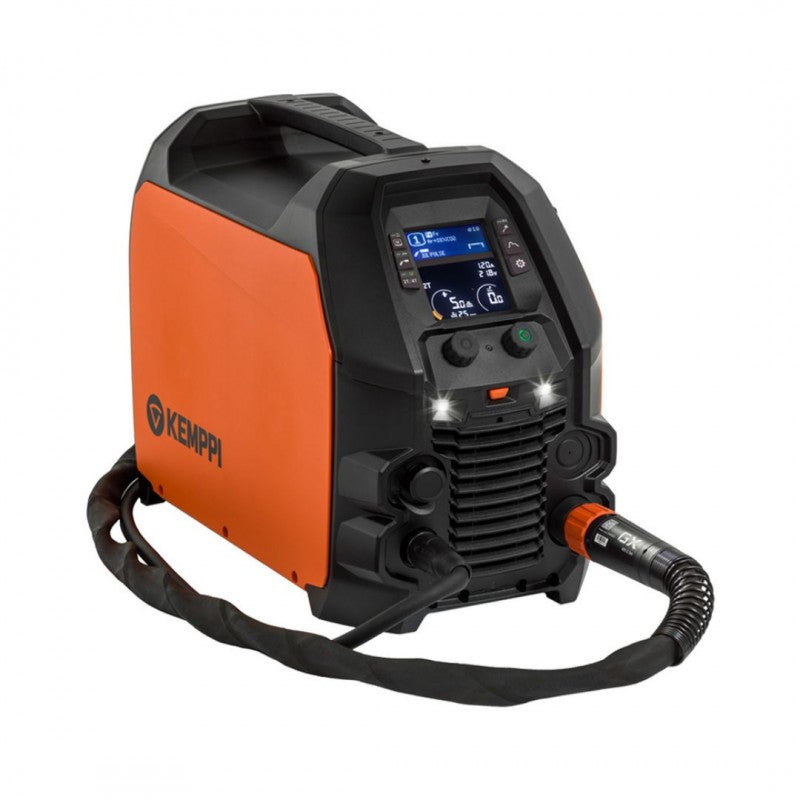

MASTER-M 355G PACKAGE INC GX305G35 GUN EARTH LEAD
Alert me if this item is restocked.
We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.
MASTER-M 355G PACKAGE INC GX305G35 GUN EARTH LEAD
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
Compact MIG/MAG welder with manual, synergic (Auto), pulse (Auto Pulse), and double pulse welding options. Provides 350 A with a 40% duty cycle. Intelligent welding parameter setting with Weld Assist. Color LCD display and LED work lights for excellent user experience. Includes WiseFusion and work pack welding software programs inc. Fe, Ss, Al, CuSi, CuAl, Fe Metal, Fe Rutil, FC-CrNiMo materials. Suitable for generator use.
Technical data
Description Value
Mains connection voltage 380...460 V ±10 %
Mains connection phases 3~50/60 Hz
Mains connection cable type H07RN-F
Mains connection cable size 4 mm²
Maximum supply current [I1max] 21.3 ... 17.1 A
Effective supply current [I1eff] 13.5 ... 10.8 A
Rated maximum input power 14 kVA
Description Value
[S1max]
Mains fuse 16 A
Idle state power consumption
[P1idle]
18 W
No-load state power consumption
(MMA), power save
18 W
No-load state power consumption
(MMA), fans ON
119 W
No-load voltage [U0] 55 ... 69 V
Open circuit voltage [Uav] 53 ... 64 V
Output, duty cycle % at rated max.
current, MIG
40 %
Output at +40 °C, rated max current,
MIG
350 A
Output at +40 °C, 60% MIG 280 A
Output at +40 °C, 100% MIG 220 A
Output range, MIG 15 A / 10 V ... 350 A / 45 V
Output range, TIG 15 A / 1 V ... 350 A / 45 V
Output range, MMA 15 A / 10 V ... 330 A / 45 V
Voltage adjustment range, MIG 10 ... 40 V
VRD voltage 24 V
Power factor at rated maximum
current [λ] 0.91
Voltage supply for auxiliary devices 12 V
Voltage supply for cooling unit 24 V, 380...460 V
Welding connection type Euro
Wire feed mechanism 4-roll, Single-motor
Diameter of feed rolls 32 mm
Filler wire diameter, Fe 0.8 ... 1.2 mm
Filler wire diameter, Ss 0.8 ... 1.2 mm
Filler wire diameter, MC/FC 0.8 ... 1.2 mm
Description Value
Filler wire diameter, Al 0.8 ... 1.2 mm
Wire feed speed 0.5 ... 25 m/min
Maximum wire spool weight 20 kg
Maximum wire spool diameter 300 mm
Maximum shielding gas pressure 0.5 MPa
Control panel, model Custom LCD
Control panel, display Color LCD
Control panel, controls 2 control knobs, Push buttons
Control panel, type of installation Built-in
Control panel, input voltage (DC) 12 V
Wired communication type CAN bus
Operating temperature -20 ... 40 °C
Storage temperature -40 ... 60 °C
Recommended minimum generator
power [Sgen] 20 kVA
Degree of protection (fully installed) IP23S
External dimensions, length 602 mm
External dimensions, width 298 mm
External dimensions, height 447 mm
Weight without accessories 27 kg
