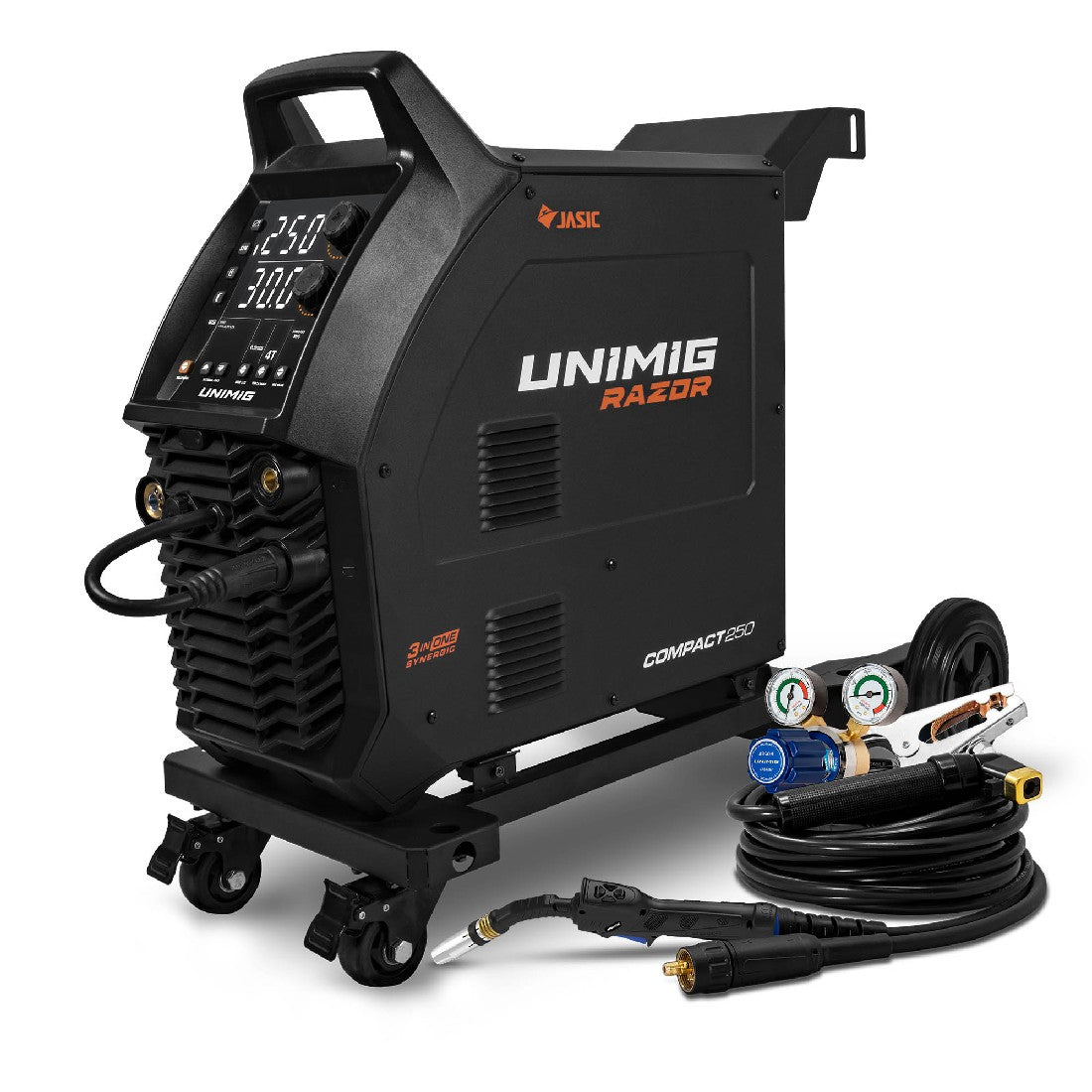

Razor Compact 250 Welder New Gen

Razor Compact 250 Welder New Gen

Regular price $2,599.00 AUD
Regular price Sale price $2,599.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Get superior MIG, TIG & STICK performance even in the toughest conditions with the professional machine in a compact case.

  • Quick and easy setup with synergic MIG programs
  • Spool gun and Push-Pull gun compatible for the best aluminium welds
  • 4 geared wire drive system for the ultimate wire feeding experience
  • A huge 5-year warranty

U11010K

HD Backlit Interface



This next generation interface panel is bright and easy to read in any environment.



Synergic MIG Control



Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire type, wire size, gas type and material thickness, and the machine does the rest. It’ll pick the optimal settings for your weld.



Multi-Process Welding



Get the job done quickly and efficiently with our versatile three-in-one welding machine. With the ability to perform MIG, TIG, and STICK welding all in one unit, you can save valuable time and effort without sacrificing quality.



Digital Control MIG Torch



Our digital MIG torch allows you to adjust your settings on the fly. No more hassle of constantly adjusting your settings on a separate control panel. With our leading technology, you can easily fine-tune the amps, current and voltage at the touch of a torch button.



Spool Gun Ready



Make welding aluminium even easier. No need to change your existing setup. The spool gun lets you quickly switch over and get any job done with no downtime.



Gas & Gasless MIG



Capable of running both gas-shielded and gasless MIG wire, you can to tackle a wide variety of welding projects with ease. Whether you’re working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered.



Geared Wire Drive



The most consistent and smoothest wire-feeding experience there is. With a four geared wire drive unit, there’s more power pushing the wire, improving the wire feeding, especially in longer torches.



Trigger Controlled DC Lift Arc TIG



The Trigger Controlled DC Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.



Advance MMA Features



This machine features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.



Smart Fan



Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.



Power Factor Correction (PFC)



Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.



Push-Pull Gun Ready



Achieve smooth and steady wire feeding, especially when using softer wires such as aluminium. With a ‘Pull’ motor built into the torch, the wire can be fed over a greater distance, granting you the freedom to move and manoeuvre with ease while MIG welding.



Product No: U11010K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

Ieff (A)

15.0

RATED OUTPUT

30A/15.5V - 250A/26.5V

NO LOAD VOLTAGE (V)

65

PROTECTION CLASS

IP23S

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

11.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze / MMA: Mild Steel, Stainless Steel, Cast Iron / TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze"

WARRANTY (Years)

5

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

30-250A

MIG DUTY CYCLE @ 40°C

20% @ 250A / 60% @ 144A / 100% @ 112A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

5kg / 15kg

MIG WELDING THICKNESS RANGE

1-12mm

DRIVE ROLLER SIZE

30/22 (x2)

TIG SPECIFICATIONS

TIG FUNCTION TYPE

Trigger Controlled DC Lift Arc

TIG WELDING CURRENT RANGE

5-250A

TIG DUTY CYCLE @ 40°C

20% @ 250A / 60% @ 144A / 100% @ 112A

TIG WELDING THICKNESS RANGE

1-10mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-220A

STICK DUTY CYCLE @ 40°C

20% @ 220A / 60% @ 127A / 100% @ 98A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

SIZE & WEIGHT

DIMENSIONS (mm)

900×480×760

WEIGHT (kg)

41.3

MACHINE FEATURES

WIRE DRIVE

4 Geared

VRD

YES

SPOOL GUN CONNECTION

YES

FOOT CONTROL CONNECTION

YES

BURNBACK ADJUSTMENT

YES

WIRE INCH

YES

INDUCTANCE CONTROL

YES

THERMAL OVERLOAD PROTECTION

YES
