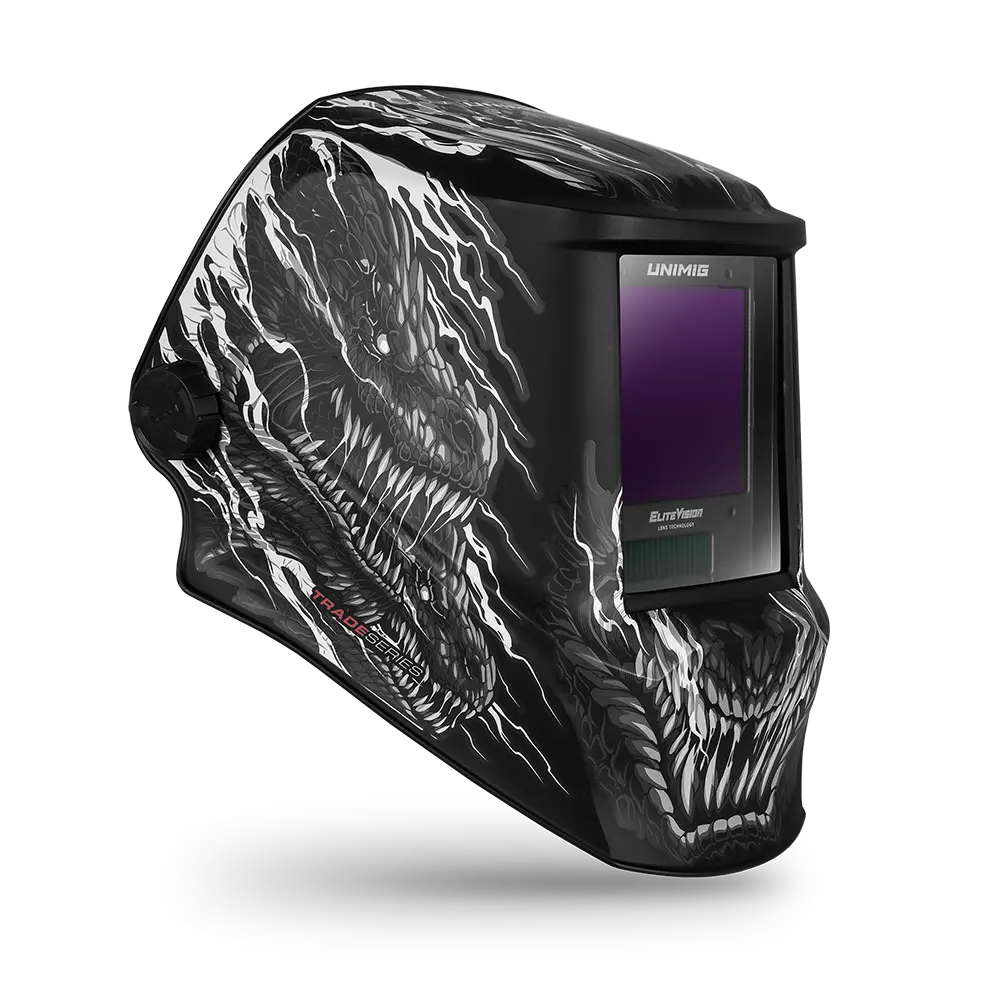

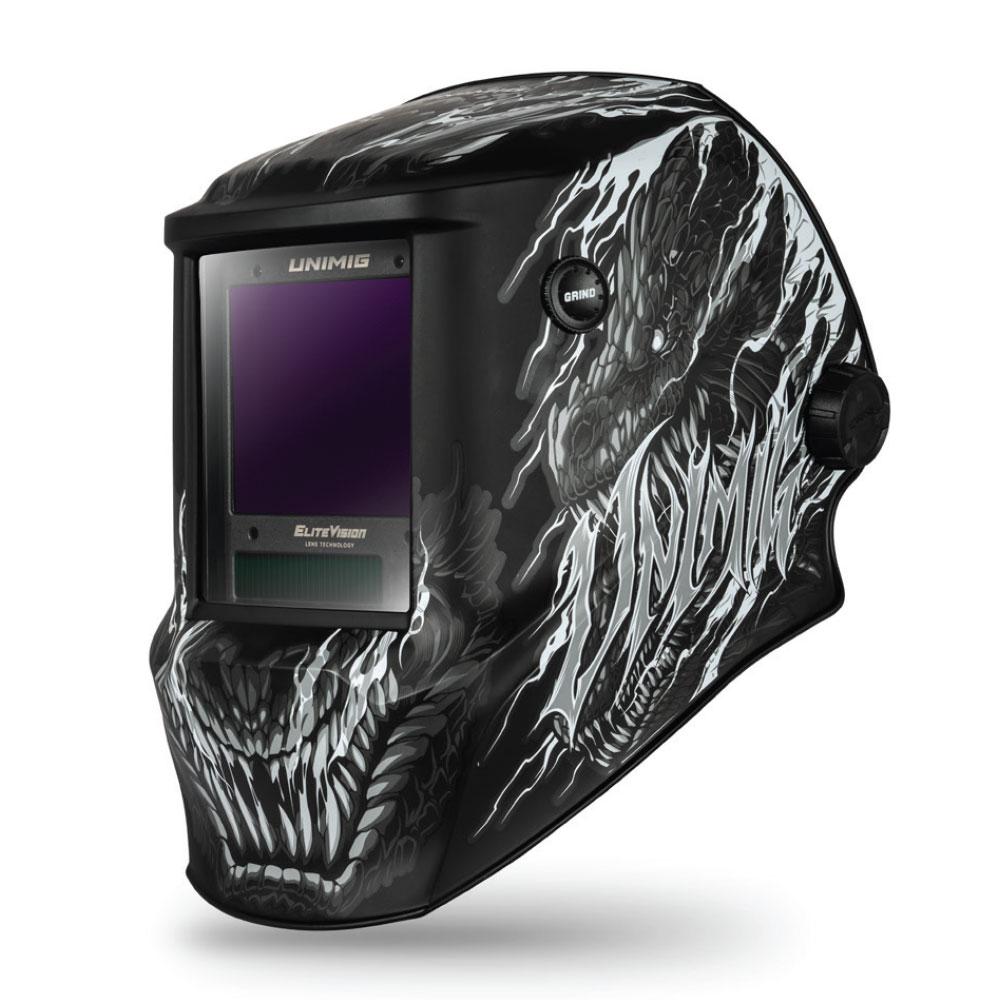

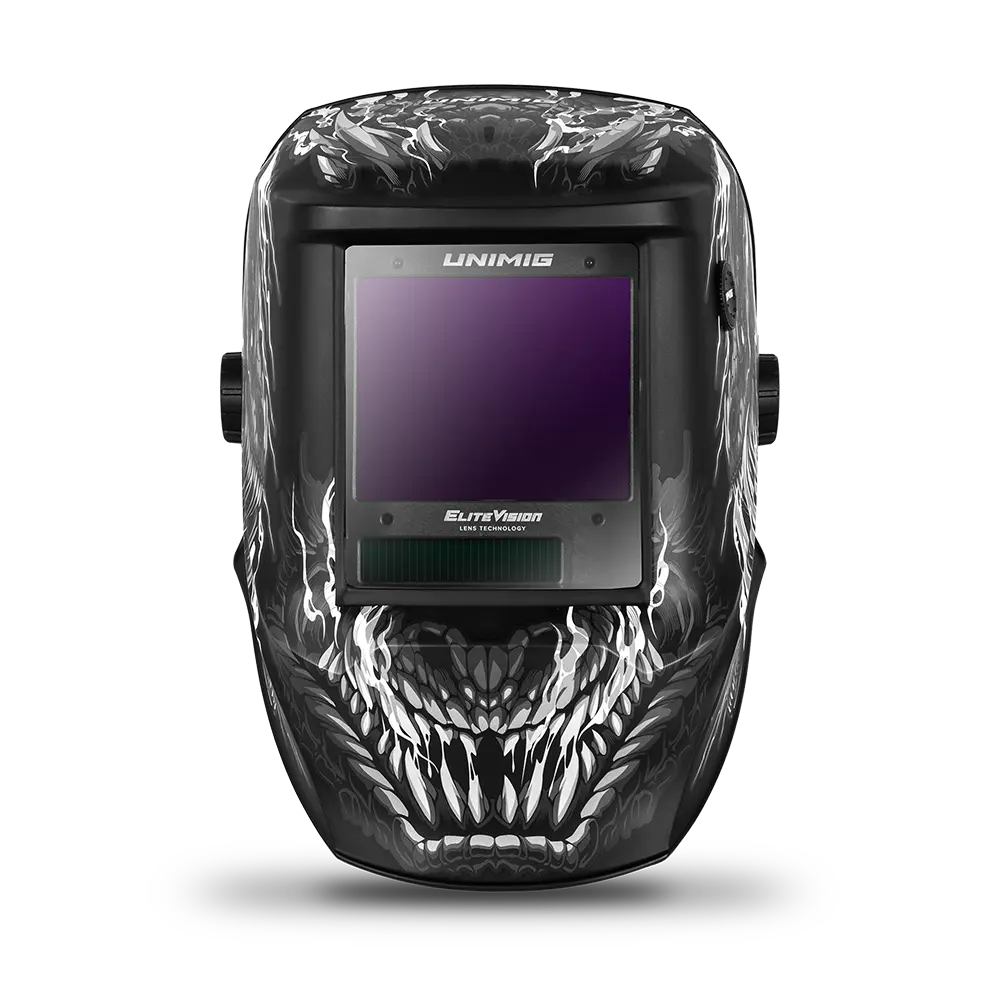

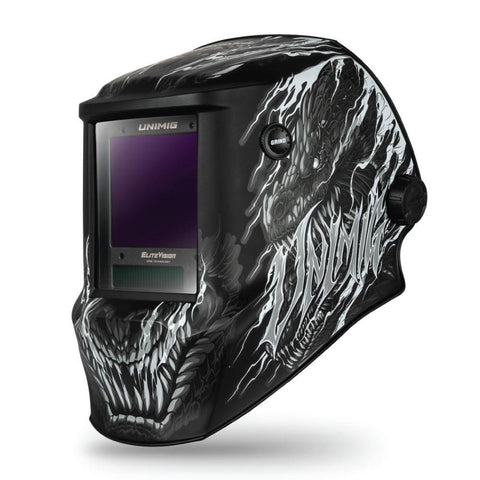

TRADE SERIES WELDING HELMET – DRAGON

UNIMIG U21027 Trade Series Welding Helmet - Dragon

Features:

• 1/1/1/1 Classification - Superior optical clarity with a 1/1/1/1 classification. Get an Auto-Darkening filter (ADF) That's scored top marks across the board for crystal-clear view of your weld at every angle
• Memory States - Store up to three of your most frequentlu used shade settings with the memory state buttons and have your helmet ready to go in an instant.
• 100 x 83.4mm View Size - Superior visibility in every situation. the 100 x 83.4mm viewing area lets you see every weld with complete clarity.
• External Grind Button - Seamlessly switch to grind mode with the click of a button. When the helmet is in the grind mode a small LED will illuminate, so you don'd need to take the helmet off to check.
• 4 Arc Sensors - Detect every arc instantly. The four optimally positioned arc sensors trigger the lens, darkening it and keeping your eyes sheilded from the start, even when you're out of position
• Backup Battery - A CR2450 Back up battery improves the performance and reliability of the auto-darkening filter.
• 4 Point Harness - Get the perfect fit and stay comfortable for hours. Adjust all 4 points of contact to suit you and have weight spread more evenly, minimising neck strain.

Specifications:

• Filter dimentions: 114 x 166 x 9.5mm
• View Size: 100 x 83.4mm
• Arc Sensors : 4
• Classification: 1/1/1/1
• Light State: 4
• Dark State: 5 - 13
• UV/IR Protection: DIN15
• Time from Light to Dark: 0.04ms
• Time from Dark to Light:  0.1 - 0.9s
• Sensitivity Delay: Adjustable (1-5 for low-high)
• Power Supply: Solar Cells & CR2450 Replacable Batterty
• Operating Temperature: -10ºC to 65c
• Storage Temperature: -20ºC to 85ºC
• Shade Control: Yes
• Grind Mode: Yes (External)
• Minimum TIG Amperage: 3A
• Standards:
  • AS/NZS 1337.1 B (High Impact)
  • AS/NZS 1338.1 (Auto-Darkening)

Warranty:

• 3 Year warranty Covered by Unimig
