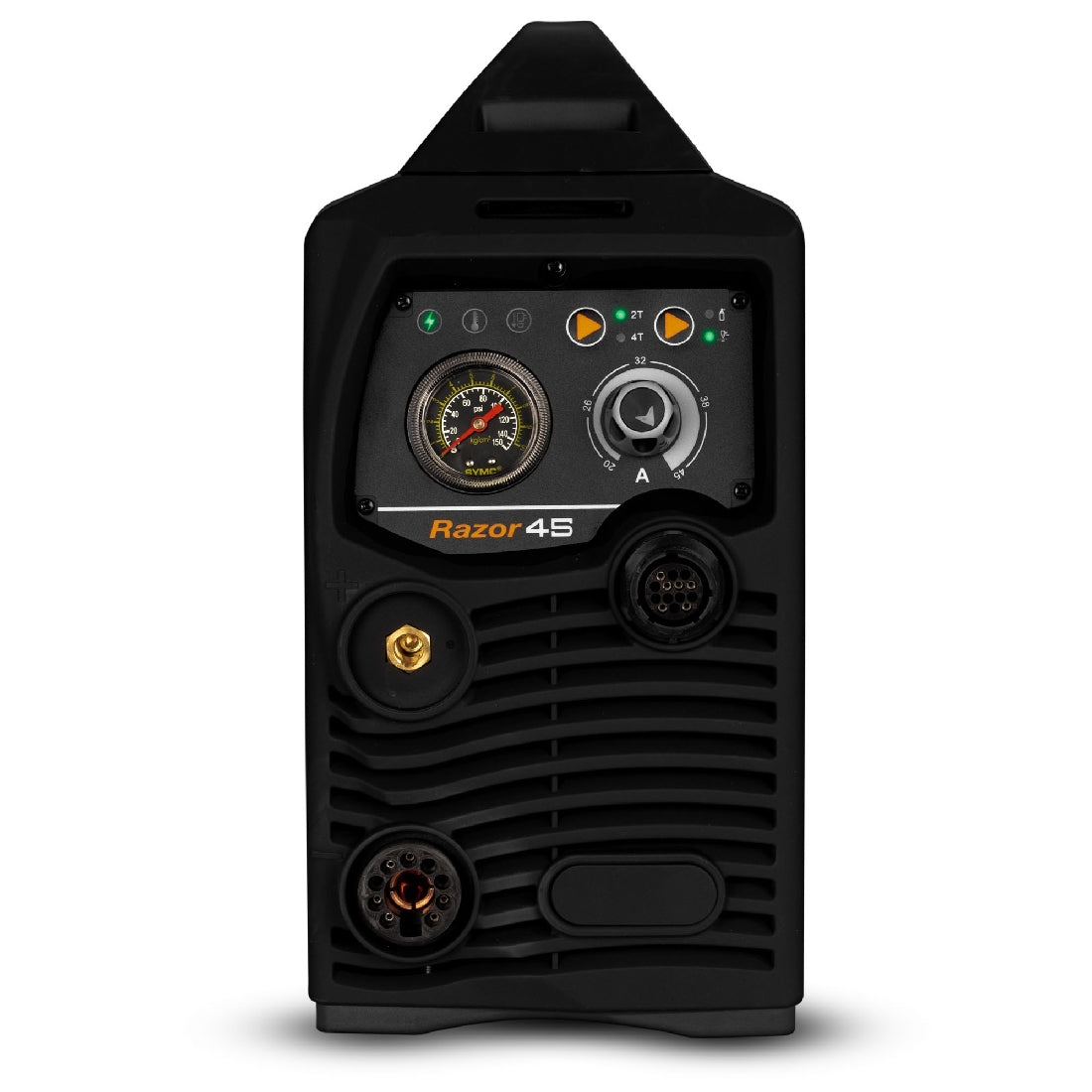

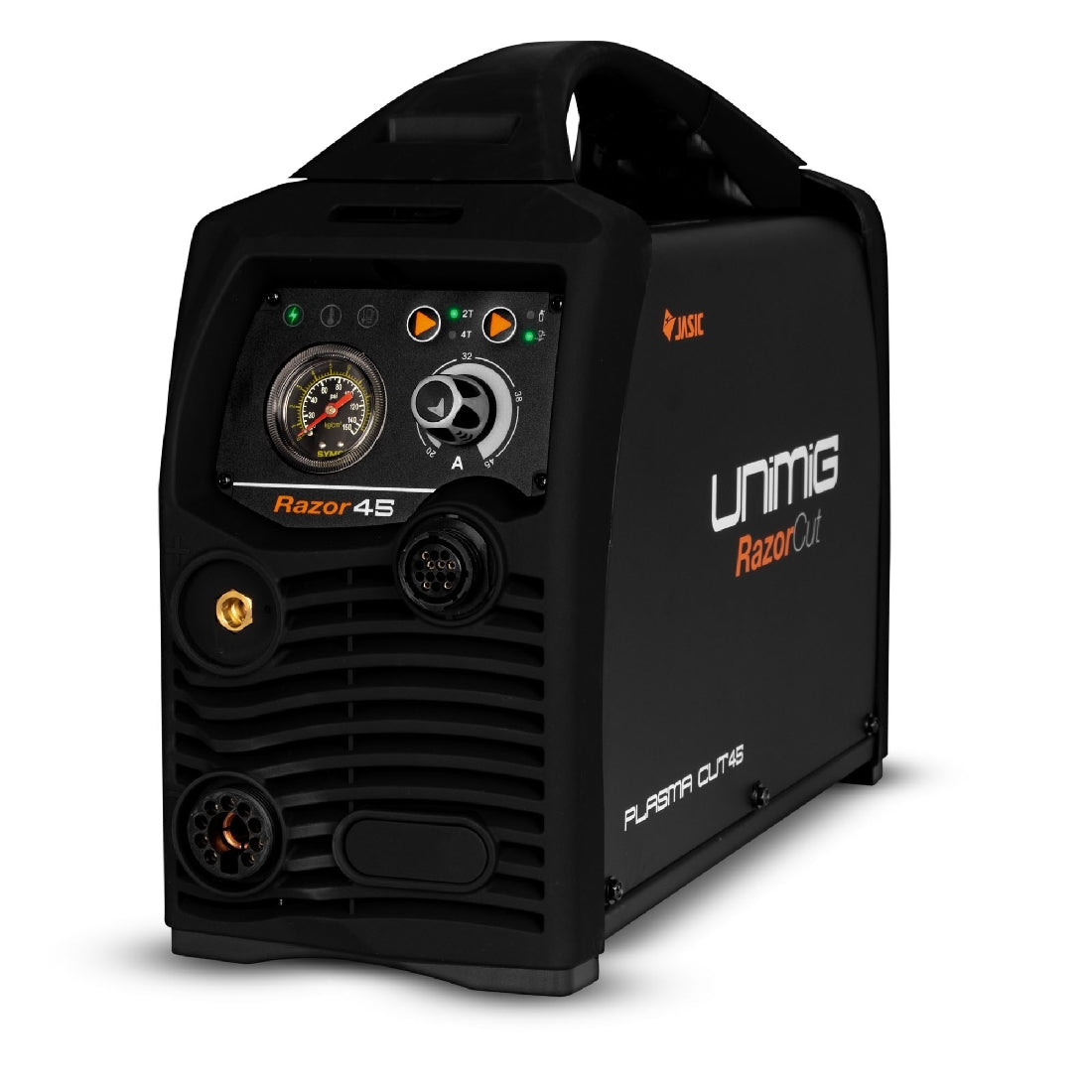

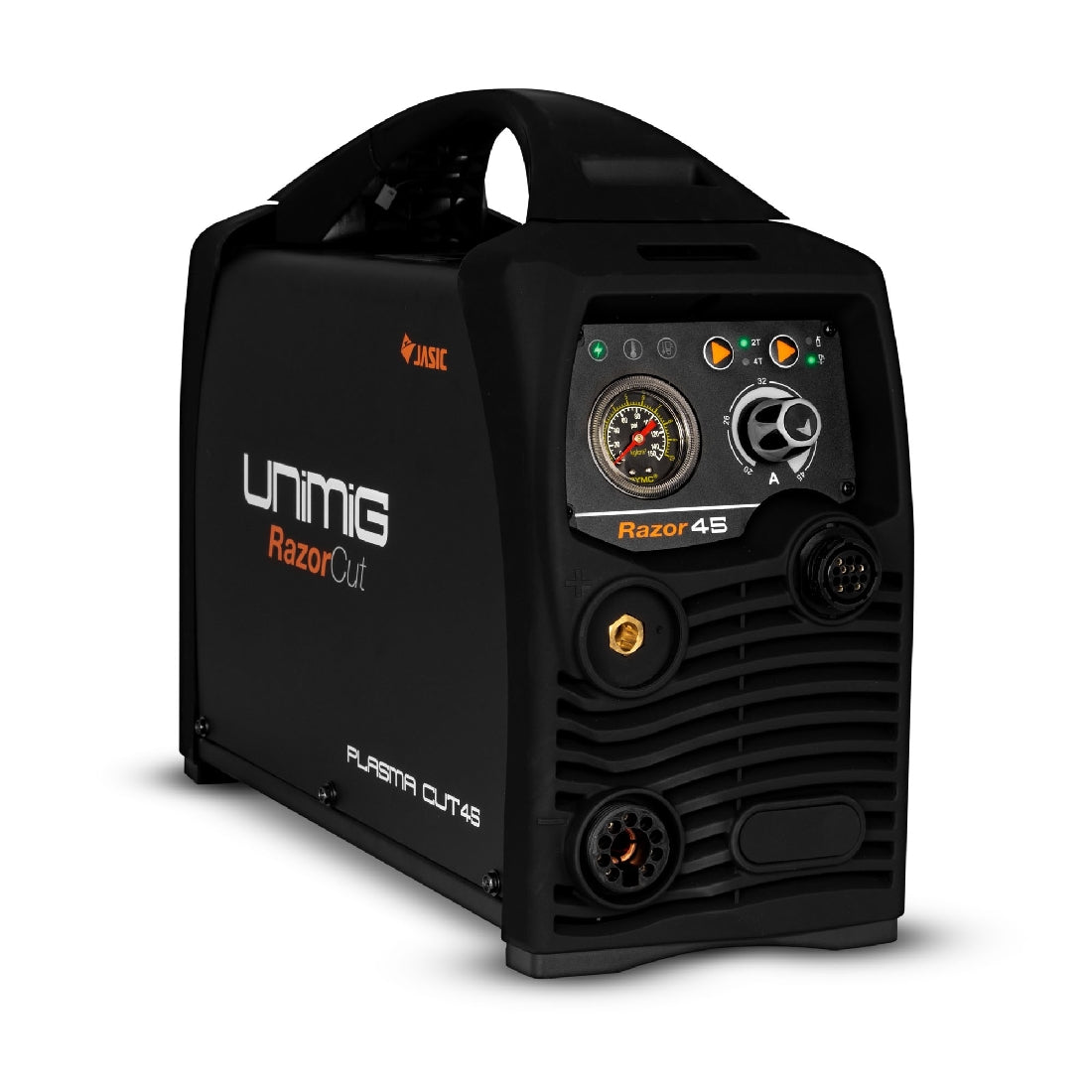

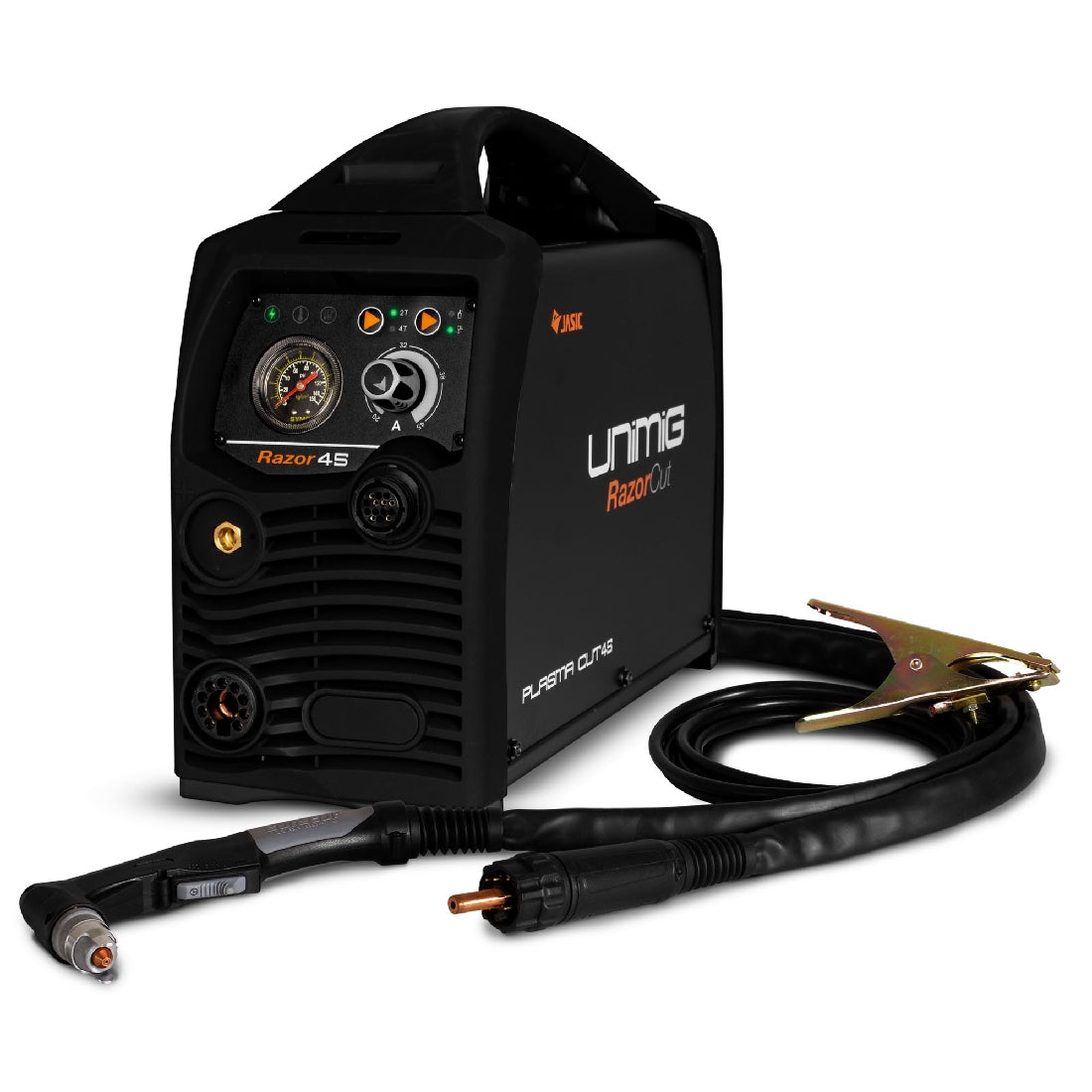

Unimig Razor Cut 45

The RAZOR™ CUT 45 is the perfect plasma cutter for the professional who wants a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR™ CUT 45 boasts some serious cutting power with 16mm clean cut and 20mm severance.

KUPJRRW45





15 AMP PLUG

CONNECT TO ANY 15 AMP OUTLET.

16mm CLEAN CUT

MILD STEEL.

PILOT ARC START

START CUT WITHOUT DIRECT CONTACT.

2T/4T TORCH CONTROLS

MORE COMFORT WHEN CUTTING.

PILOT ARC START



Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.



FEATURE VIDEO



Check out all of the features on the RAZOR™ CUT 45 Plasma Cutter.



• SPECIFICATIONS
• PACKAGE CONTENTS
• MANUALS & DOWNLOADS
• WARRANTY INFORMATION

Product No: KUPJRRW45

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

5.5

RATED OUTPUT

98V

PROTECTION CLASS

IP21S

INSULATION CLASS

F

MINIMUM GENERATOR (kVA)

10.0

DINSE CONNECTOR

10/25

STANDARD

AS/NZ60974-1

WARRANTY (Years)

3

SIZE & WEIGHT

DIMENSIONS (mm)

410x165x330mm

WEIGHT (kg)

9.8kg

PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE

20-45A

PLASMA CUT DUTY CYCLE @ 40°C

25% @ 45A

MILD STEEL CUT THICKNESS

16mm

MILD STEEL SEVERANCE THICKNESS

20mm

ALUMINIUM CUT THICKNESS

8mm

ALUMINIUM SEVERANCE THICKNESS

10mm

STAINLESS STEEL CUT THICKNESS

8mm

STAINLESS STEEL SEVERANCE THICKNESS

10mm

AIR FLOW DRAW OFF (L/min)

189

AIR FLOW PRESSURE (Bar)

5.17 (75 psi)

PLASMA ARC START

Pilot Arc
