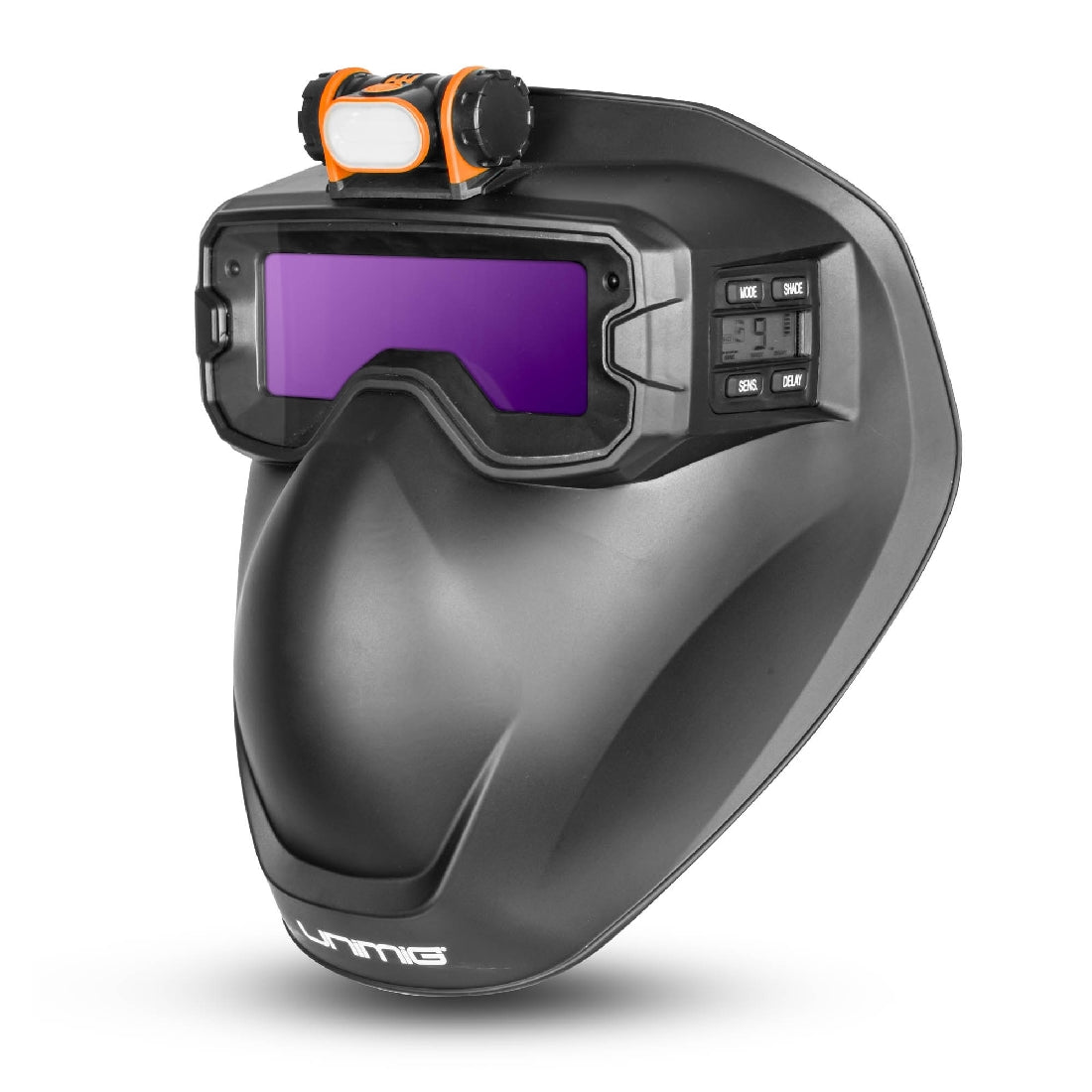

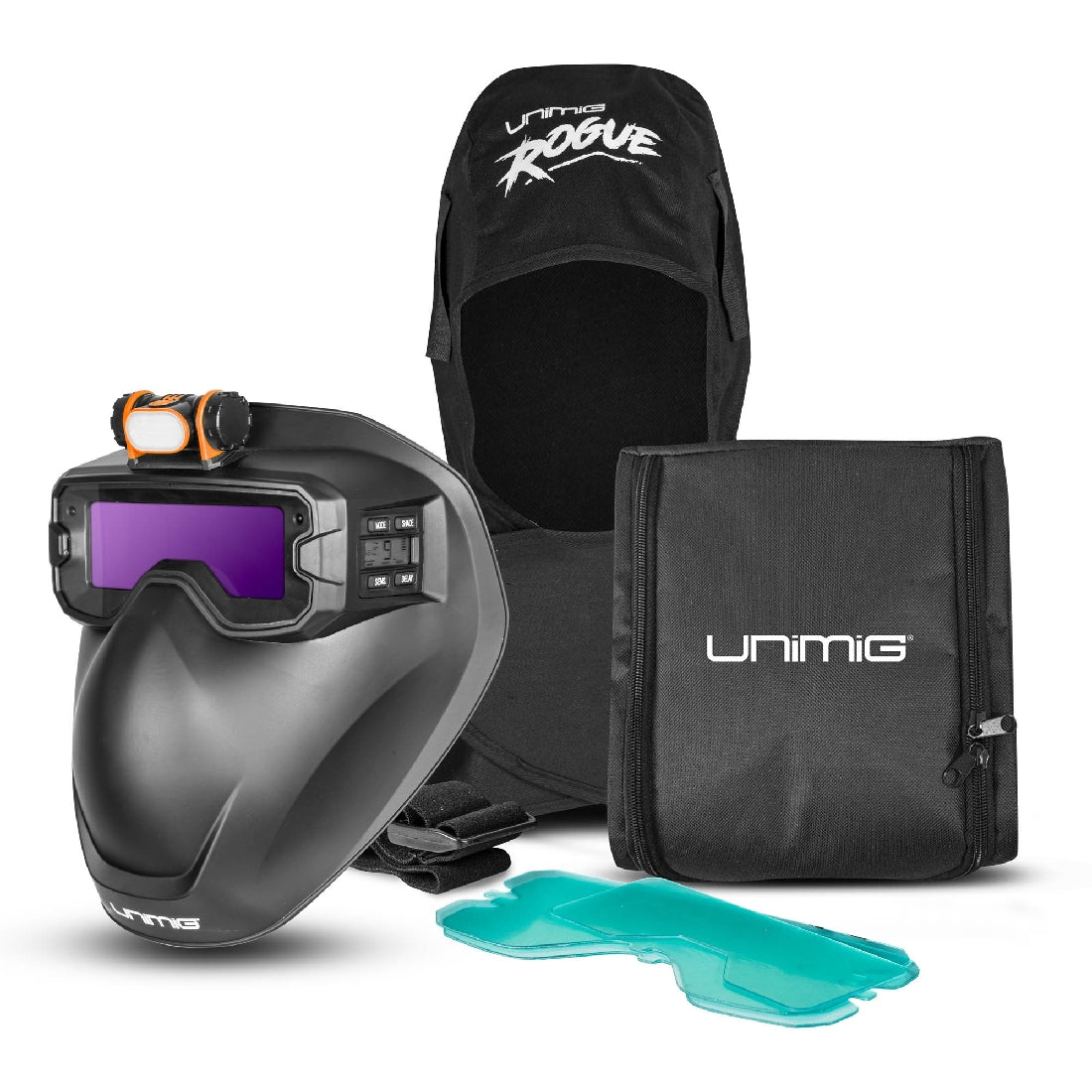

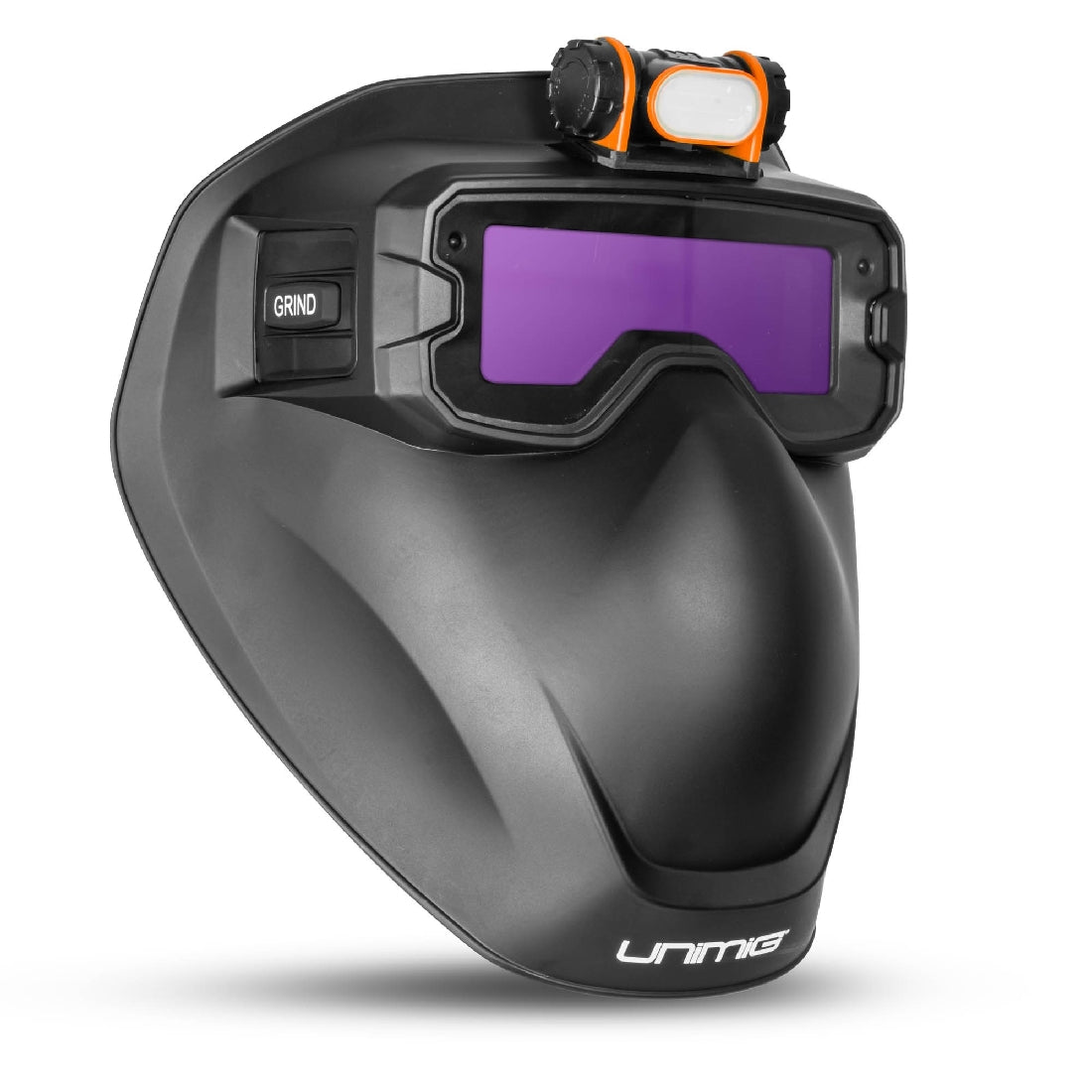

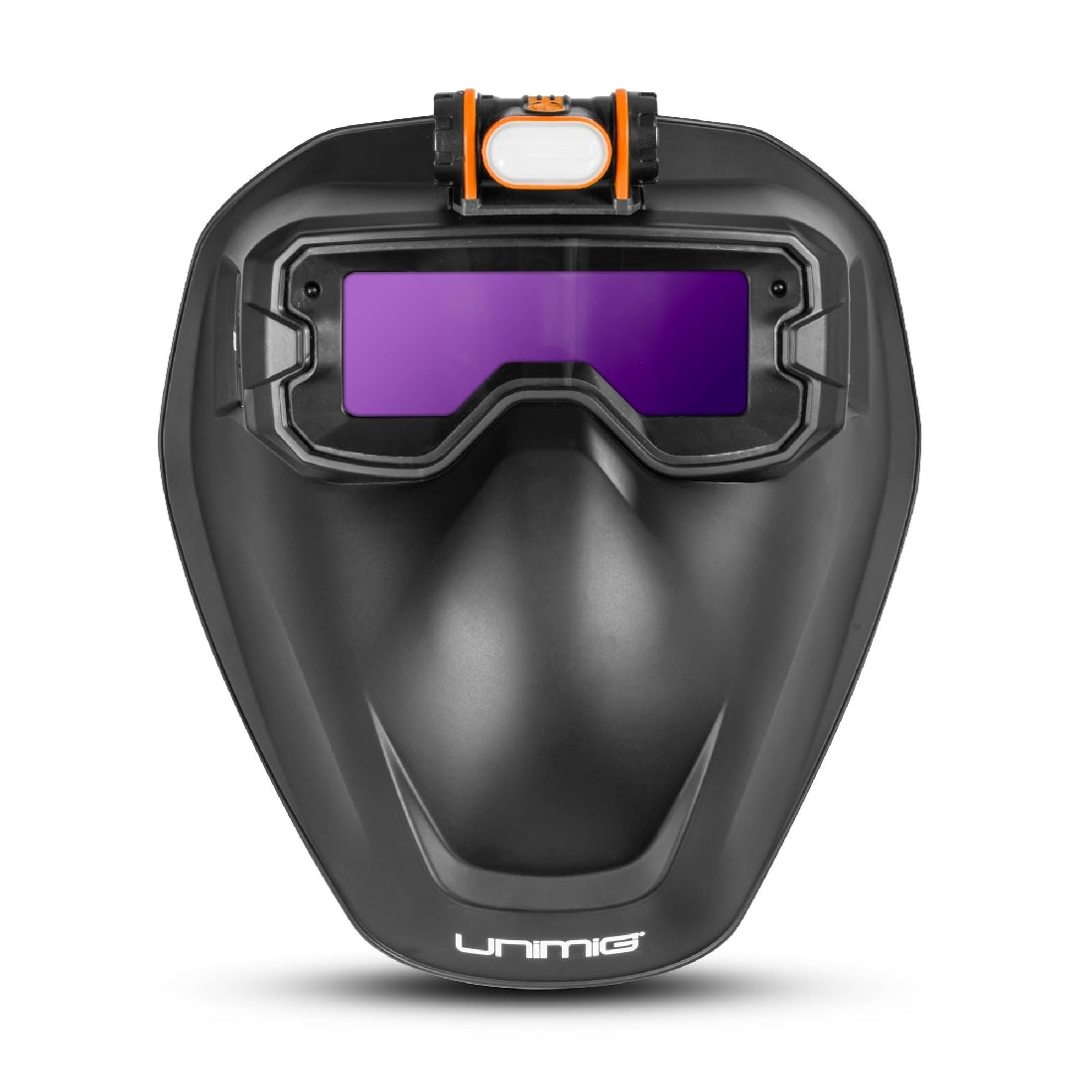

Unimig Auto Darkening Goggle Kit

The UNIMIG Welding Goggles provide protection to your face and eyes from spatter and UV/IR radiation. Fitted with 2 arc sensors, the UNIMIG Welding Goggles provide 5-13 Shade control as well as GRIND mode for use when grinding. It is suitable for MIG, TIG (Minimum 5A) and STICK welding, as well as plasma cutting.

The UNIMIG Welding Goggles feature ELITEVISION™ Lens Technology, ensuring you always get a clear and natural view of your surroundings and workpiece.

The UNIMIG Welding Goggles have been designed to be versatile in their usage. There is room under the mask to fit an Elipse® Half-Mask P2 Respirator. The mask itself can also be removed so that only the goggles can be used. In addition, the goggles also feature an alternate elastic headband, giving you multiple options to wear the goggles as desired.

U21001K





110x40mm

VIEW SIZE.

5-13

SHADE CONTROL.

2 Arc Sensors

CONSTANTLY MONITOR THE ARC.

Removeable mask

FOR USE WHEN GRINDING.

ELITEVISION™ Lens Technology



ELITEVISION™ Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.



Lightweight & Compact



Allows welding in tight spaces where standard welding helmets are limited in space. The mask is also detachable from the goggles, allowing for even more versatility.



2 Arc Sensors



2 arc sensors constantly monitor the arc, allowing for consistent shade control so you can focus on your welds.



Room For Respirator



Designed to be worn with an Elipse® Half-Mask P2 Respirator, providing a minimum 99.95% filtration against odours, dust, all types of fumes, oil and water mists and micro-organisms.



UV/IR Ray Protection



In combination with the ROGUE™ Welding Hood, the Welding Goggles and Mask provide protection against UV/IR rays.



Feature Video



Check out all the features on the UNIMIG Welding Goggles.



• SPECIFICATIONS
• PACKAGE CONTENTS
• MANUALS & DOWNLOADS
• WARRANTY INFORMATION

Product No: U21001K

HELMET SPECIFICATIONS

FILTER DIMENSIONS

171.5 x 77.5 mm

VIEW SIZE

110x40mm

ARC SENSORS

2

CLASSIFICATION

1/1/1/2

LIGHT STATE

3

DARK STATE

5-9 / 9-13

UV/IR PROTECTION

DIN15

TIME FROM LIGHT TO DARK

0.08ms

TIME FROM DARK TO LIGHT

0.1-0.9s

SENSITIVITY DELAY

Adjustable (External)

POWER SUPPLY

Solar Cells & CR2450 Replaceable Battery

WARRANTY

2 Years

OPERATING TEMPERATURE

-10˚C to 65˚C

STORAGE TEMPERATURE

-20˚C to 85˚C

SHADE CONTROL

Yes (External)

GRIND MODE

Yes (External)

STANDARDS

CE, ANSI , CSA, AS/NZS

REPLACABLE PARTS

OUTER LENS

PU21003 (Lens Kit)

INNER LENS

PU21003 (Lens Kit)
