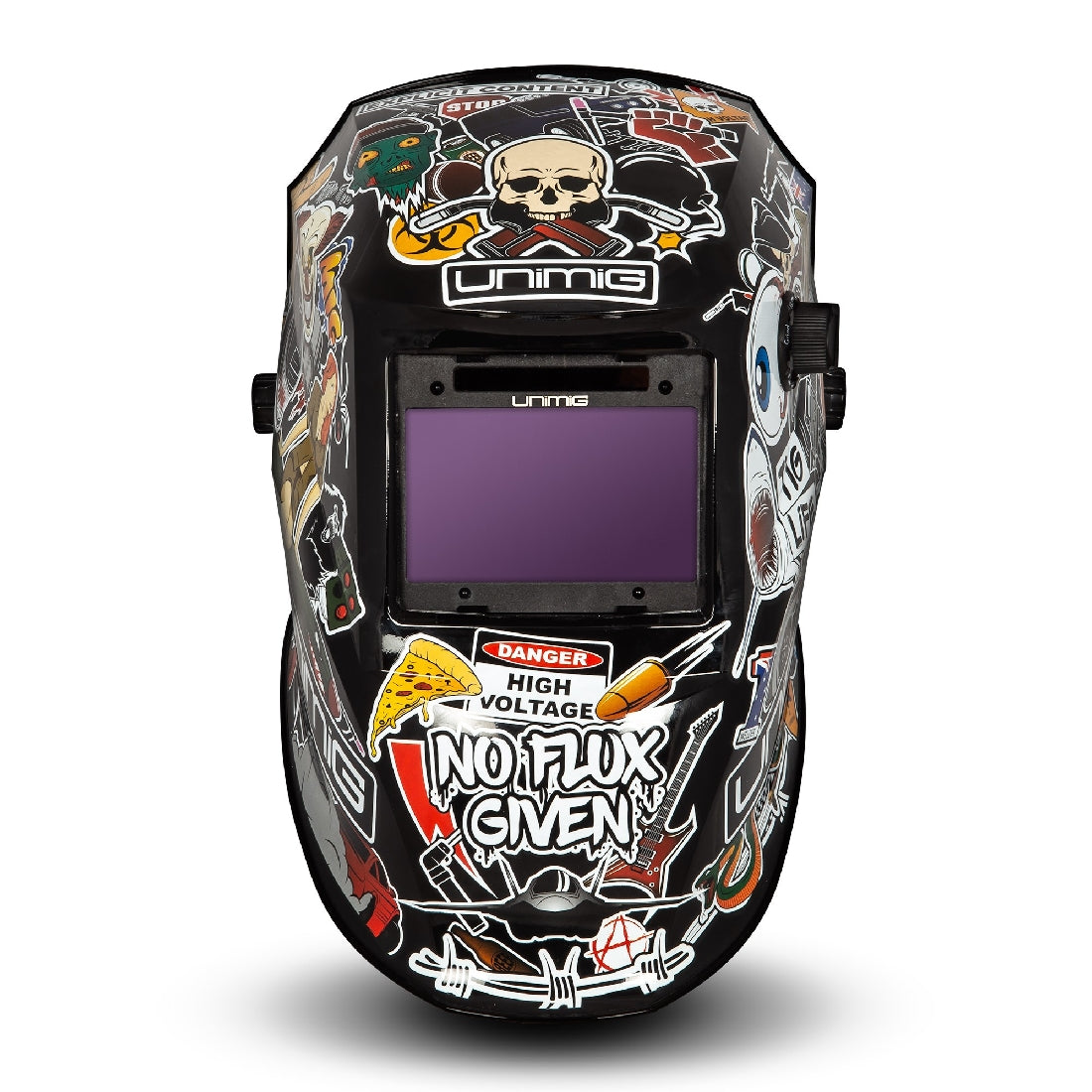

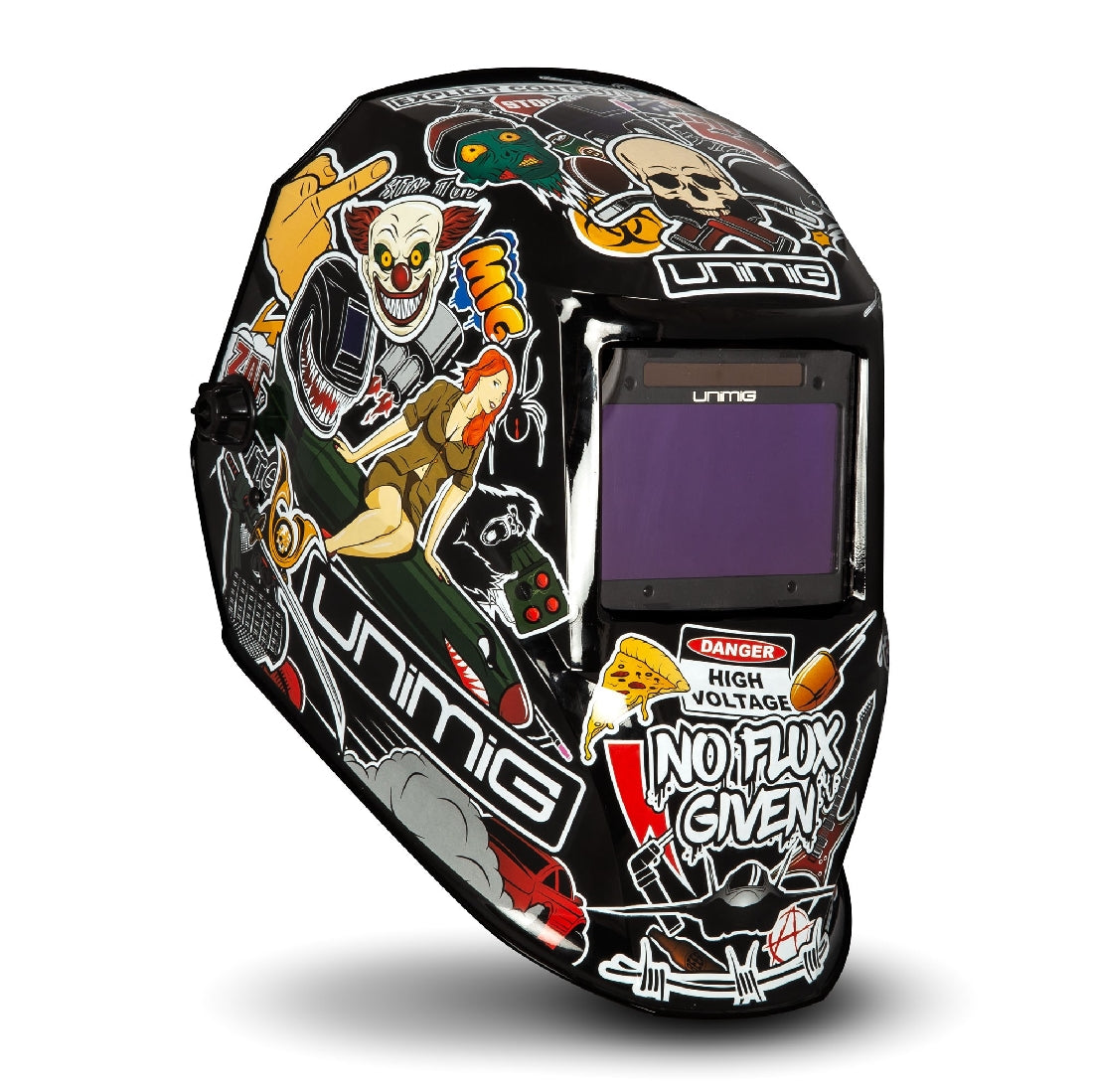

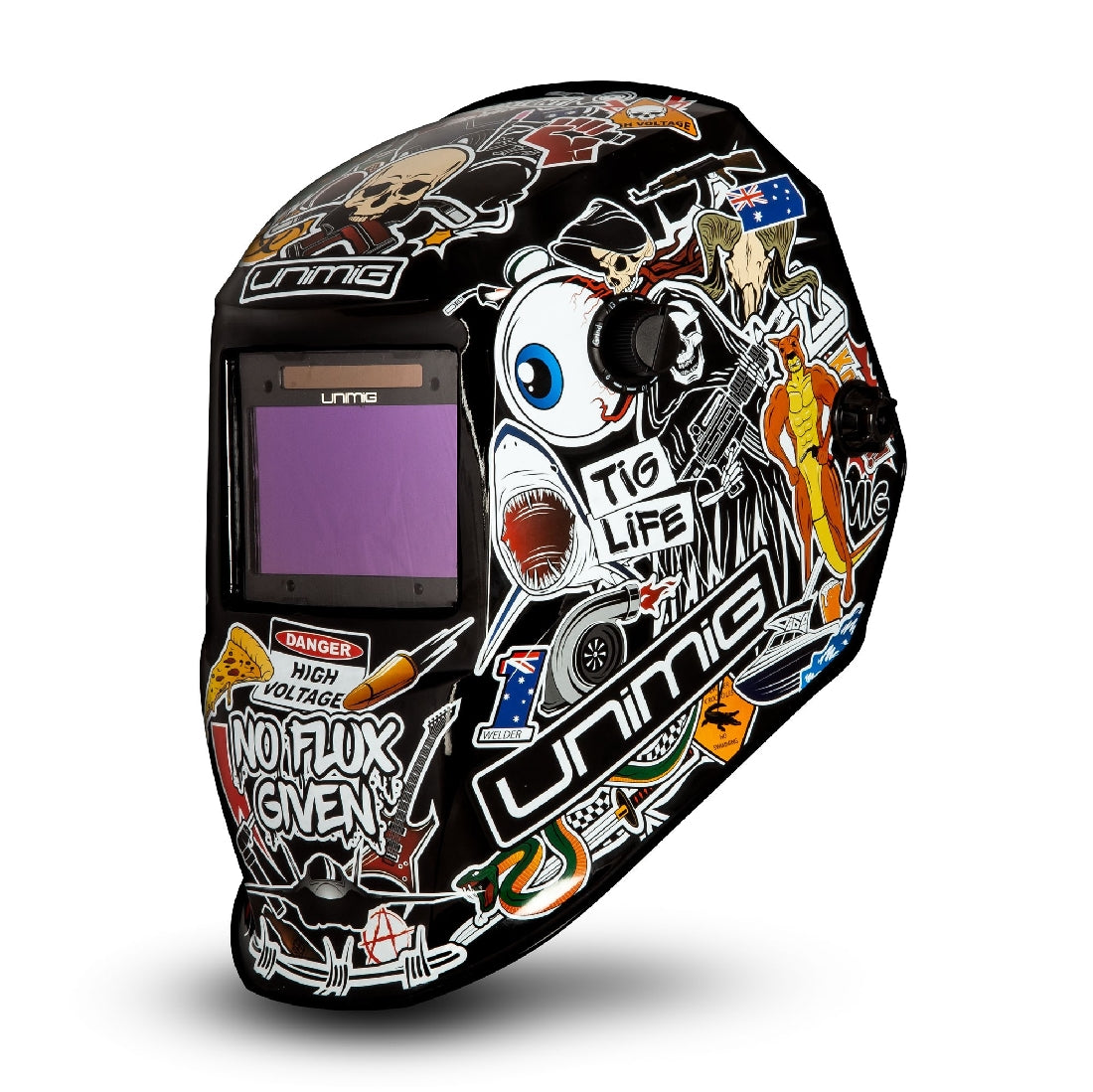

Unimig Chaos Welding Helmet

The CHAOS™ Automatic Welding Helmet provides protection to your face and eyes from spatter and UV/IR radiation. Fitted with 4 arc sensors, the CHAOS™ Welding Helmet features 9-13 Shade control as well as GRIND mode for use when grinding. A 100x60mm view allows for large view of the work area, while a replaceable backup battery improves the performance of the auto-darkening filter. It is suitable for MIG, TIG (Minimum 3A) and STICK welding, as well as plasma cutting.

The CHAOS™ Welding Helmet comes with ELITEVISION™ Lens Technology to ensure you always get a clear and natural view of your surroundings and workpiece.

UM-H-CHAOS





100x60mm

VIEW SIZE.

9-13

SHADE CONTROL.

4 Arc Sensors

CONSTANTLY MONITOR THE ARC.

GRIND MODE

FOR USE WHEN GRINDING.

ELITEVISION™ Lens Technology



ELITEVISION™ Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.



• SPECIFICATIONS
• MANUALS & DOWNLOADS
• WARRANTY INFORMATION

Product No: UM-H-CHAOS

HELMET SPECIFICATIONS

FILTER DIMENSIONS

110x90x9mm

VIEW SIZE

100x60mm

ARC SENSORS

4

CLASSIFICATION

1/1/1/2

LIGHT STATE

4

DARK STATE

9-13

UV/IR PROTECTION

DIN15

TIME FROM LIGHT TO DARK

0.08ms

TIME FROM DARK TO LIGHT

0.1-0.9s

SENSITIVITY DELAY

Adjustable (Internal)

POWER SUPPLY

Solar Cells & CR2450 Replaceable Battery

WARRANTY

2 Years

OPERATING TEMPERATURE

-10˚C to 65˚C

STORAGE TEMPERATURE

-20˚C to 85˚C

SHADE CONTROL

Yes (External)

GRIND MODE

Yes (External)

STANDARDS

CE, ANSI , CSA, AS/NZS

REPLACABLE PARTS

OUTER LENS

PUMMBOP

INNER LENS

PUMRBIP

HARNESS

UMHR

SWEAT BAND

UMSB

FILTER

XA-1122E
