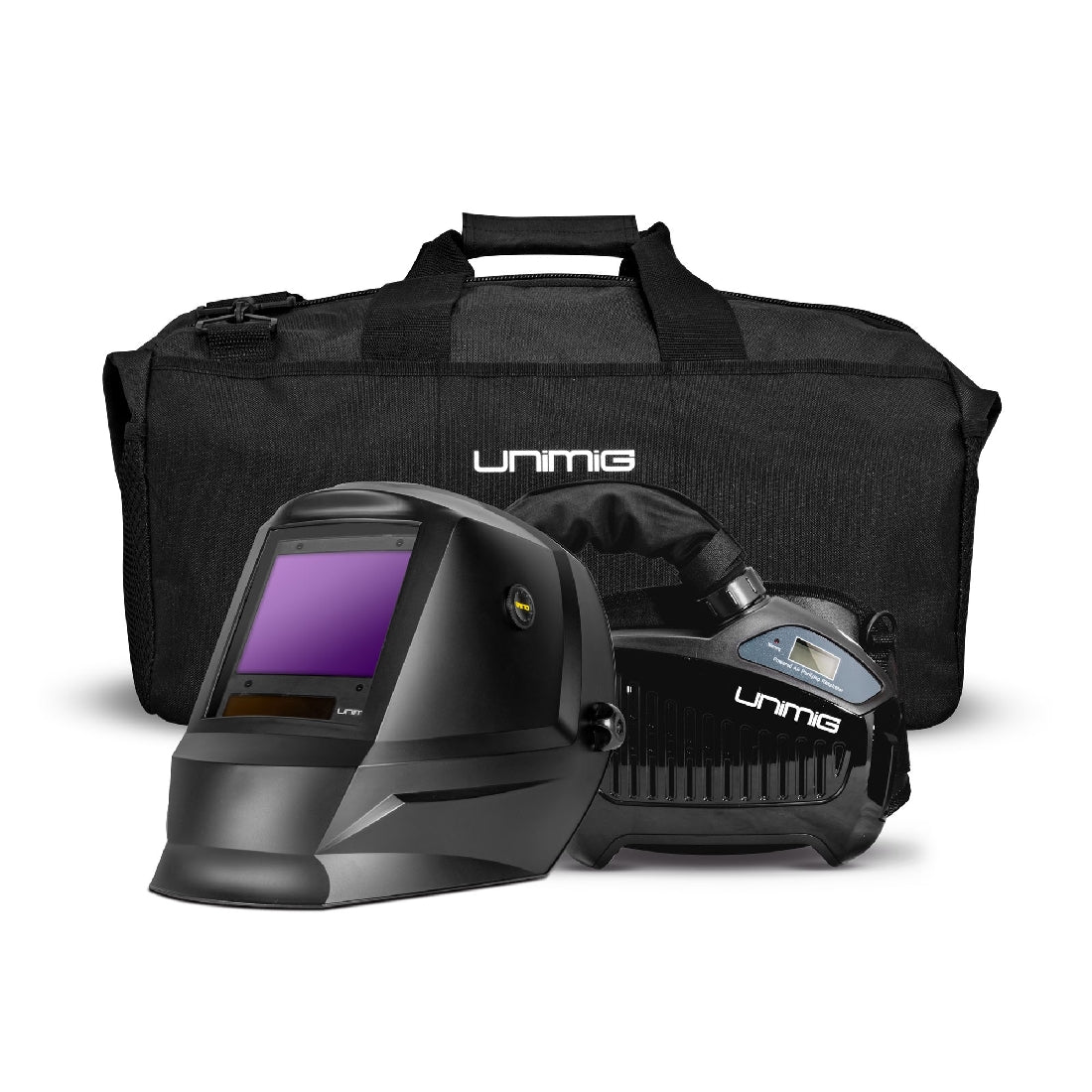

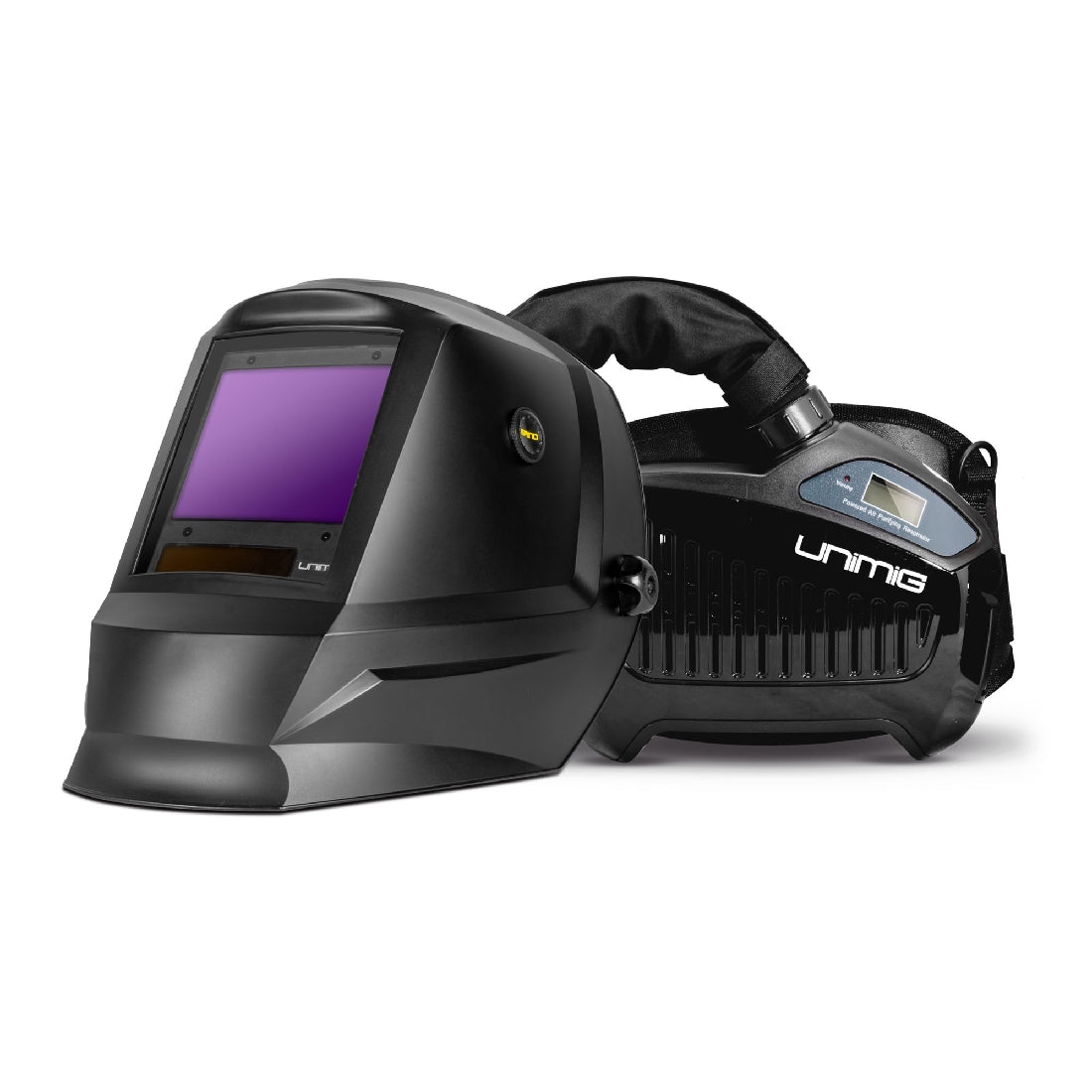

Unimig Papr Powered Air Purifying Respirator – Black

SafetyThe UNIMIG Powered Air Purifying Respirator provides industrial-level protection for the most extreme welding applications and environments where effective and reliable eye and respiratory protection is an absolute must.

The 12-volt, 4400MAh lithium-ion battery provides for up to 8 hours use on level 1, 6 hours on level 2, and 4 hours on level 3 airflow setting.

U21014K





100x83.4mm

VIEW SIZE.

5-13

SHADE CONTROL.

99.996%@0.3um

FILTER EFFECIENCY

External Grind Button

EASY ACCESS

ELITEVISION™ Lens Technology



ELITEVISION™ Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.



99.996% @ 0.3um FILTER EFFICIENCY

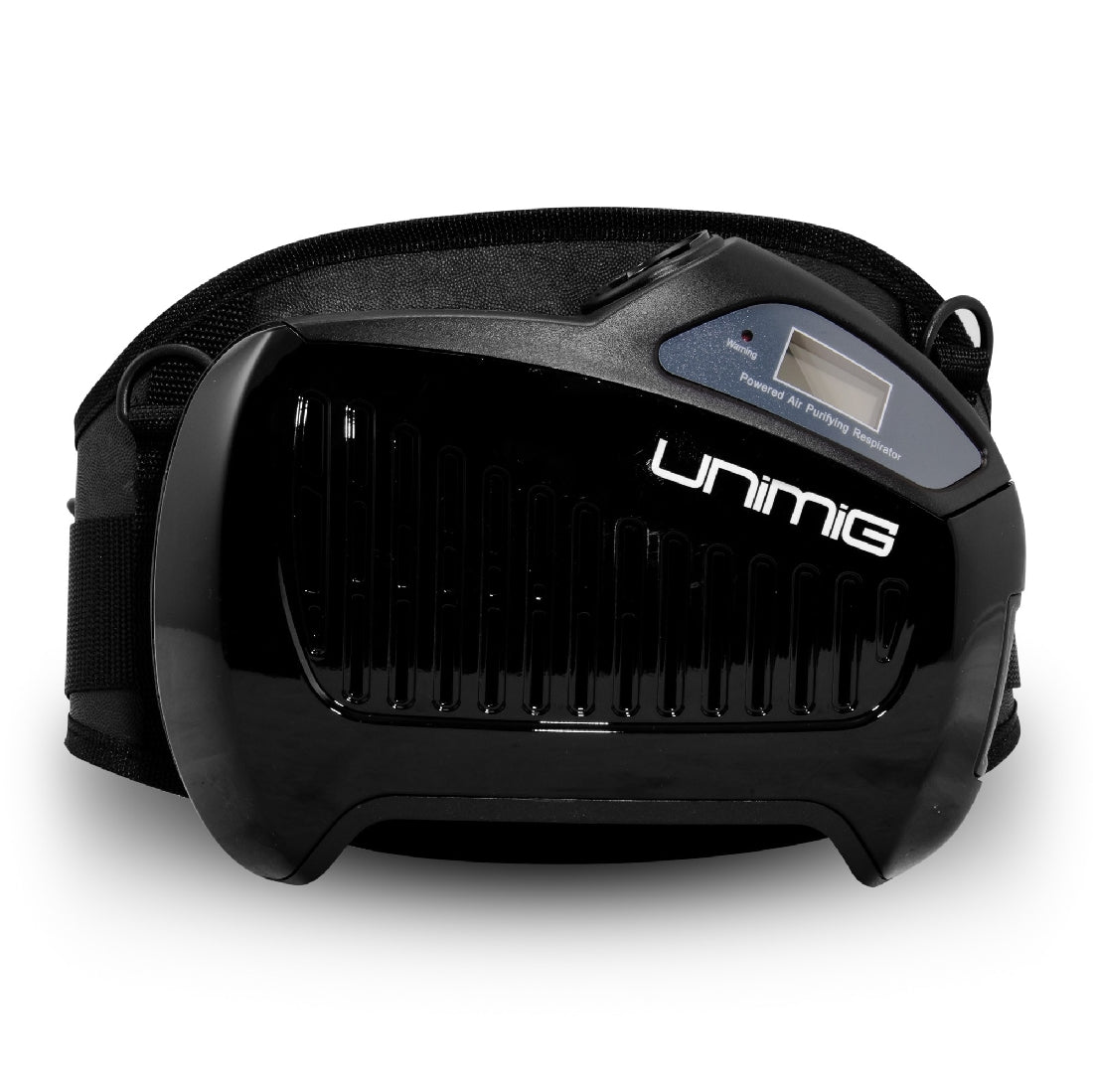

The powered respirator keeps fresh, clean air pumping around your face so that you can breathe easily while you weld. It has a filter efficiency of 99.996% @ 0.3um, which means that welding fumes, particles and gases are all being filtered to provide you with clean, fresh air.



EXTERNAL GRIND BUTTON



External grind button, so you can keep it on while you’re grinding, no need to remove your safety gear or fiddle around with flip lens or hoods.



UP TO 8 HOURS BATTERY LIFE



With a built-in 4400mAH lithium-ion battery, it’s quick and easy to recharge with the supplied power adapter. Up to 8 hours of battery life on the lowest intensity settings, you can work an entire shift before it needs to be charged again. Lasts up to 4 hours on the highest intensity setting.



1/1/1/1 CLASSIFICATION



Welding helmet lenses are graded on a rating system from 1 to 3 across four categories, with 1 being the highest and 3 being the lowest. This helmet features the maximum 1/1/1/1 classification for optical quality, diffusion of light, light consistency and angle dependence.



MEMORY STATES



The three most frequently used settings can be stored and reactivated easily by using the three memory buttons on the Auto-Darkening Filter (ADF).



Setup & Feature Walthrough Video



Check out all of the features, and how to set up the PAPR welding helmet.



• SPECIFICATIONS
• PACKAGE CONTENTS
• MANUALS & DOWNLOADS
• WARRANTY INFORMATION

Product No:

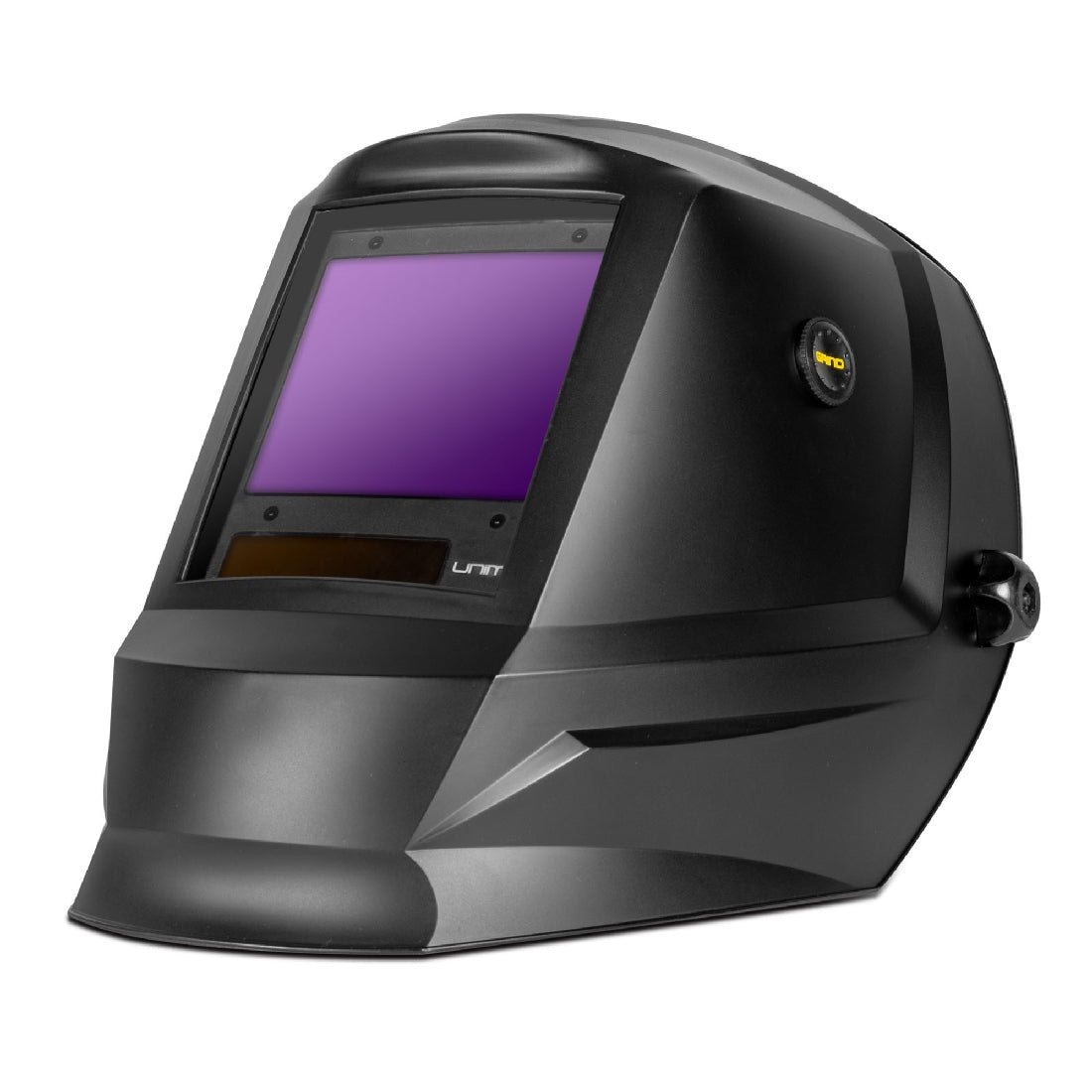

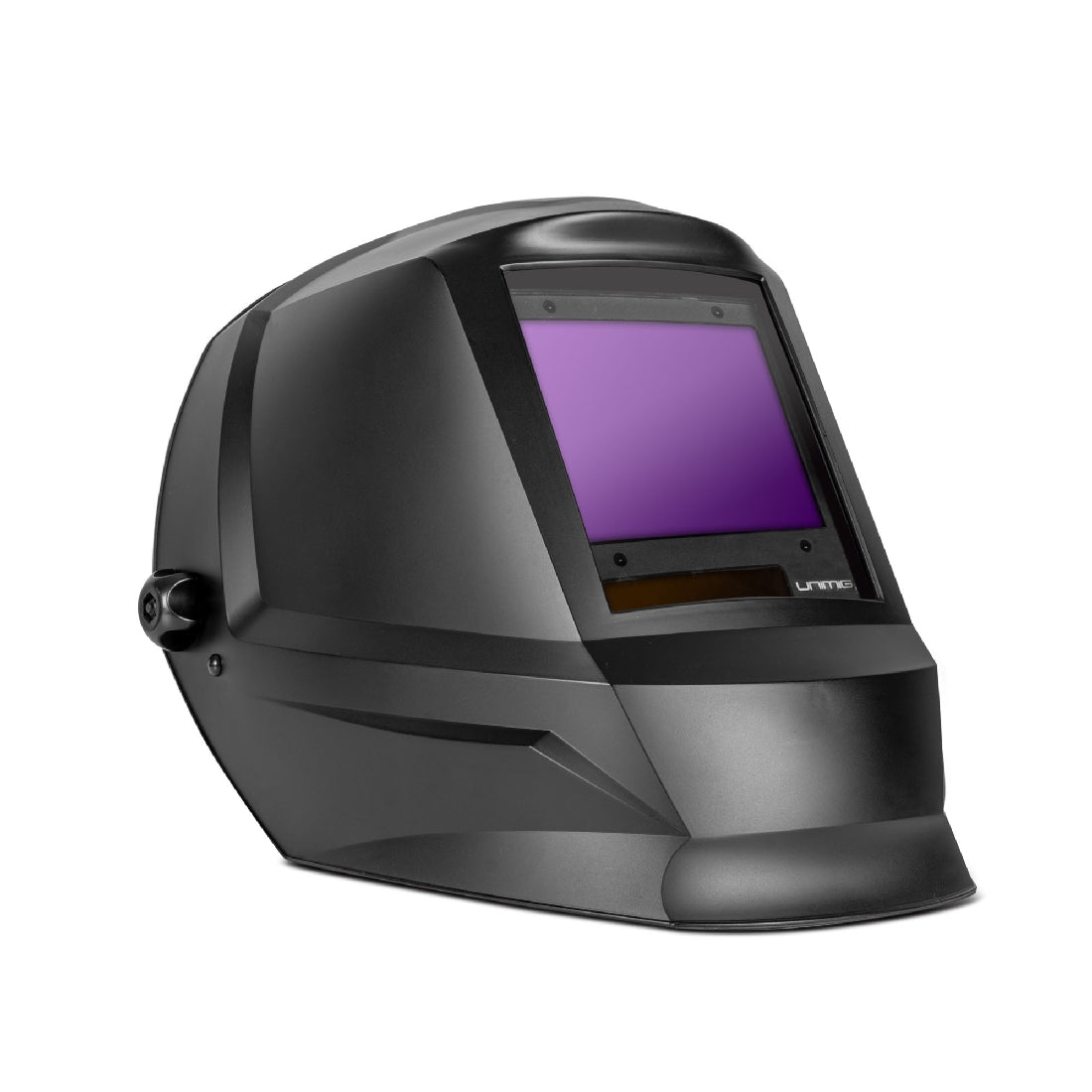

HELMET SPECIFICATIONS

FILTER DIMENSIONS

114x133x9.5mm

VIEW SIZE

100x83.4mm

ARC SENSORS

4

CLASSIFICATION

1/1/1/1

LIGHT STATE

4

DARK STATE

5-9 / 9-13

UV/IR PROTECTION

DIN15

TIME FROM LIGHT TO DARK

0.08ms

TIME FROM DARK TO LIGHT

0.1-0.9s

SENSITIVITY DELAY

Adjustable (1-5 for low-high)

POWER SUPPLY

Solar Cells & CR2450 Replaceable Battery (ADF)

WARRANTY

2 Years

OPERATING TEMPERATURE

-10˚C to 65˚C

STORAGE TEMPERATURE

-20˚C to 85˚C

SHADE CONTROL

Yes

GRIND MODE

Yes

STANDARDS

CE EN379, ANSI Z87.1, CSA Z94.3,

REPLACABLE PARTS

OUTER LENS

PUMRBOP

INNER LENS

PUMRWXIP

HARNESS

UMHR

SWEAT BAND

U21009
