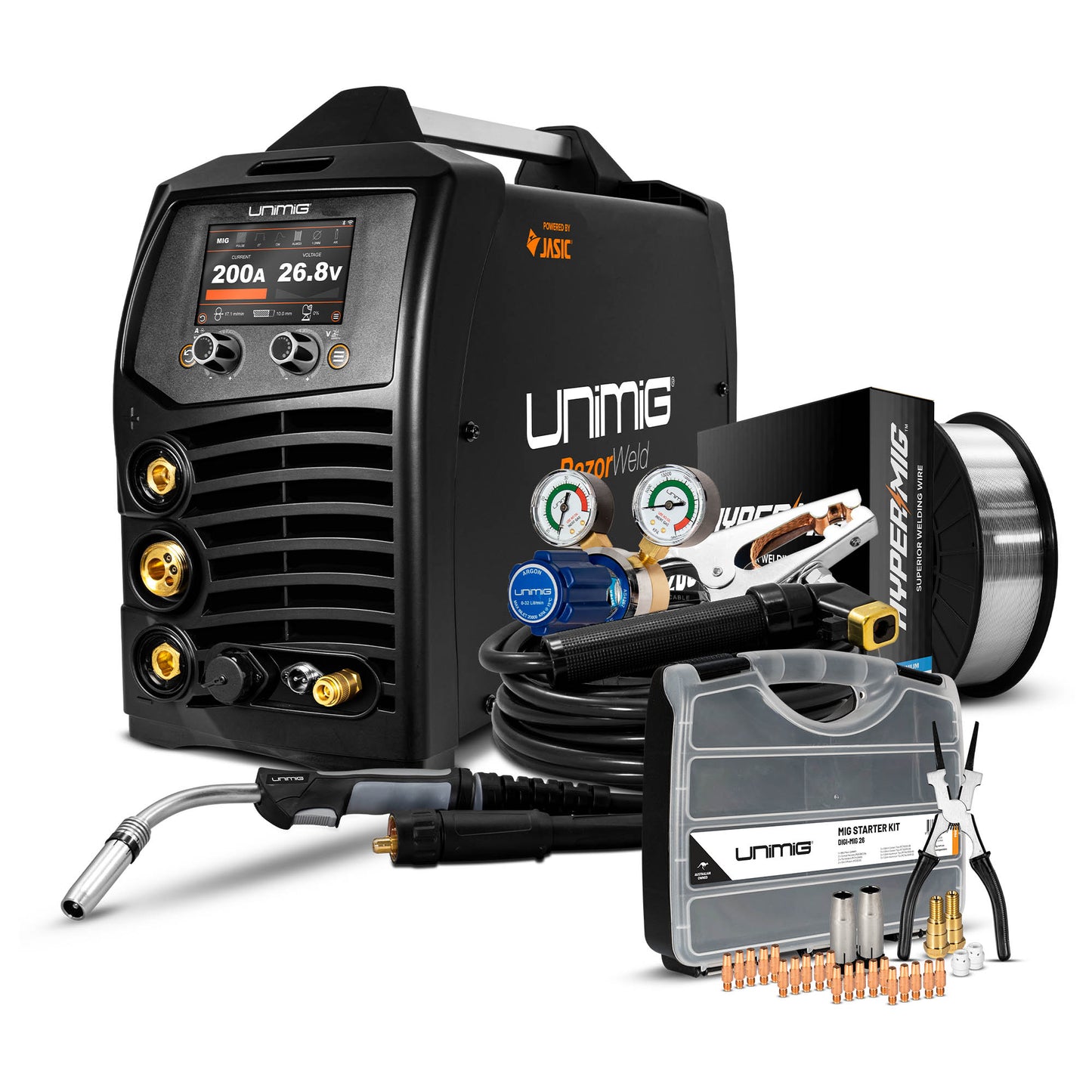

• Unimig Pulse Mig - Includes Wire And Consumable Kit
  • Unimig Pulse Mig - Includes Wire And Consumable Kit
  • Unimig Pulse Mig - Includes Wire And Consumable Kit
  • Unimig Pulse Mig - Includes Wire And Consumable Kit
1 4

Kennedys Welding Supplies

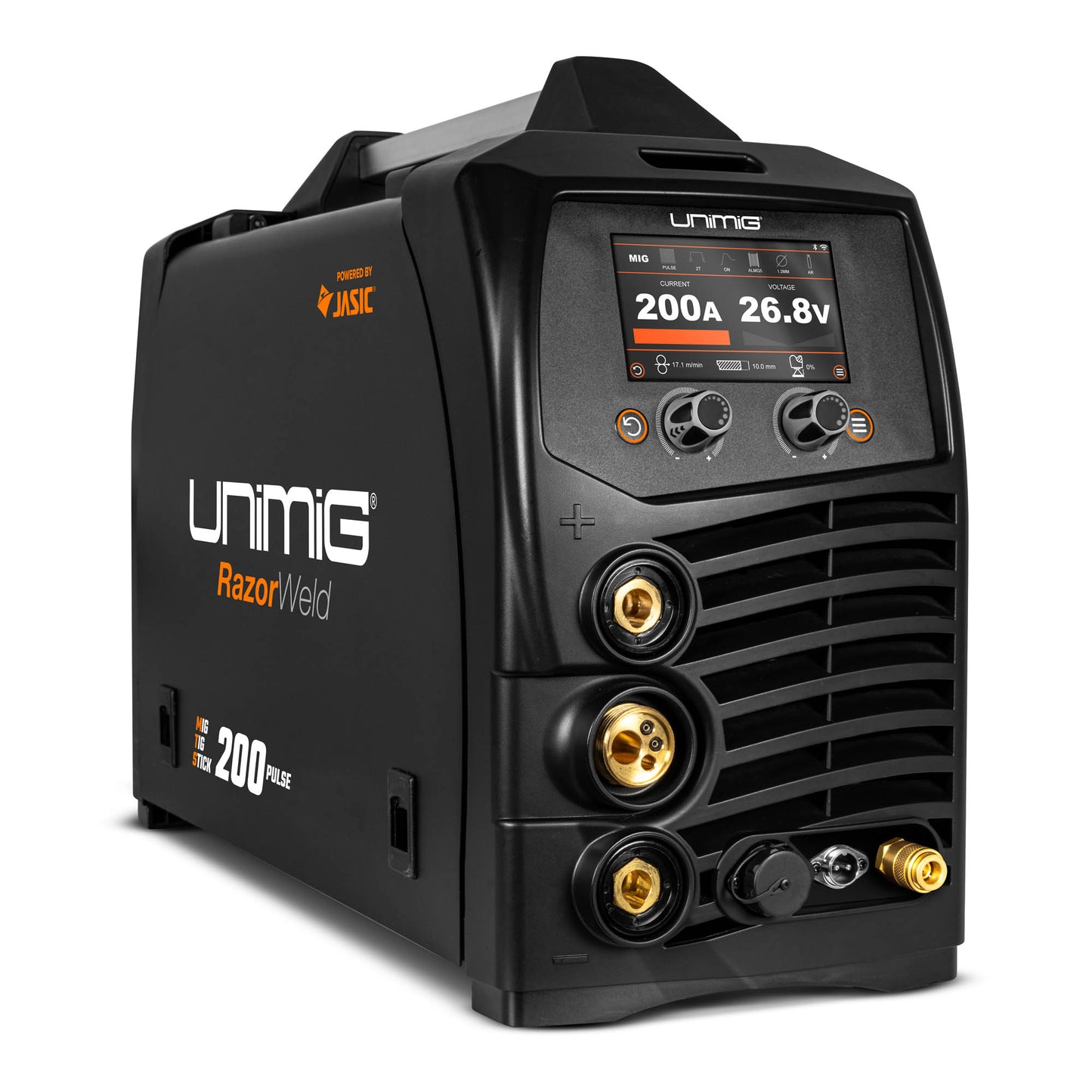

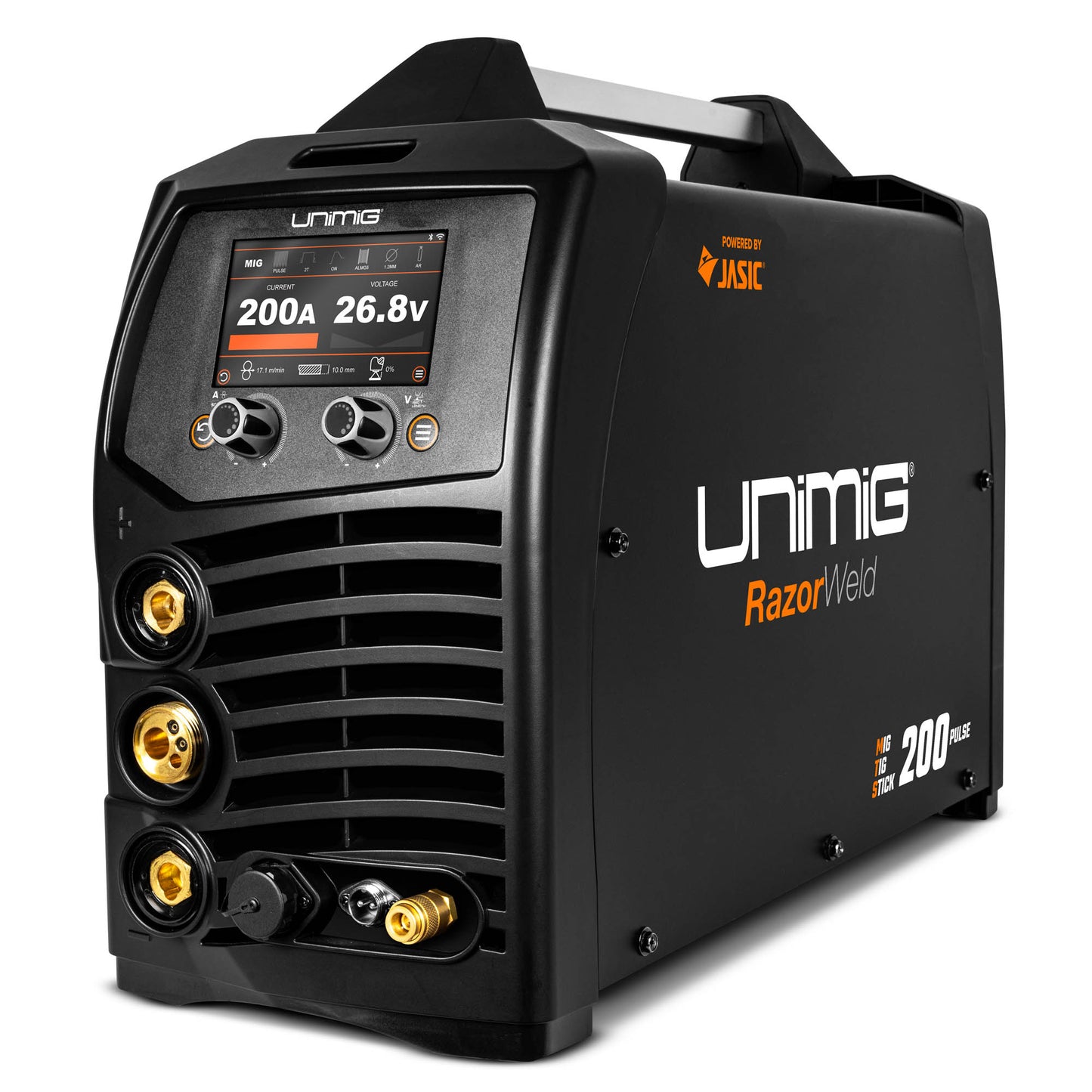

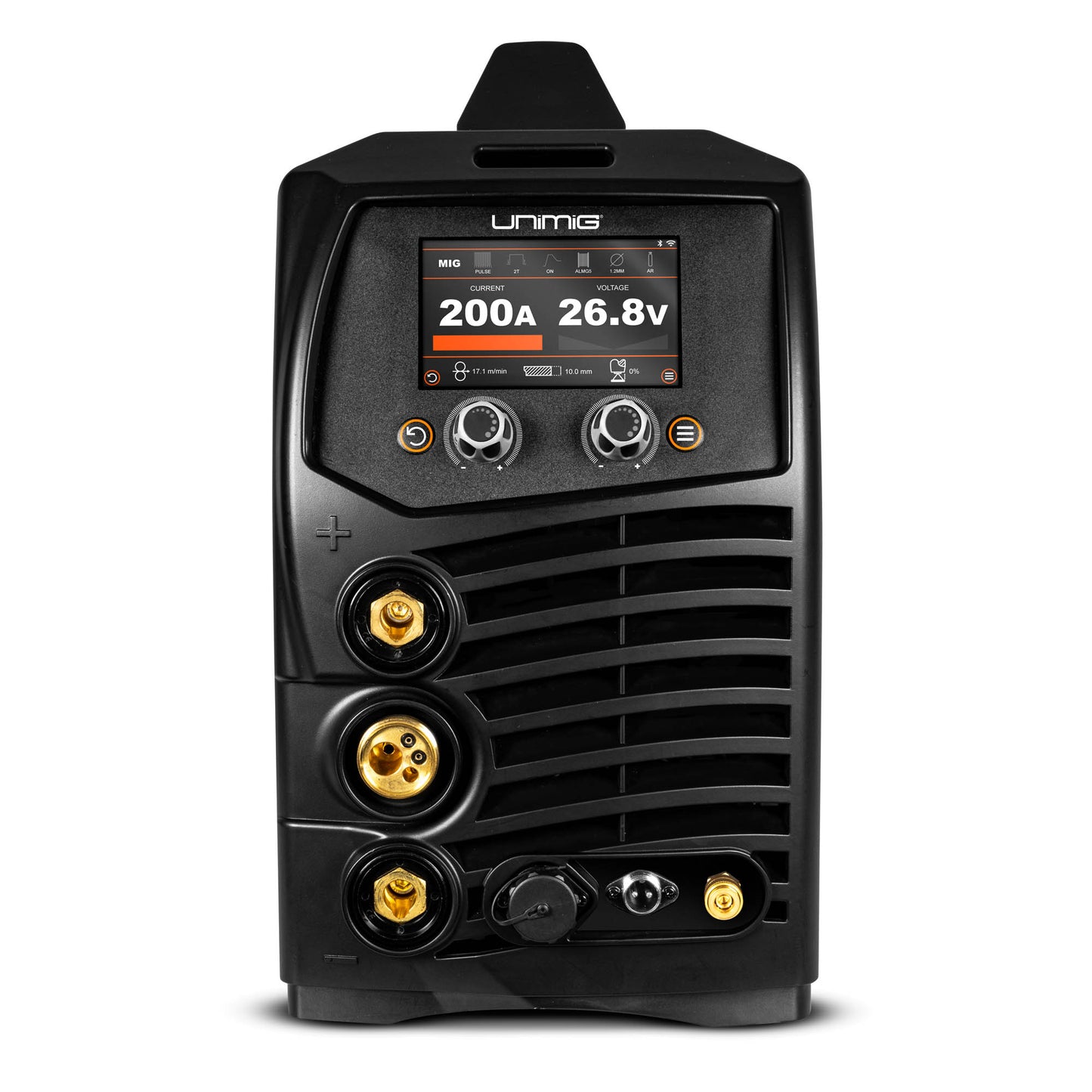

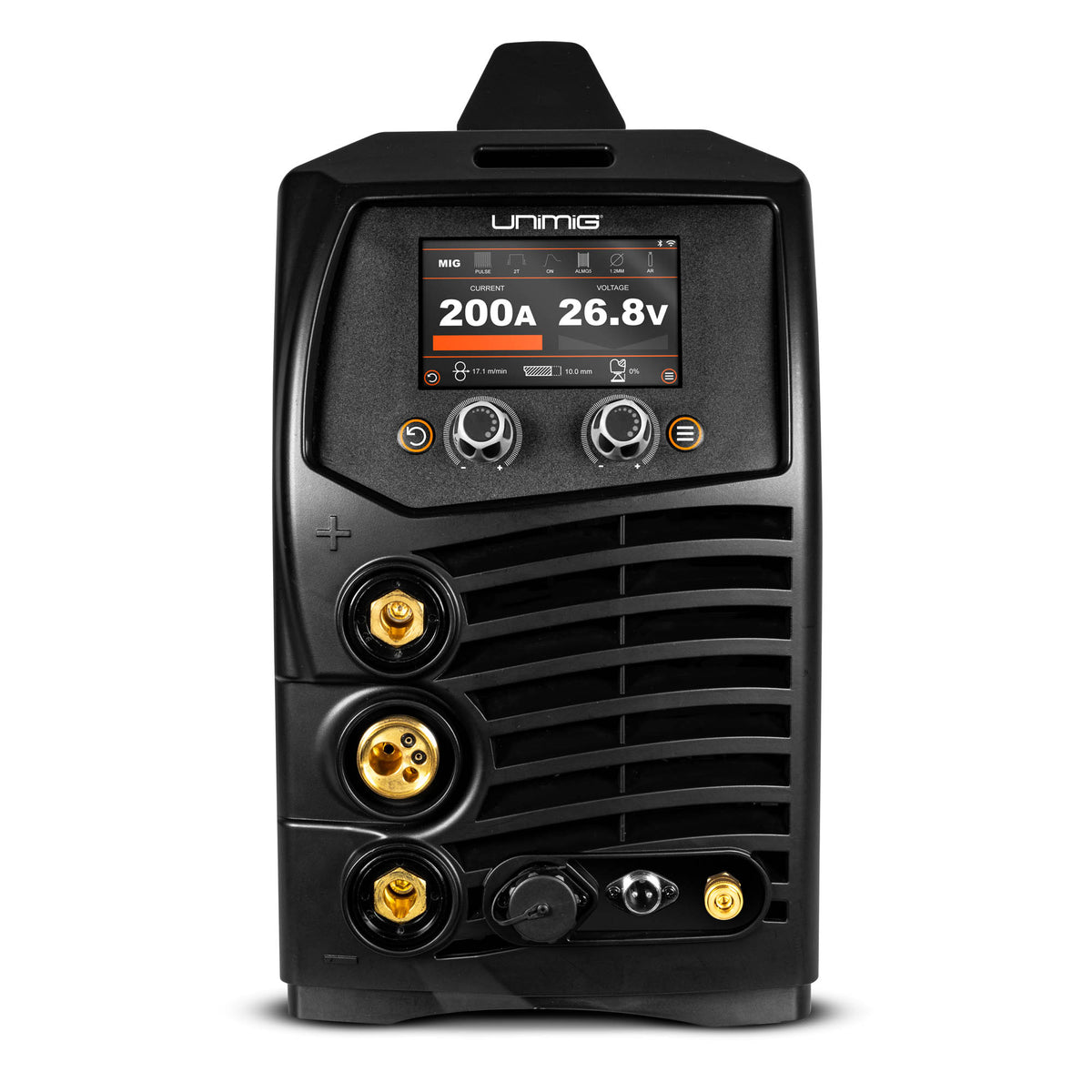

Unimig Razor 200 Pulse MIG/TIG/STICK Welder

Unimig Razor 200 Pulse MIG/TIG/STICK Welder

$2,699.00 AUD
$2,699.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

SINGLE & DOUBLE PULSE MIG

Reduces the heat and minimises spatter, without compromising penetration.

100+ SYNERGIC PROGRAMS

Just select your metal, wire size, and gas, and you’re good to go.

5” LCD TOUCH SCREEN

The large touch screen display is clear, with an easy to navigate interface.

DIGITAL MIG TORCH

Adjust your amps, current and voltage right on the MIG torch itself.

Full Feature Walkthrough



Check out all of the features available on the RAZOR 200 PULSE in our comprehensive feature walkthrough video.



Single & Double Pulse MIG



Pulse welding reduces the heat and minimises spatter, without compromising penetration, so its perfect for thin and soft materials like aluminium.

A single pulse weld alternates between a peak current and a background current. Double pulse welding works the same way, but with a second background current to add even more control over the arc.

  • Reduced heat input, so you can weld thinner than standard MIG, perfect for aluminium
  • Weld faster than a TIG weld, but with the same aesthetic appearance of TIG
  • Spatter free welding, cutting your clean-up time to nothing
  • Great penetration even with lower heat



5” LCD Touch Screen Display



Choosing your weld parameters or changing your settings mid weld has never been easier. The large touch screen display is clear, with an easy to navigate interface. You won’t even need a manual to work it out.



Over 100+ Synergic Programs



With over 100 preset synergic programs, setting up for a weld has never been faster. Just select your metal, wire size, and gas, and you’re good to go.



Hot Start and Crater Fill



Hot Start gives you a boost in current at the start of your weld, eliminating issues with starting on cold metal, and makes welding on thicker materials and aluminium easier.

Crater Fill ramps your welding current and voltage down at the end of a weld, so you can fill in the end of a weld at a lower power, eliminating craters and pinholes.

Crater Fill and Hot Start functions mean your welds start strong and end just as strong.



4 Geared Wire Drive



With four geared wire drive rollers, you will get a more consistent and smoother wire feeding experience.

The internal housing also features storage space for additional rollers, so they’re always in reach. It also comes with an internal spool light, for max visibility in any lighting.



High Frequency DC TIG



You can maintain complete control over your TIG welds with the RAZOR 200 PULSE. The high frequency DC TIG welding mode comes with a full set of adjustable parameters, like pre- and post-flow, up and down slopes, as well as all things pulse. Everything you need, right at your fingertips.



STICK (MMA)



You’ll be able to STICK weld anything, including cellulosic electrodes, plus with the addition of Anti Stick, you’ll never struggle to strike an arc again.

The Arc Force function helps to keep the arc stabilised throughout the weld, so it won’t cut out, and stops the electrode from sticking.

Power Limit works to keep the amperage constant throughout the weld by preventing the voltage from exceeding the set value.



GLICK Heat Control



When using the GLICK function, set a base current, which you can switch to at any time during a weld by pressing the trigger button. GLICK is great for manual heat input control as you go.



Job Memory (100 Jobs)



Save your favourite weld settings with the jobs function.



Digital Control Torch



Adjust your amps, current and voltage right on the MIG torch itself. Plus, if you plug in a TIG torch, pressing the trigger will automatically switch you to the TIG screen and vice versa.



2T / 4T / SPOT



Choose between two-touch, four-touch and spot modes to maximise operator comfort on every weld.



Adjustable Arc Length



Increase or decrease your arc length while in the synergic and pulse MIG modes to suit your weld style.



Inductance Control



Change the frequency of your short circuit MIG welds with the Inductance settings, so you can choose your preferred arc characteristics.



Generator Compatible



Going off the grid? The RAZOR 200 PULSE can be connected to a generator, we recommend one with an 11kVA rating.



Product No: U11003K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

Ieff (A)

14.9

RATED OUTPUT

40A/16V-200A/24V

NO LOAD VOLTAGE (V)

77

PROTECTION CLASS

IP23S

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

11.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

3

MIG Specifications

MIG WELDING CURRENT RANGE

40-200A

MIG DUTY CYCLE @ 40°C

15% @ 200A, 60% @ 101A, 100% @ 78A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

100mm / 200mm

MIG WELDING THICKNESS RANGE

1-10mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

High-Frequency

TIG WELDING CURRENT RANGE

5-200A

TIG DUTY CYCLE @ 40°C

20% @ 200A, 60% @ 116A, 100% @ 90A

TIG WELDING THICKNESS RANGE

1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-180A

STICK DUTY CYCLE @ 40°C

15% @ 180A, 60% @ 91A, 100% @ 70A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-12mm

ARC FORCE

0-100%

Size & Weight

DIMENSIONS (mm)

605x230x400mm

WEIGHT (kg)

17kg

MACHINE FEATURES

WIRE DRIVE

4 Geared

VRD

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Yes
