Kennedys Welding Supplies

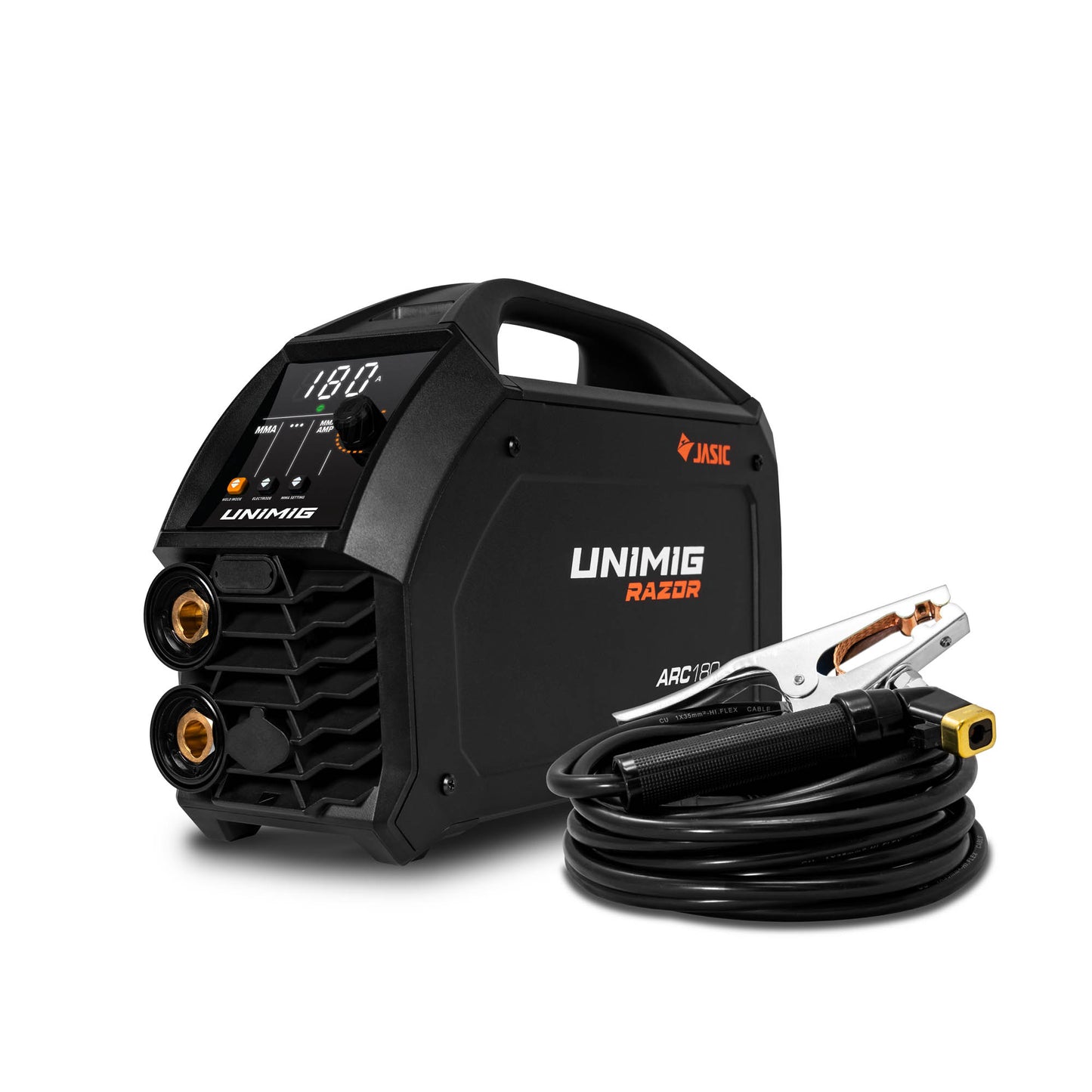

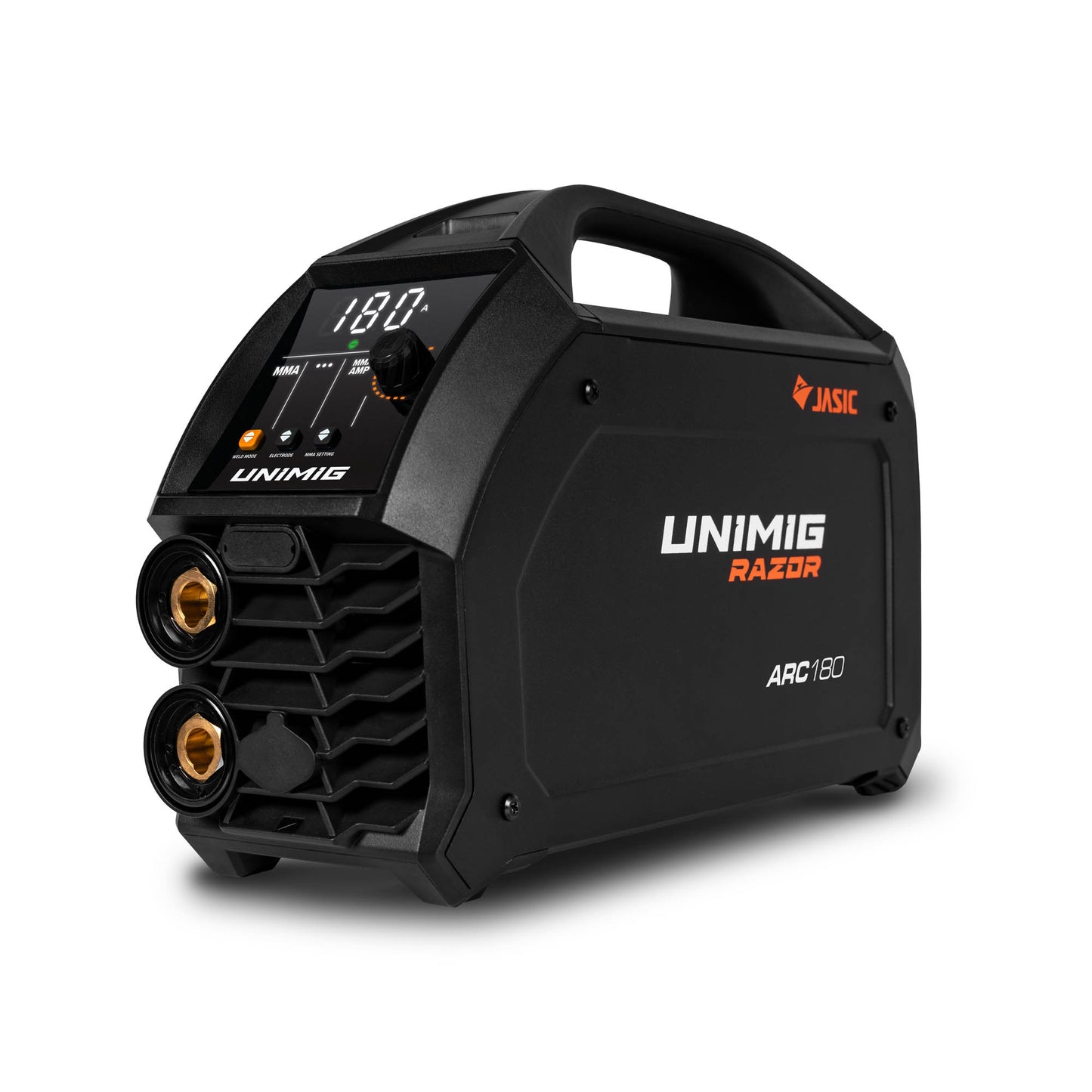

Unimig Razor 180amp Stick/dc Tig Welder
Unimig Razor 180amp Stick/dc Tig Welder
Couldn't load pickup availability
15 AMP PLUG
Connect to a 15 AMP outlet.
DC LIFT ARC TIG
TIG welding functionality
HOT START / ARC FORCE
Better MMA weld control

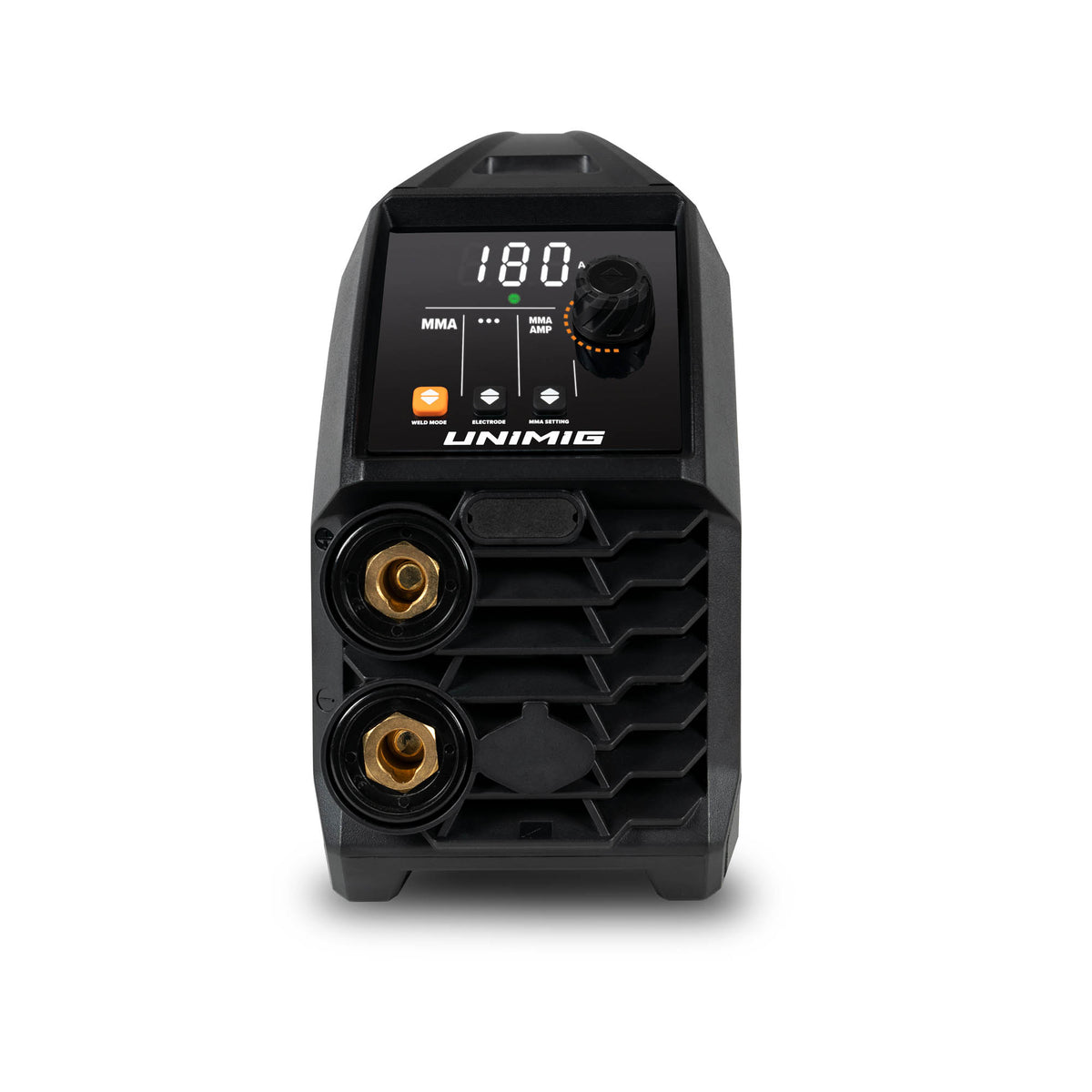

HD Backlit Interface
This next generation interface panel is bright and easy to read in any environment.
DC Lift Arc TIG
Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.
Smart Fan
Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
Advanced MMA Features
This machine features Anti-Stick technology, as well as adjustable Arc Force and Hot Start functionality. These features are designed for improving weld quality and ease of use.
MACHINE SPECIFICATIONS
240V Single Phase
15 AMP
14.7
20A/20.8V - 180A/27.2V
78
IP23S
H
10.0
35/50
AS/NZ60974-1
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze / MMA: Mild Steel, Stainless Steel, Cast Iron
5
TIG SPECIFICATIONS
DC Lift Arc
10-180A
25% @ 180A, 60% @ 116A, 100% @ 90A
1-6mm
STICK SPECIFICATIONS
20-180A
20% @ 180A, 60% @ 104A, 100% @ 81A
2.5-4.0mm
2-10mm
Size & Weight
370×125×255 mm
5.8
MACHINE FEATURES
YES
