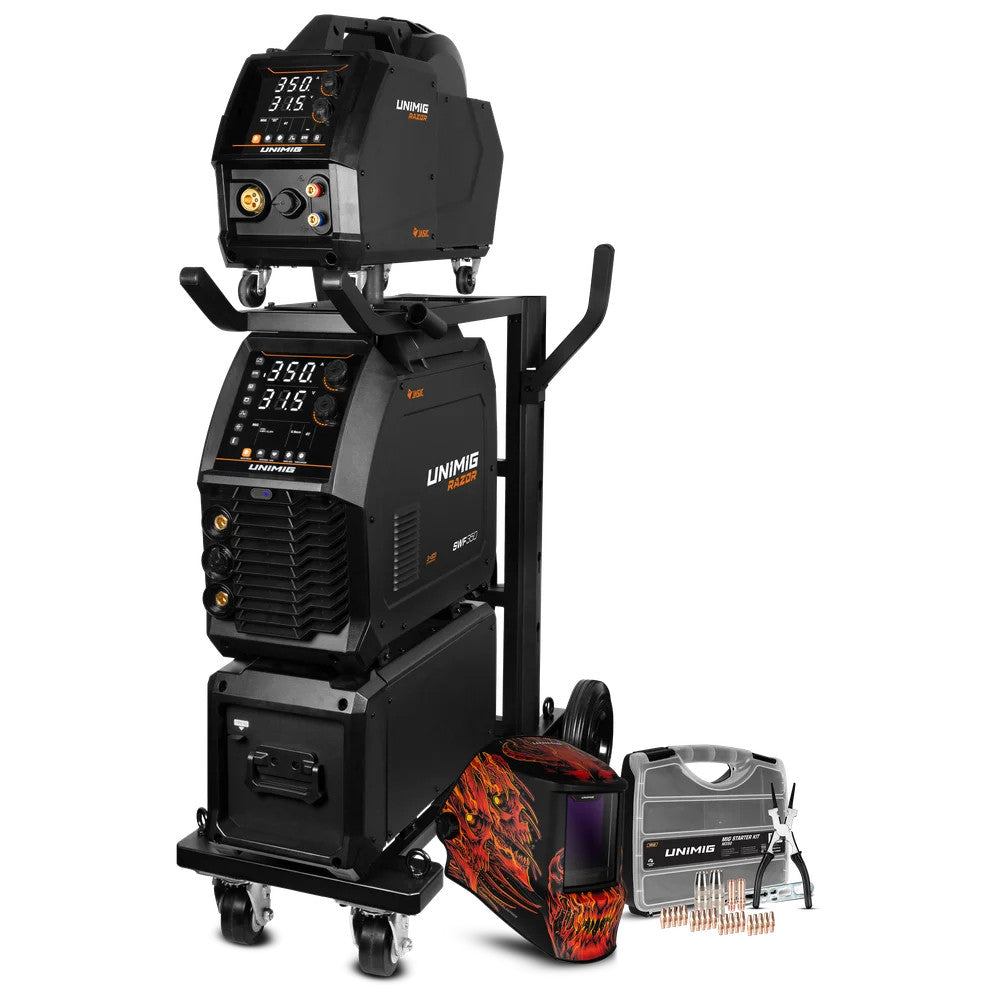

UNIMIG - RAZOR 350A SWF - WELDER BUNDLE

Features

• A separate wire feeder gives extra manoeuvrability
• Push-Pull gun ready for heavy-duty welding
• 4 geared wire drive system for the smoothest wire feeding experience

Specifications

• TECHNICAL DATA
• SKU: U11213
• Primary Input Voltage: 415V Three-Phase
• Supply Plug: Unplugged (32A Recommended)
• Ieff (A): 13.9
• Imax (A): 25.0
• Rated Output: 20–350A
• No Load Voltage (V): 75
• Protection Class: IP23S
• Insulation Class: H
• Minimum Generator (kVA): 23
• Dinse Connector: 35/50
• Standard: AS 60974.1
• Welds:
• MIG – Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
• MMA – Mild Steel, Stainless Steel, Cast Iron
• TIG – Mild Steel, Stainless Steel, Copper, Silicon Bronze
• Warranty: 5 Years
• MIG SPECIFICATIONS
• MIG Welding Current Range: 30–350A
• MIG Duty Cycle @ 40°C:
• 50% @ 350A
• 60% @ 319A
• 100% @ 247A
• MIG Wire Size Range: 0.6–1.2mm
• MIG Wire Spool Size: 5kg (200mm), 15kg (300mm)
• MIG Welding Thickness Range: 1–16mm
• Drive Roller Size: 37/24
• TIG SPECIFICATIONS
• TIG Function Type: DC Lift Arc
• TIG Welding Current Range: 20–350A
• TIG Duty Cycle @ 40°C:
• 50% @ 350A
• 60% @ 319A
• 100% @ 247A
• TIG Welding Thickness Range: 1–10mm
• MMA SPECIFICATIONS
• STICK Welding Current Range: 20–350A
• STICK Duty Cycle @ 40°C:
• 50% @ 350A
• 60% @ 319A
• 100% @ 247A
• STICK Electrode Range: 2.5–4.0mm
• STICK Welding Thickness Range: 2–16mm
• SIZE & WEIGHT
• Dimensions (mm): 1520 x 520 x 980
• Power Source Weight (kg): 27.21
• Separate Wire Feeder Weight (kg): 17.8
• Trolley With Drawer Weight (kg): 43.4
• Made in China
• Warranty: 60 Months

Inclusions

• RAZOR SWF 350 WELDER (U11213) CONSUMABLE STARTER KIT SUIT M350 (U11075) WELDING HELMET PROFESSIONAL SERIES DEMON (U21018)
