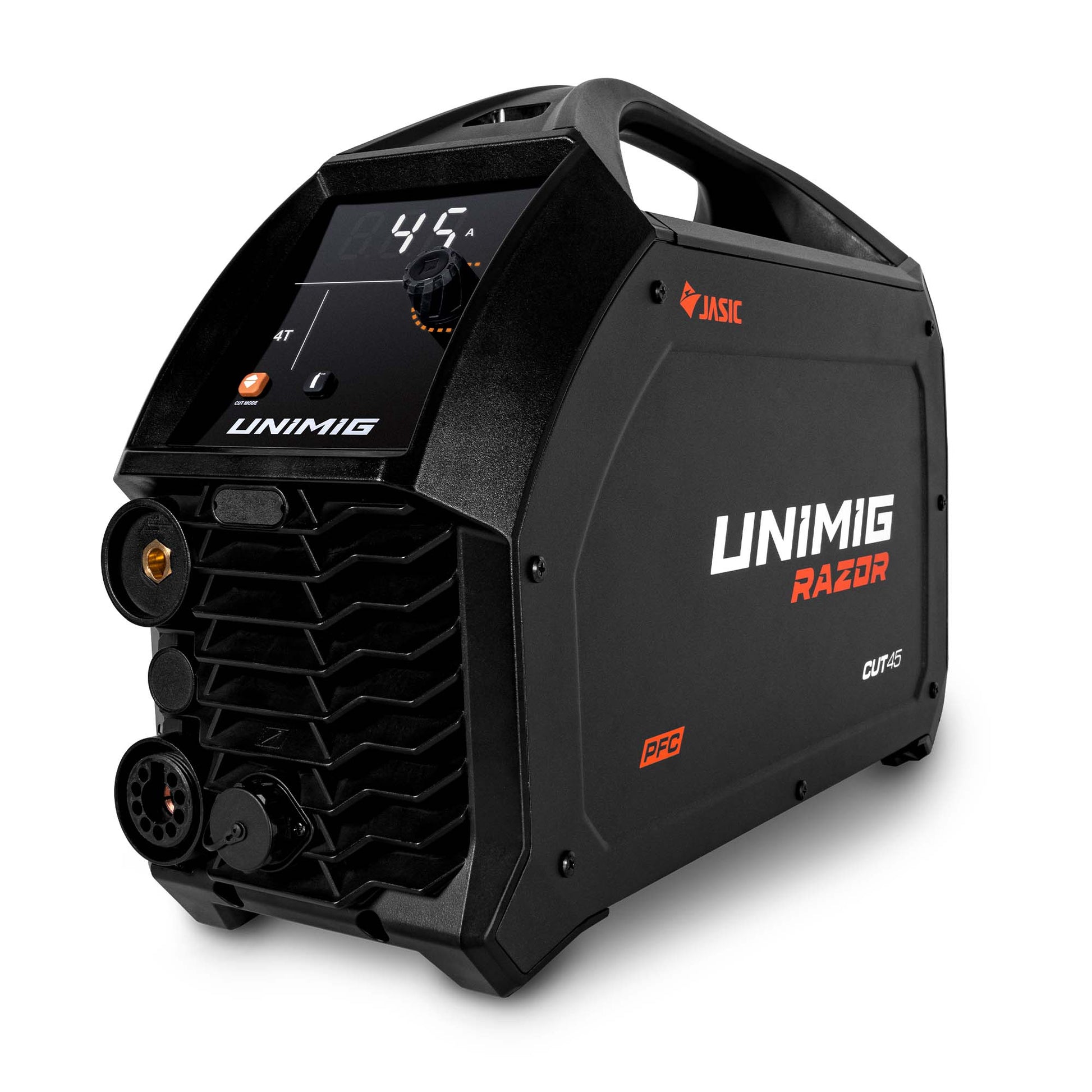

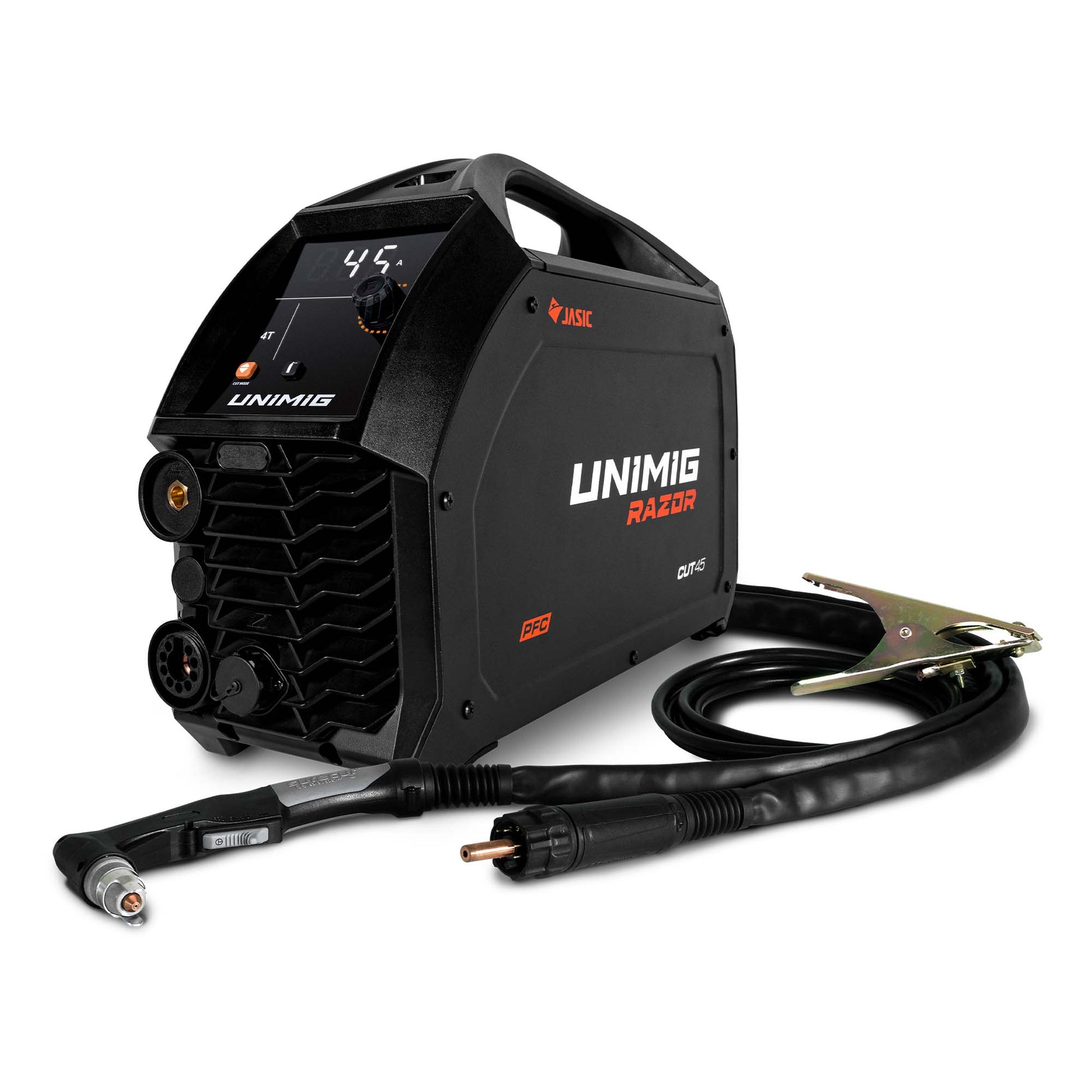

Unimig Razor Cut 45 Gen 2

The RAZOR CUT 45 is the perfect plasma cutter for the professional who wants a powerful machine with a portable body. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR CUT 45 boasts some serious cutting power with 16mm clean cut and 25mm severance.

U14006K



15 AMP PLUG

Connect to any 15 AMP outlet.

CNC CONNECTIVITY

Connect to a CNC Table.

PERFORATED CUT MODE

Slice through perforated metal with ease.

2T/4T TORCH CONTROLS

More comfort when cutting.

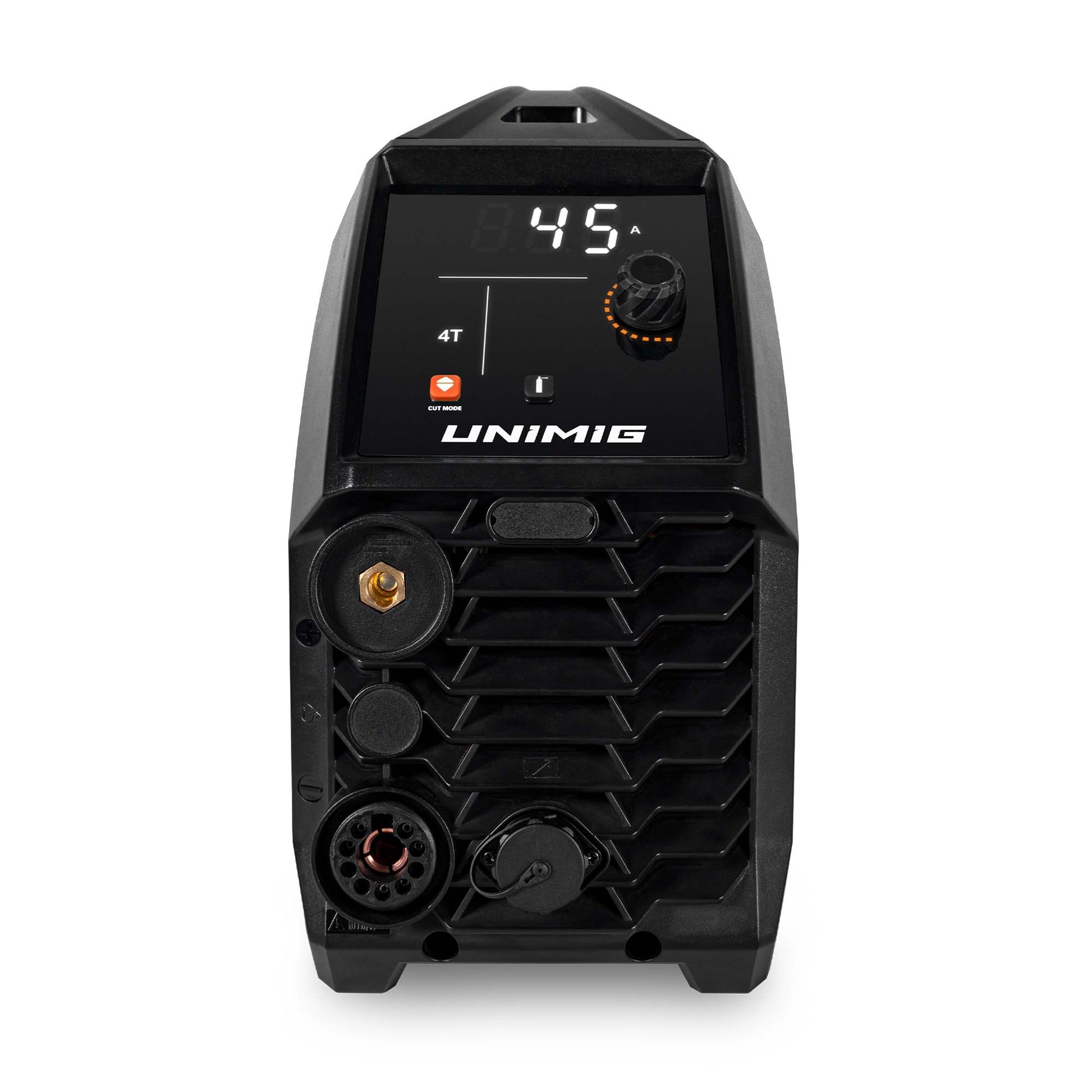

HD Backlit Interface



This next generation interface panel is bright and easy to read in any environment.



PILOT ARC START



Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.



Power Factor Correction



PFC gives you maximum electrical efficiency. It automatically compensates for any voltage fluctuation, and PFC is also designed to be generator friendly.



• Specifications
• Package Contents
• Manuals & Downloads
• Warranty Information

Product No: U14006K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

Ieff (A)

13.5

NO LOAD VOLTAGE (V)

300

PROTECTION CLASS

IP23S

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

8

DINSE CONNECTOR

10/25

STANDARD

AS/NZS 60974.1

WARRANTY (Years)

5

Size & Weight

DIMENSIONS (mm)

546×169×341mm

WEIGHT (kg)

10kg

PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE

20-45A

PLASMA CUT DUTY CYCLE @ 40°C

25% @ 45A, 60% @ 30A, 100% @ 20A

MILD STEEL CUT THICKNESS

16mm

MILD STEEL SEVERANCE THICKNESS

25mm

ALUMINIUM CUT THICKNESS

8mm

ALUMINIUM SEVERANCE THICKNESS

12mm

STAINLESS STEEL CUT THICKNESS

8mm

STAINLESS STEEL SEVERANCE THICKNESS

12mm

AIR FLOW DRAW OFF (L/min)

189

AIR FLOW PRESSURE (Bar)

5.17 (75 psi)

PLASMA ARC START

Pilot Arc
