Kennedys Welding Supplies

Unimig - Viper 185 Kit (185 Mig, 17v Tig Torch, Chaos Helmet, Bzl 15 Kit, Rogue Gloves)

Unimig - Viper 185 Kit (185 Mig, 17v Tig Torch, Chaos Helmet, Bzl 15 Kit, Rogue Gloves)

Regular price $1,099.00 AUD
Regular price Sale price $1,099.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

The VIPER™ 185 is the ultimate multi-process welder for the DIY enthusiast. MIG, TIG or STICK, the VIPER™ does it all, and it’s ready to go anywhere you have a standard 10-amp outlet. Get repairs done and see your projects come together in record time with the ability to change modes with the flick of a switch.

The VIPER™ 185 is the perfect solution for those looking for insane performance without needing to blow your budget on multiple welders.


PK11054

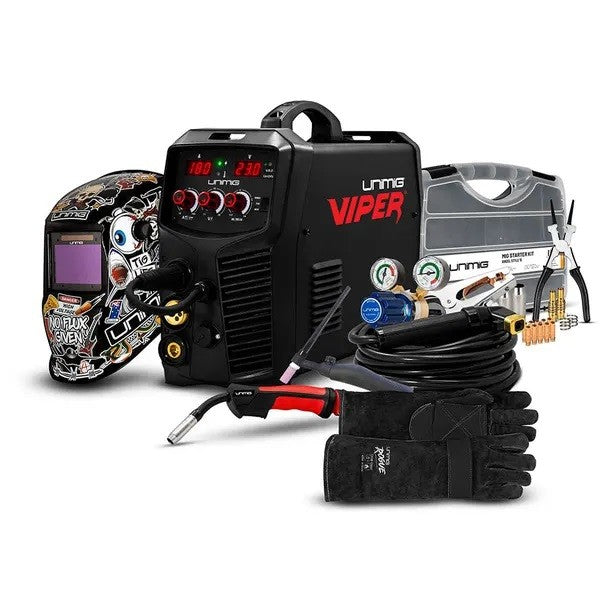

Bundle Contents:

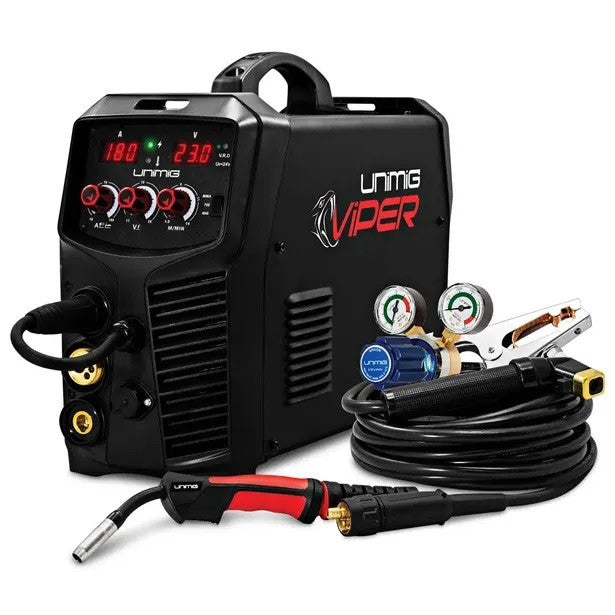

  • VIPER 185 MIG/TIG/STICK Welder (KUMJRVM185)

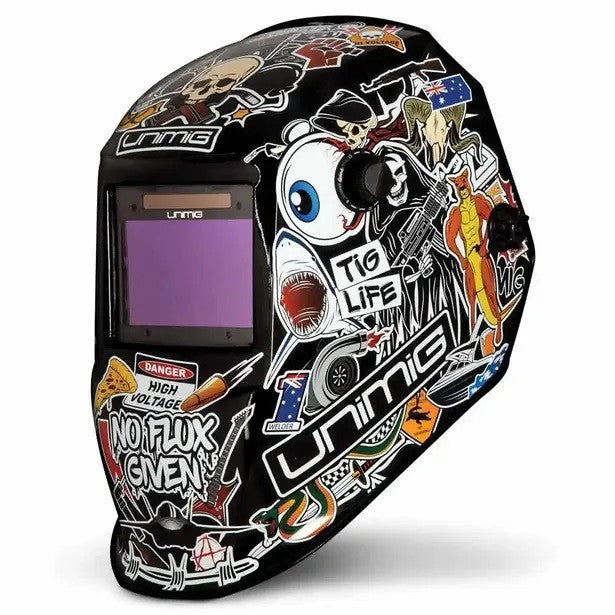

  • CHAOS Welding Helmet (UM-H-CHAOS)

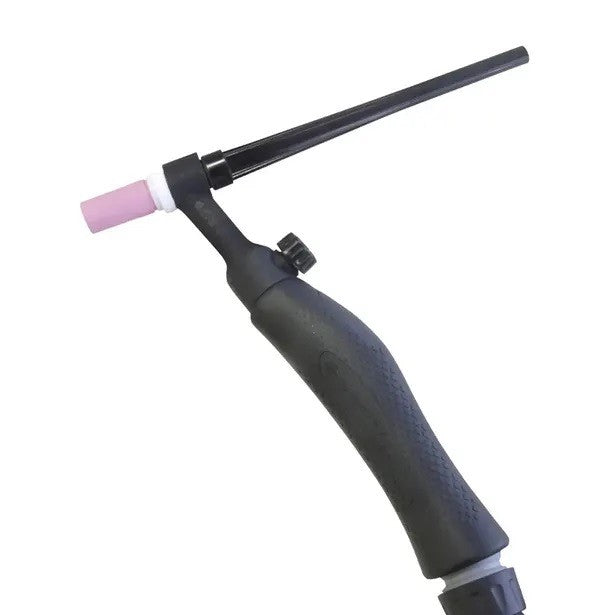

  • 17V TIG Torch (17V-4MCP50)

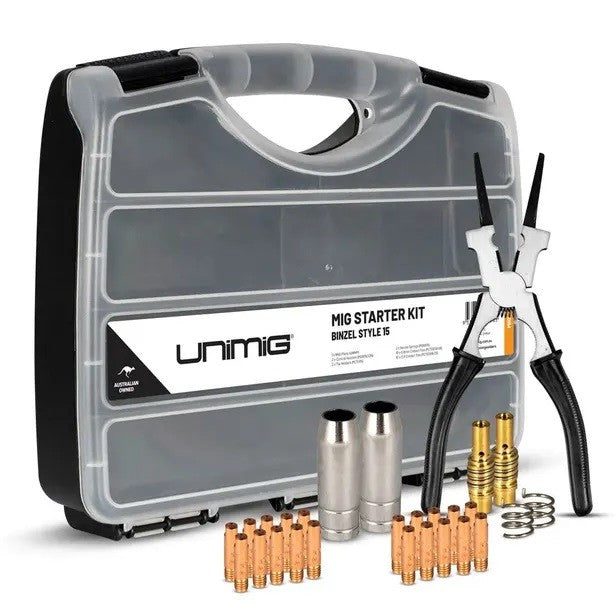

  • Binzel Style 15 Consumable Starter Kit (UMSK15)
  • ROGUE Heavy Duty Welding Gloves (UMWG8)





10 AMP PLUG

CONNECT TO ANY STANDARD OUTLET.

SPOOL GUN READY

FOR SOFTER WIRES, SUCH AS ALUMINIUM.

VOLTAGE REDUCTION DEVICE

PREVENTS VOLTAGE OVERLOADING, PROTECTING YOURSELF AND THE MACHINE.

GEARED WIRE DRIVE

FOR SMOOTHER WIRE FEEDING.

10 AMP PLUG



Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.



SPOOL GUN READY



This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire. The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller. The spool gun lets you quickly switch over to get the job done with no downtime.



MULTI-PROCESS WELDING



This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.



GEARED WIRE DRIVE



This machine features a geared roller drive unit, providing consistent and smooth wire feed. This also assists with using longer MIG Torches.



FEATURE VIDEO



Check out all the features on the VIPER 185 MIG/TIG/STICK Welder.



WELDING SETUP GUIDES



Need a hand setting up the VIPER 185? Check out our helpful welding guide covering:

Gas-shielded MIG Welding Setup
Gasless MIG Welding Setup
DC Lift Arc TIG Welding Setup
Stick Welding Setup
Spool Gun Setup



Product No: KUMJRVM185

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

RATED INPUT POWER (kVA)

7.1

Ieff (A)

9.8

RATED OUTPUT

30A/15.5V - 180A/23.0V

NO LOAD VOLTAGE (V)

62

PROTECTION CLASS

IP21S

INSULATION CLASS

F

POWER FACTOR

0.7

MINIMUM GENERATOR (kVA)

10.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

2

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

30-180A

MIG DUTY CYCLE @ 40°C

10% @ 180A

MIG WIRE SIZE RANGE

0.6-0.9mm

MIG WIRE SPOOL SIZE

1kg / 5kg

MIG WELDING THICKNESS RANGE

1-10mm

DRIVE ROLLER SIZE

30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

10-160A

TIG DUTY CYCLE @ 40°C

10% @ 160A

TIG WELDING THICKNESS RANGE

1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

10-160A

STICK DUTY CYCLE @ 40°C

10% @ 160A

STICK ELECTRODE RANGE

2.5-4.0mm

STICK WELDING THICKNESS RANGE

2-10mm

SIZE & WEIGHT

DIMENSIONS (mm)

553x214x388mm

WEIGHT (kg)

12.0kg

MACHINE FEATURES

WIRE DRIVE

Geared

VRD

Yes

SPOOL GUN CONNECTION

Yes

BURNBACK ADJUSTMENT

Yes

WIRE INCH

Yes

THERMAL OVERLOAD PROTECTION

Yes
