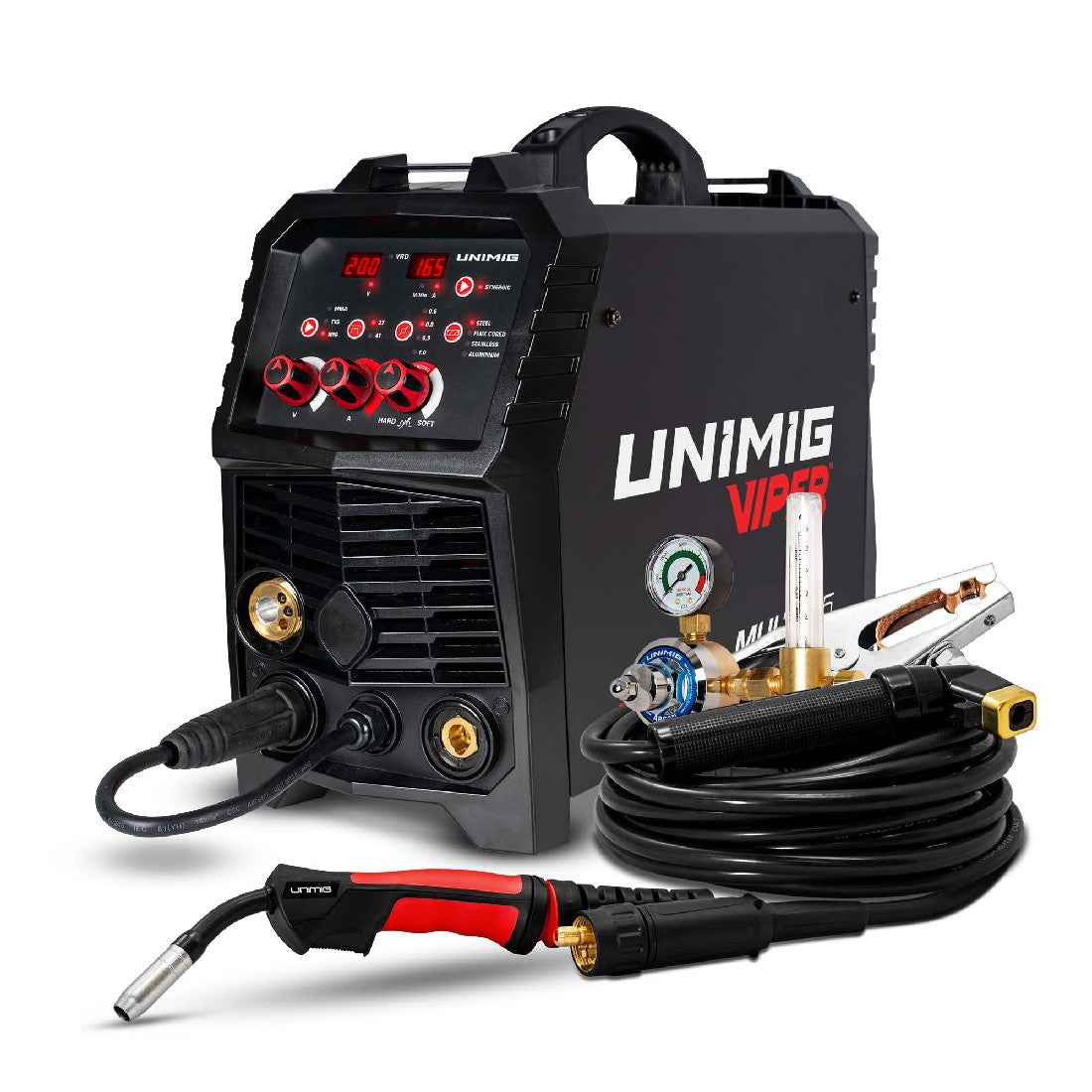

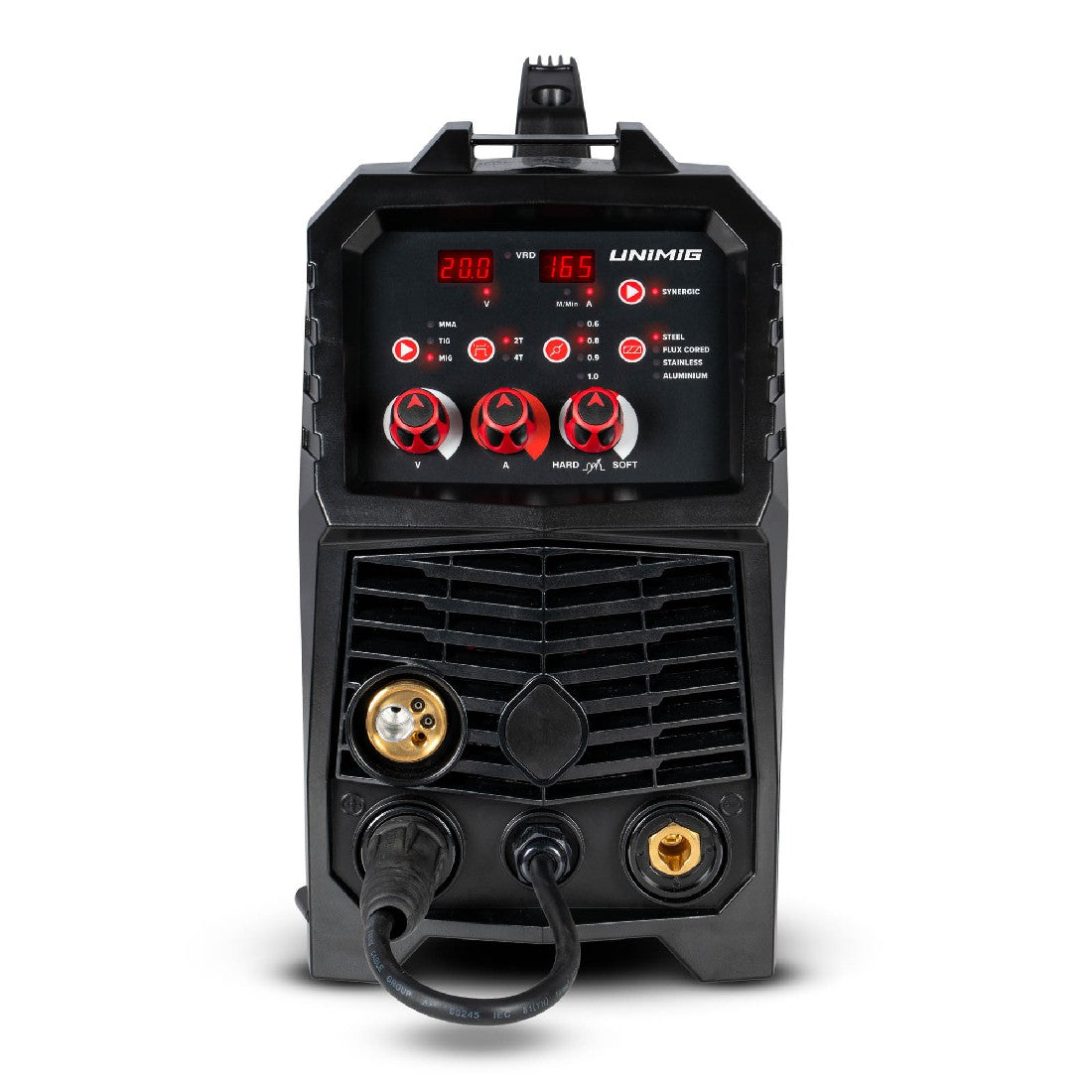

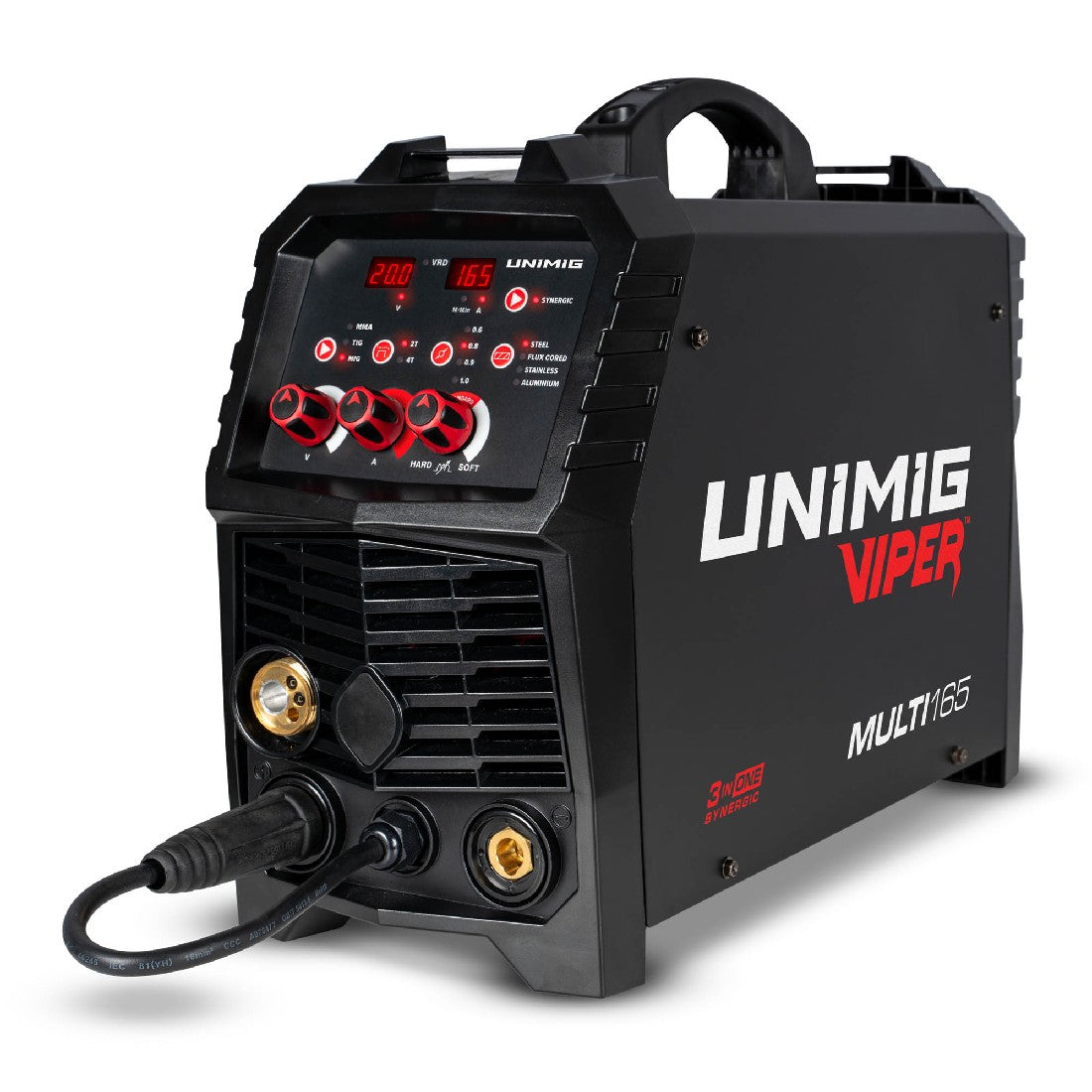

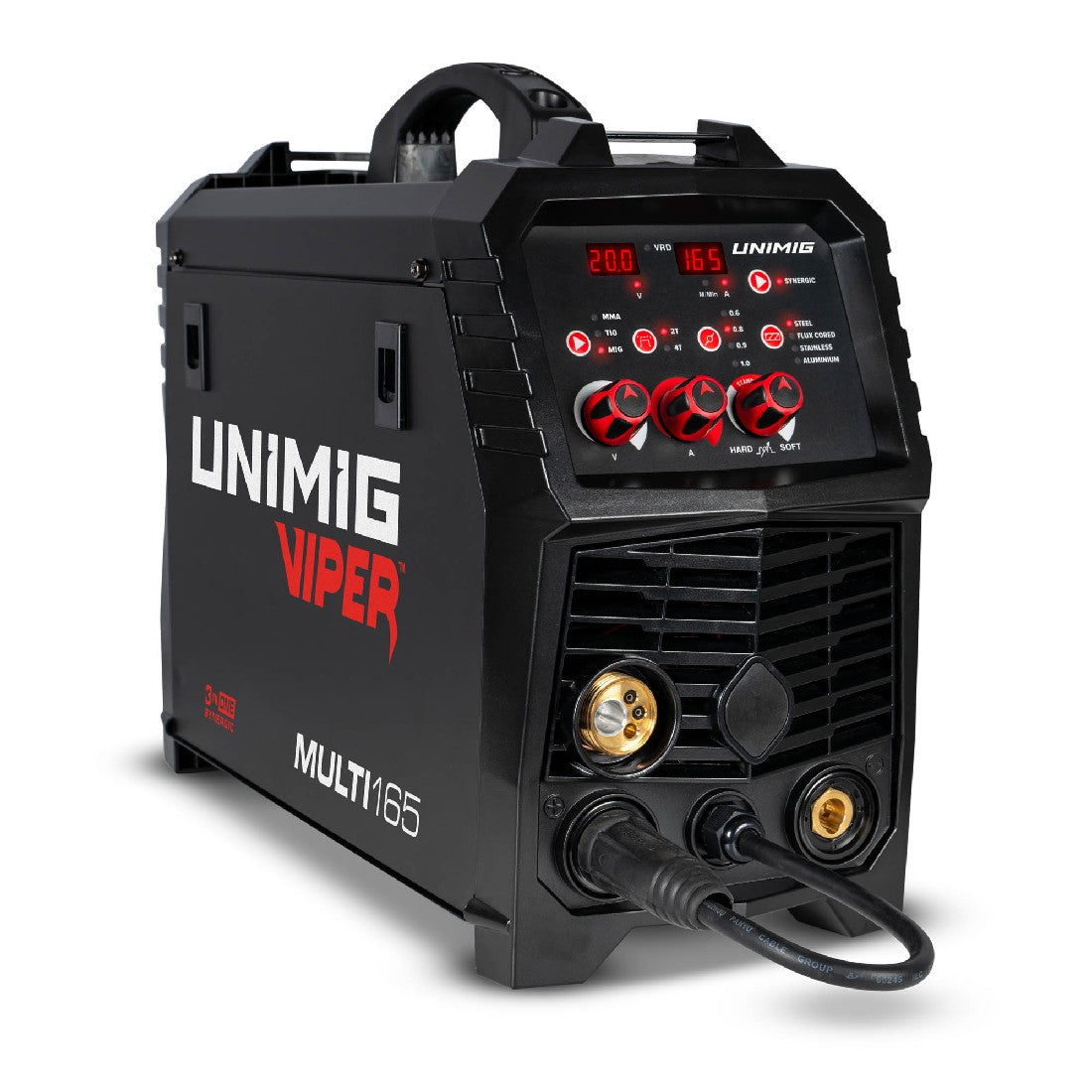

Unimig Viper Multi 165 Mig/stick/tig

Unimig Viper Multi 165 Mig/stick/tig

Regular price $729.00 AUD
Regular price Sale price $729.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Get greater control over your welds with the VIPER MULTI 165. This multi-process MIG, TIG and STICK machine comes ready with synergic programs, as well as a number of settings — like Inductance — that gives you complete control over your arc.

U11006K


Synergic MIG Control



The clever Synergic MIG control takes the guesswork out of your settings. Simply select your wire size and wire type,
and adjust your amperage to suit your work piece. The program works with mild steel, stainless steel, flux-cored and aluminium wires.



Gas & Gasless MIG



This machine supports both gas-shielded MIG and gasless MIG wire, meaning you can easily run mild steel, stainless steel & flux-cored MIG wire.



Multi-Process Welding



This three-in-one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is no need to swap between machines, saving you time and setup.



10 AMP Plug



Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.



Lightweight & Portable



Weighing just 9.8kg, the VIPER MULTI 165 is ready to go anywhere you need it.



Feature Video



Check out all the features on the VIPER MULTI 165 MIG/TIG/STICK Welder.



Product No: U11006K

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

10 AMP

Ieff (A)

10.0

RATED OUTPUT

30A/15.5V - 165A/22.3V

NO LOAD VOLTAGE (V)

64

PROTECTION CLASS

IP21S

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

9.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years)

2

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

30-165A

MIG DUTY CYCLE @ 40°C

10% @ 165A / 60% @ 68A / 100% @ 52A

MIG WIRE SIZE RANGE

0.6-1.0mm

MIG WIRE SPOOL SIZE

1kg / 5kg

MIG WELDING THICKNESS RANGE

1-8mm

DRIVE ROLLER SIZE

30/10

TIG SPECIFICATIONS

TIG FUNCTION TYPE

DC Lift Arc

TIG WELDING CURRENT RANGE

20-160A

TIG DUTY CYCLE @ 40°C

10% @ 160A / 60% @ 65A / 100% @ 50A

TIG WELDING THICKNESS RANGE

1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE

20-140A

STICK DUTY CYCLE @ 40°C

10% @ 140A / 60% @ 58A / 100% @ 45A

STICK ELECTRODE RANGE

2.5-3.2mm

STICK WELDING THICKNESS RANGE

2-8mm

SIZE & WEIGHT

DIMENSIONS (mm)

513x206x391mm

WEIGHT (kg)

9.8kg

MACHINE FEATURES

WIRE DRIVE

Standard

VRD

Yes

WIRE INCH

Yes

INDUCTANCE CONTROL

Yes

THERMAL OVERLOAD PROTECTION

Yes
