VIPER MULTI 180 Bundle

A powerful multi-process welder, the VIPER MULTI 180 is perfect for those wanting versatility, performance, and value in one machine

• Quick and easy setup with Smart-Set MIG programs
• DC Lift Arc Start TIG
• Spool Gun Ready
• Geared Wire Drive

Key Features

• Smart Fan - Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
• DC Lift Arc Start TIG - Lift Arc ignition allows the arc to be started easily in DC TIG by simply touching the tungsten to the workpiece and lifting it up to start the arc. This stops the tungsten tip sticking to the workpiece and breaking the tip from the tungsten electrode.
• Job Memory - The job memory function allows you to enter and store weld parameter settings. Weld parameters can be further adjusted and stored as required. A total of 9 Jobs can be memorised and stored for recall.
• Generator Compatible - Going off the grid? The VIPER MULTI 180 can be connected to a generator, we recommend one with at least 9kVA.
• IP21S Rating - Rated IP21S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray from a vertical direction.

MIG Features

• Synergic MIG - Setting up for a weld has never been easier with our preset synergic programs. Simply select your wire type, wire size and material thickness and you’re ready to weld!
• Spool Gun Ready - Make welding aluminium even easier. No need to change your existing setup. The spool gun lets you quickly switch over and get any job done with no downtime.
• Burnback Adjustment - Stop your wire from ever fusing with your weld or your contact tips again. Tune your burnback control to suit how much wire you want to remain sticking out from your torch when you finish a weld.
• Gas-Shielded & Gasless Wires - This machine supports both gas-shielded MIG and gasless MIG, meaning you can run mild steel, stainless steel, aluminium as well as flux-cored MIG wires.
• Inductance Control - Change the frequency of your short circuit MIG welds with the Inductance settings, so you can choose your preferred arc characteristics.
• Geared Wire Drive - This machine features a geared roller drive unit, providing consistent and smooth wire feed, and it helps when using longer MIG torches.

MMA Features

• Hot Start - The Hot Start feature gives a boost of current at the beginning of your weld, stabilising your ignition and eliminating any issues with striking an arc, especially on difficult electrodes.
• Arc Force - The Arc Force feature helps to keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.
• Anti Stick - The Anti Stick feature, which is always on, prevents your electrode from sticking to your workpiece. When the machine detects sticking, the current will drop significantly, so the electrode can be removed.

Technical Data

• Primary Input Voltage: 240V Single-Phase 50/60Hz
• Supply Plug: 10A
• Ieff (A): 8.9
• Imax (A): 28.8
• Rated Output: 20-180A
• No Load Voltage (V): 67.0
• Protection Class: IP21S
• Insulation Class: H
• Minimum Generator (kVA): 9
• Dinse Connector: 35/50
• Standard: AS 60974.1
• Welds (MIG): Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
• Welds (MMA): Mild Steel, Stainless Steel, Cast Iron
• Welds (TIG): Mild Steel, Stainless Steel, Copper, Silicon Bronze
• Warranty (Years): 3
• MIG Specifications

  • MIG Welding Current Range: 30-180A
  • MIG Duty Cycle @ 40°C: 10% @ 180A, 60% @ 75A, 100% @ 57A
  • MIG Wire Size Range: 0.6-1.0mm
  • MIG Wire Spool Size: 1kg (100mm) / 5kg (200mm)
  • MIG Welding Thickness Range: 1-8mm
  • Drive Roller Size: 30/22
• TIG Specifications

  • TIG Function Type: DC Lift Arc TIG
  • TIG Welding Current Range: 20-180A
  • TIG Duty Cycle @ 40°C: 10% @ 180A, 60% @ 75A, 100% @ 57A
  • TIG Welding Thickness Range: 1-6mm
• MMA Specifications

  • STICK Welding Current Range: 20-160A
  • STICK Duty Cycle @ 40°C: 10% @ 160A, 60% @ 65A, 100% @ 51A
  • STICK Electrode Range: 2.5-4.0mm
  • STICK Welding Thickness Range: 2-10mm
• Size & Weight

  • Dimensions (mm): 523x214x388mm
  • Weight (kg): 11.1kg

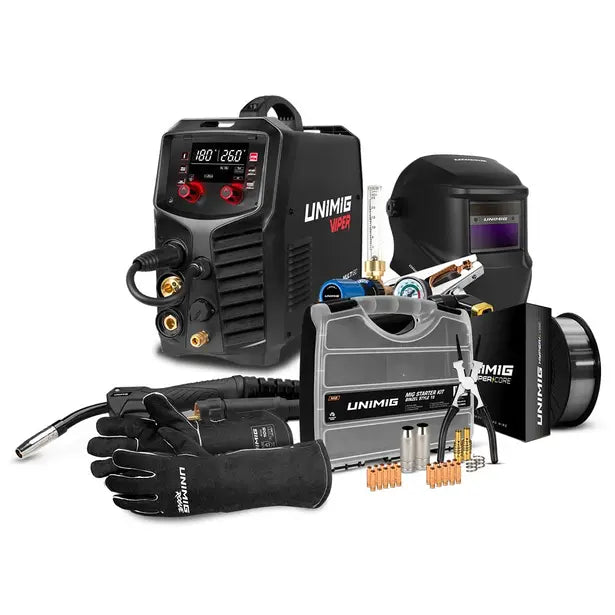

Includes

• VIPER MULTI 180 Welder (U11638)
• Welding Helmet Origin Series Black (U21033)
• Consumable Starter Kit Suit M15 (UMSK15)
• Hypercore T-11 Flux-Cored Self-Shielded Wire 0.9mm 5kg (U11681)
• Rogue Heavy Duty Welding Gloves (UMWG8)
